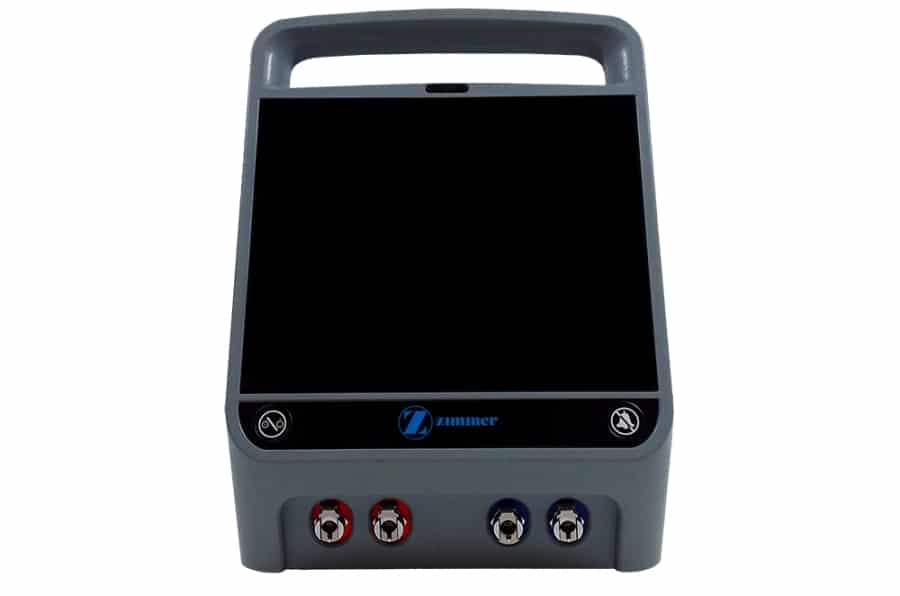

Zimmer ATS 4000 Tourniquet System – Refurbished

product ID VM-E25M88102

If you need the Zimmer ATS 4000 you don’t need to look any further. Give us a call or request a quote and let us help you.

ConditionRefurbished
Need Instant Advice? Talk to our experts 800-627-3215
Add to quote
SKU: VM-E25M88102 Category:

If you need the Zimmer ATS 4000 you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

Zimmer ATS 4000 Tourniquet System – Refurbished.  This tourniquet system includes dual ports and cuffs, providing versatility for various surgical needs. It features advanced microprocessor controls for precise pressure management, ensuring patient safety and reliable performance. The ATS 4000 comes fully refurbished and includes a 6-month warranty, offering excellent value and peace of mind.

In addition, the Zimmer ATS 4000 Tourniquet System features audible and visual alarms that activate when unsafe conditions are detected. It also performs a self-check calibration each time the system powers on, ensuring accuracy and consistent operation throughout procedures. This makes the ATS 4000 a trusted choice for surgical teams requiring dependable and efficient tourniquet control.

  • See tabs for more information, including detailed specifications and an information video to help you make an informed decision.

Are you looking for a specific Tourniquet System?  Click any of the following links to view our complete catalog of Tourniquet Units, Tourniquet Cuffs w/ Dual Ports, Tourniquet Cuffs w/Single Ports

Check out our Knowledge Center or our Blog to learn about Refurbished Medical Equipment, Tips and Tricks, and much more!

  • Personalized Pressure Technology

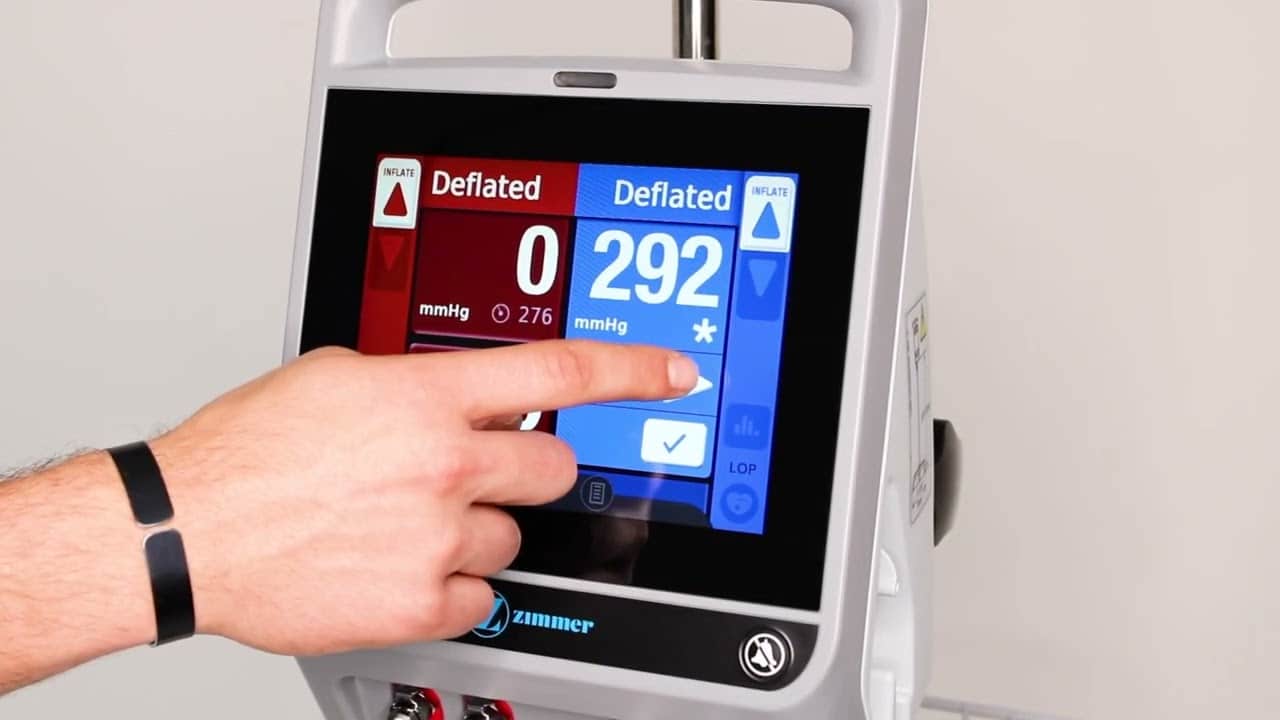

  • Touchscreen User Interface
  • 8.4″ Color Display
  • Self-check Calibration: automatically checks the accuracy of the machine calibration each time the unit is powered on. This saves setup time.
  • Cuff Alert: alerts user of cuff status when attempt is made to set the machine to stand-by.
  • Cuff Lockout: feature prompts the user to confirm the deflation command during bilateral or IVRA procedures in order to reduce complications due to sudden cuff deflation.
  • Six-hour Lithium Ion Battery Backup: maintains pressure if AC power is temporarily lost.
  • Color-Coded Cuffs: from 8 inches to 42 inches accommodate virtually all patients and limbs.

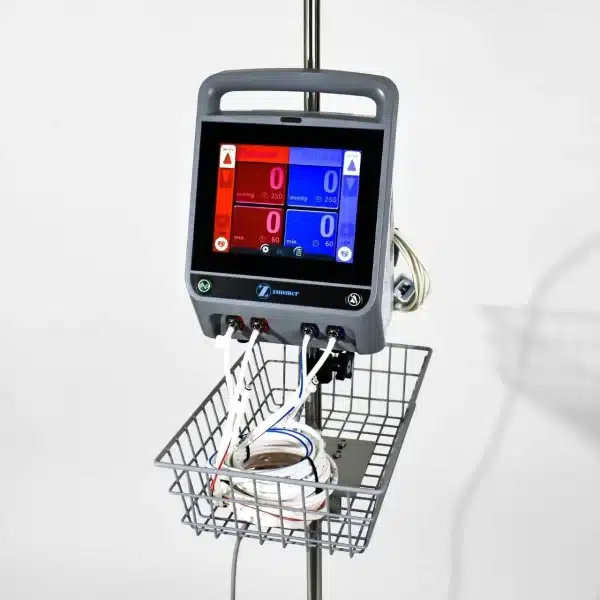

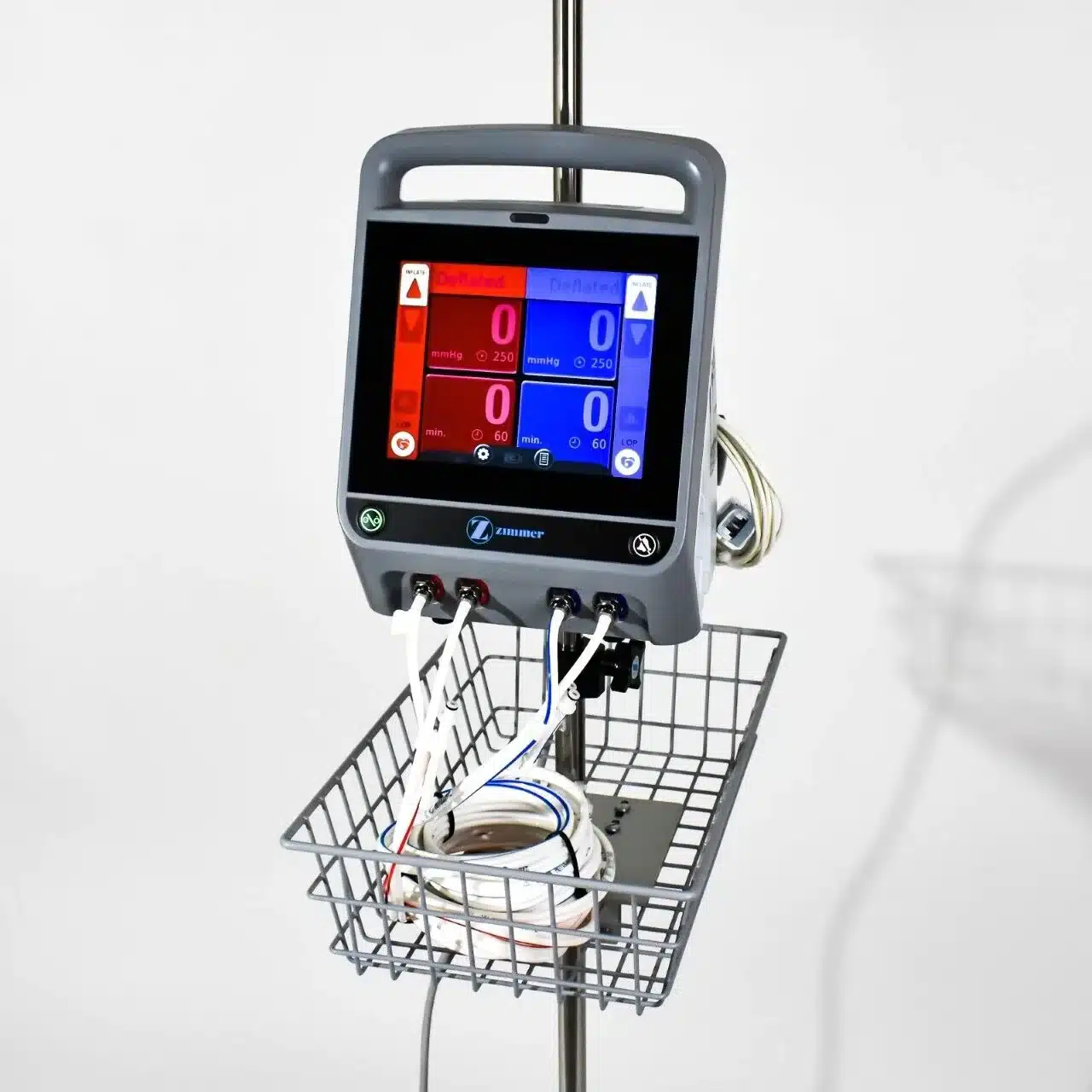

  • Carrying Handle: makes the system easy to transport, and includes pull-out hangers for storage of cuffs and hoses. The lightweight, portable unit can be mounted on an IV pole or placed on a table.
  • Innovative Limb Occlusion Pressure (LOP) feature
  • Uses ambient air
  • Uses electronic and microprocessor regulated pressure
  • Dual Port, Dual Cuff system: for simultaneous use of two dual port cuffs each with offering independent pressure and time regulation
  • Facilitates dual port, dual bladder cuff usage for IVRA/Bier Block procedures
  • Uses dedicated ports for supplying and measuring pressure which allows for fast and precise pressure regulations
  • Visual and audible alarms activated when an unsafe condition is detected
  • 6 Months Warranty
  • Completely Refurbished

Measurements:

  • Height:13.1 in (33.3 cm)
  • Width: 9.3 in (23.6 cm)
  • Depth: 10.5 in (26.7 cm)
  • weight: 13.2 lbs (6kg)

Timer:

  • Time Alarm Set Range: 1 – 240 minute; 1 minute increments
  • Timer Accuracy: 0.25% of elapsed time

Power:

  • Line Voltage Range: 100 – 240 VAC, 50/60 Hz, Auto Switching
  • Line Current: 1000 mA RMS @ 120 VAC
  • Input Power: 53 Watts Typical
  • Power Cord: Type SJT, AWG 16, 14 ft. (4.27 m)
  • Power Plug: Hospital grade, 3 prong straight blade, 15 Amp

Pressure:

  • Cuff Pressure Range: 50 – 400 mmHg, 1 mmHg increments
  • Extended Cuff Pressure Range: 401 – 600 mmHg, 1 mmHg increments. A yellow tile will appear requesting confirmation to exceed 400 mmHg pressure
  • Pressure Accuracy: ±3 mmHg (50 – 600 mmHg)
  • Pressure Regulation: ±4 mmHg of set point (10 second average under non-transient conditions without external leaks)
  • Maximum Pressures: 400 mmHg per cuff | 600 mmHg per cuff in extended range

Battery:

  • Battery Type: Rechargeable, 14.4 VDC, Li-Ion, 4.3 Amp hours
  • Battery Discharge Time: Unit will operate on battery power for 360 minutes minimum with fully charge batteries
  • Battery Recharge Time: 10 hours (Maximum). Unit should be plugged in 10 hours before initial use.

Zimmer ATS 4000 Brochure (click to view)

Click Here to View the Zimmer ATS 4000 Overview Video
