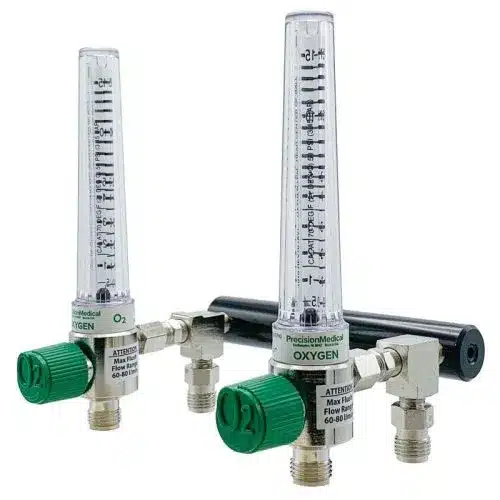

Precision Medical Chrome Flowmeter T Branch

product ID VM-E30M68103

If you need the Precision Medical Chrome Flowmeter T Branch you don’t need to look any further. Give us a call or request a quote and let us help you.

ConditionNew
Need Instant Advice? Talk to our experts 800-627-3215
Add to quote
SKU: VM-E30M68103 Category:

If you need the Precision Medical Chrome Flowmeter T Branch you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

The Precision Medical Chrome Flowmeter T Branch assembly expands medical gas delivery from a single wall outlet. It connects two chrome flowmeters for efficient clinical distribution. Built from lightweight aluminum, the assembly supports durability without added bulk. Moreover, the T Branch delivers oxygen or medical air to two separate care areas with consistent flow.

The optional power take-off can support advanced breathing equipment. Clinicians can connect ventilators or BiPAP machines directly to the demand valve. This makes setup faster and reduces the number of extra connections. The centered design lines up neatly with the wall outlet, and right or left offset options are also available for custom setups.

Finally, the T Branch Assembly integrates completely with Chrome flowmeters. The product line includes 1/8 inch NPT standard and offset options. Consequently, facilities match existing gas systems with ease. This flexible T Branch solution improves workflow and room efficiency. Overall, it delivers dependable performance for hospitals, clinics, and critical care environments.

The aluminum construction resists corrosion in tough clinical environments. Its compact design makes installation and maintenance easier. As needs grow, the T Branch can expand gas distribution without adding new outlets, helping facilities save costs and improve access to medical gases.

  • See tabs for more information.

Note: Click the following link to easily view additional Flowmeters in Venture Medicals’ Complete Catalog of Oxygen Flowmeters.

  • Highly accurate needle valves ensure precise flow-settings
  • Supply pressure of 50 psi
  • Air and oxygen models available
  • Green knob marked with “O2” for easy identification
  • Durable polycarbonate housing

1MFA Series – Oxygen

  • Model: 1MFA1XXX

    • Flow Range: 0–15 l/min

    • Graduations: 0.5 l/min (0–5), 1.0 l/min (5–15)

    • Accuracy:

      • 0–5 l/min ± 0.25 l/min

      • 6–15 l/min ± 0.50 l/min

  • Model: 1MFA11XX

    • Flow Range: 2–26 l/min

    • Graduations: 1 l/min

    • Accuracy:

      • 2–4 l/min ± 0.50 l/min

      • 5–26 l/min ± 10% of reading

  • Model: 1MFA3XXX

    • Flow Range: 0–3.5 l/min

    • Graduations:

      • 0.125 l/min (0–1)

      • 0.25 l/min (1–3.5)

    • Accuracy: 0–3.5 l/min ± 0.15 l/min

  • Model: 1MFA35XX

    • Flow Range: 0–5 l/min

    • Graduations: 0.25 l/min

    • Accuracy: 0–5 l/min ± 0.20 l/min

  • Model: 1MFA8XXX

    • Flow Range: 0–70 l/min

    • Graduations: 5 l/min

    • Accuracy: 0–70 l/min ± 10% of reading

    • 1MFA Series – Air

      • Model: 1MFA2XXX

        • Flow Range: 0–15 l/min

        • Graduations: 0.5 l/min (0–5), 1.0 l/min (5–15)

        • Accuracy:

          • 0–5 l/min ± 0.25 l/min

          • 6–15 l/min ± 0.50 l/min

      • Model: 1MFA9XXX

        • Flow Range: 0–70 l/min

        • Graduations: 5 l/min

        • Accuracy: 0–70 l/min ± 10% of reading

4MFA Series – Oxygen

  • Model: 4MFA1XXX

    • Flow Range: 0–1 l/min

    • Graduations: 0.1 l/min

    • Accuracy: 0–1 l/min ± 0.50 l/min

6MFA Series – Oxygen

  • Model: 6MFA1XXX

    • Flow Range: 0–200 cc

    • Graduations: 20 cc

    • Accuracy:

      • 0–100 cc ± 10 cc

      • 101–200 cc ± 14 cc
