Mindray Patient Monitors

Mindray Passport 12m Patient Monitor – Refurbished

product ID VM-E12M53116

If you need the Mindray Passport 12m Patient Monitor you don’t need to look any further. Give us a call or request a quote and let us help you.

ConditionRefurbished
Need Instant Advice? Talk to our experts 800-627-3215
Add to quote
SKU: VM-E12M53116 Category:

If you need the Mindray Passport 12m Patient Monitor you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

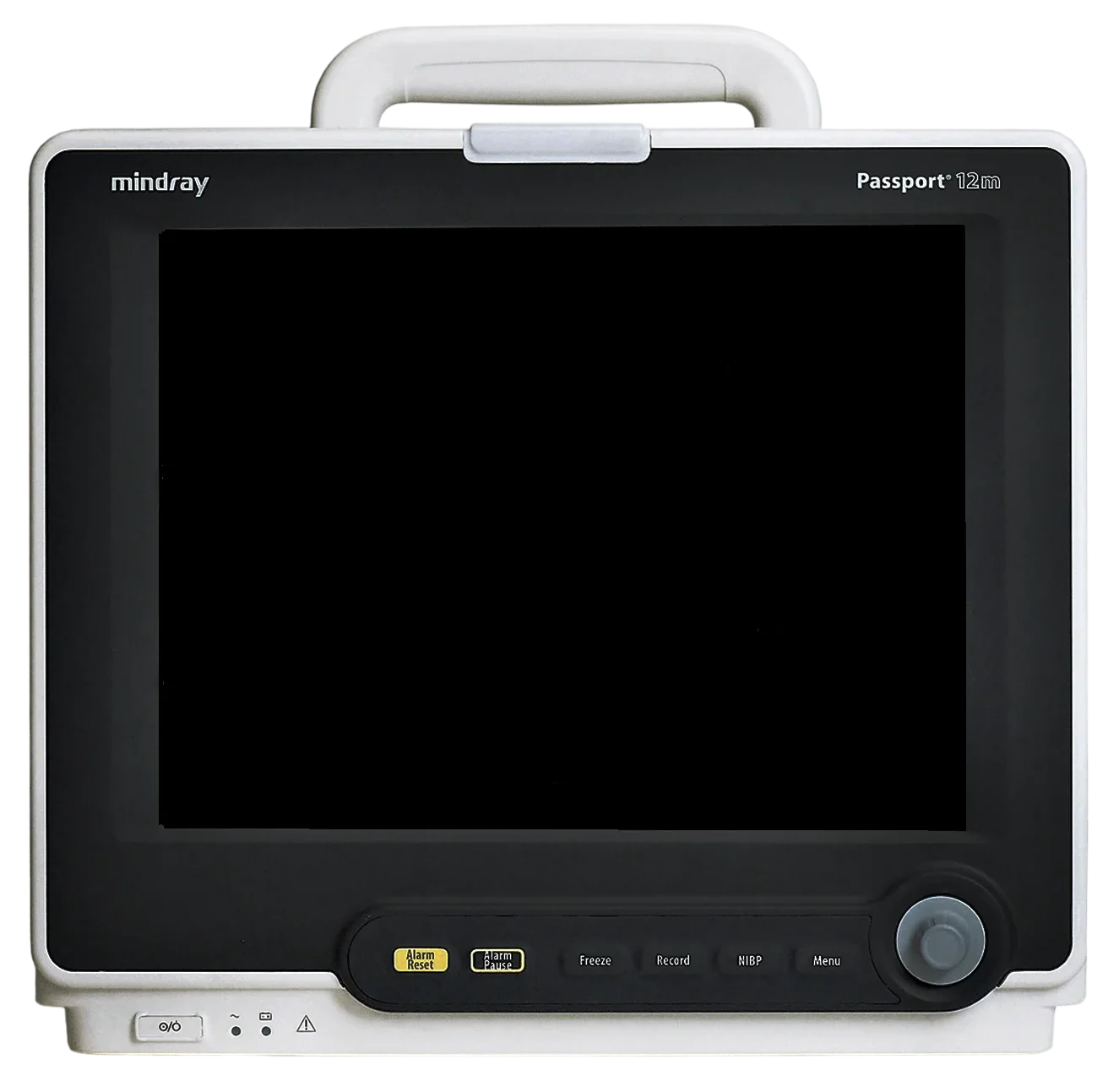

Mindray Passport 12m Patient Monitor- Refurbished.  The Passport 12m from the Passport monitor family combines clinical excellence with exceptional value. Designed for intermediate care settings, it delivers the precision and versatility needed for mid to high acuity environments. This refurbished monitor offers advanced features to support patient care and enhance clinical workflows.

The Passport 12m has a 12.1″ touchscreen for clear visibility and easy use. Quick-access menus and touch function keys make operation simple, letting healthcare professionals focus on patient care. With multiple trend features and straightforward controls, the Passport 12m boosts efficiency while reducing user effort.

The Passport 12m is designed to meet various clinical needs. It supports multi-lead arrhythmia analysis, 12-lead ECG interpretation, and up to 8 invasive blood pressures. Optional modules, such as multi-gas and BIS technologies, add extra capabilities. The monitor also connects easily with EMR systems, ensuring accurate data export and streamlining workflow in both in-patient and OR settings.

  • For further details, see the tabs for more information on the Passport 12m.

Are you looking for additional monitors and accessories?  Click the following link to view our complete catalog of PATIENT MONITORS FOR SALE | NEW, USED & REFURBISHED.

  • 12.1″ high-resolution touchscreen display.
  • Familiar intuitive interface across the Passport family.
  • Customizable screen views and quick keys for diverse patient and clinical settings.
  • Robust measurement set for intermediate to critical care environments.
  • Supports T1 Transport Monitor/Module as a multi-parameter module.
  • Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.

Dimensions

  • Height: 11.7 in (29.7 cm)
  • Width: 13.2 in (33.6 cm)
  • Depth: 7.4 in (18.7 cm)
  • Weight: 16.5 lbs (7.5 kg) (Without modules, batteries, accessories, and recorder)

Display

  • Type: Color TFT Display
  • Size (Diagonal): 12 in (30.5 cm)
  • Resolution: 800 x 600

Battery

  • Type: Rechargeable Lithium-ion
  • Voltage: 11.1 VDC
  • Capacity: 4500 mAh
  • Run Time (Average): About 330 minutes when powered by two new fully-charged batteries
  • Charge Time: Less than 6 hours to 100%

ECG

  • Lead Set: 3, 5, and 12-lead
  • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • Mindray Resolution: 1 bpm
  • Mindray Accuracy: ±1 bpm or ±1%, whichever is greater

Resp

  • Technique: Trans-thoracic impedance
  • Lead: Options are lead I and II
  • Measurement Range: Adult: 0 to 120 rpm; Pediatric/Neonate: 0 to 150 rpm
  • Resolution: 1 rpm
  • Accuracy: 7 to 150: ±2 rpm or ±2%, whichever is greater

Masimo SpO2

  • Measurement Range: 1 to 100%
  • Resolution: 1%
  • Response Time: = 20 s (PR 75 bpm, average time 8 s, SpO2 value rises from 60% to 95%)
  • Refreshing Rate: = 2 s
  • SpO2 Averaging Time: 2-4 s, 4-6 s, 8 s, 10 s, 12 s, 14 s, 16 s
  • Accuracy: 70 to 100%: ±2-3%

Nellcor SpO2

  • Measurement Range: 1 to 100%
  • Resolution: 1%
  • Response Time: = 30 s (PI > 0.3, no disturbance, SpO2 value sudden change within 70% – 100%)
  • Refreshing Rate: = 2 s
  • Accuracy: 70 to 100%: ±2-3%

NIBP

  • Technique: Oscillometry
  • Mode of Operation: Manual, Auto, and STAT
  • Heart Rate Range: 40 to 240 bpm
  • Resolution: 1 mmHg
  • Accuracy: Max mean error ±5 mmHg

Temp

  • Technique: Thermal resistance
  • Operating Mode: Direct mode
  • Measurement Range: 32 to 122°F (0 to 50 °C)
  • Resolution: 0.1 °C
  • Accuracy: ±0.1 °C or ±0.2 °F (without probe)

IBP

  • Measurement Range: -50 to 300 mmHg
  • Resolution: 1 mmHg
  • Accuracy: ±2% or ±1 mmHg, whichever is greater (without sensor)

Mindray Passport 12m Quick Reference Guide (click to view)
