Product Description:

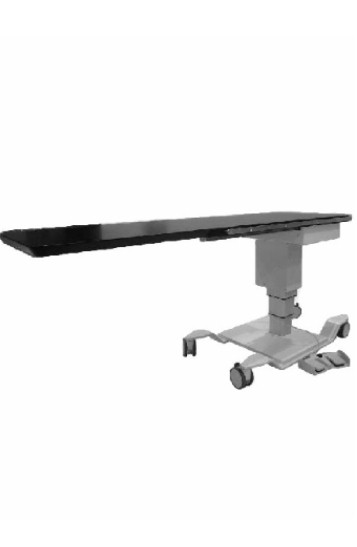

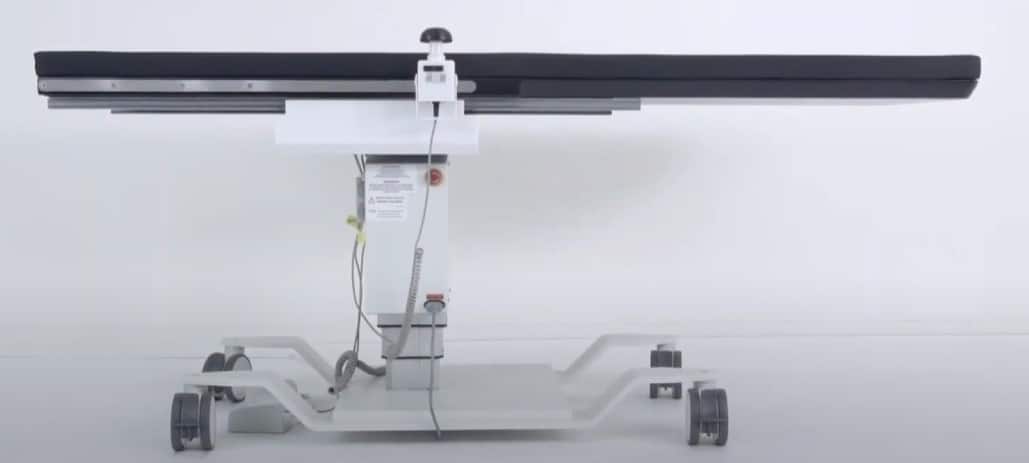

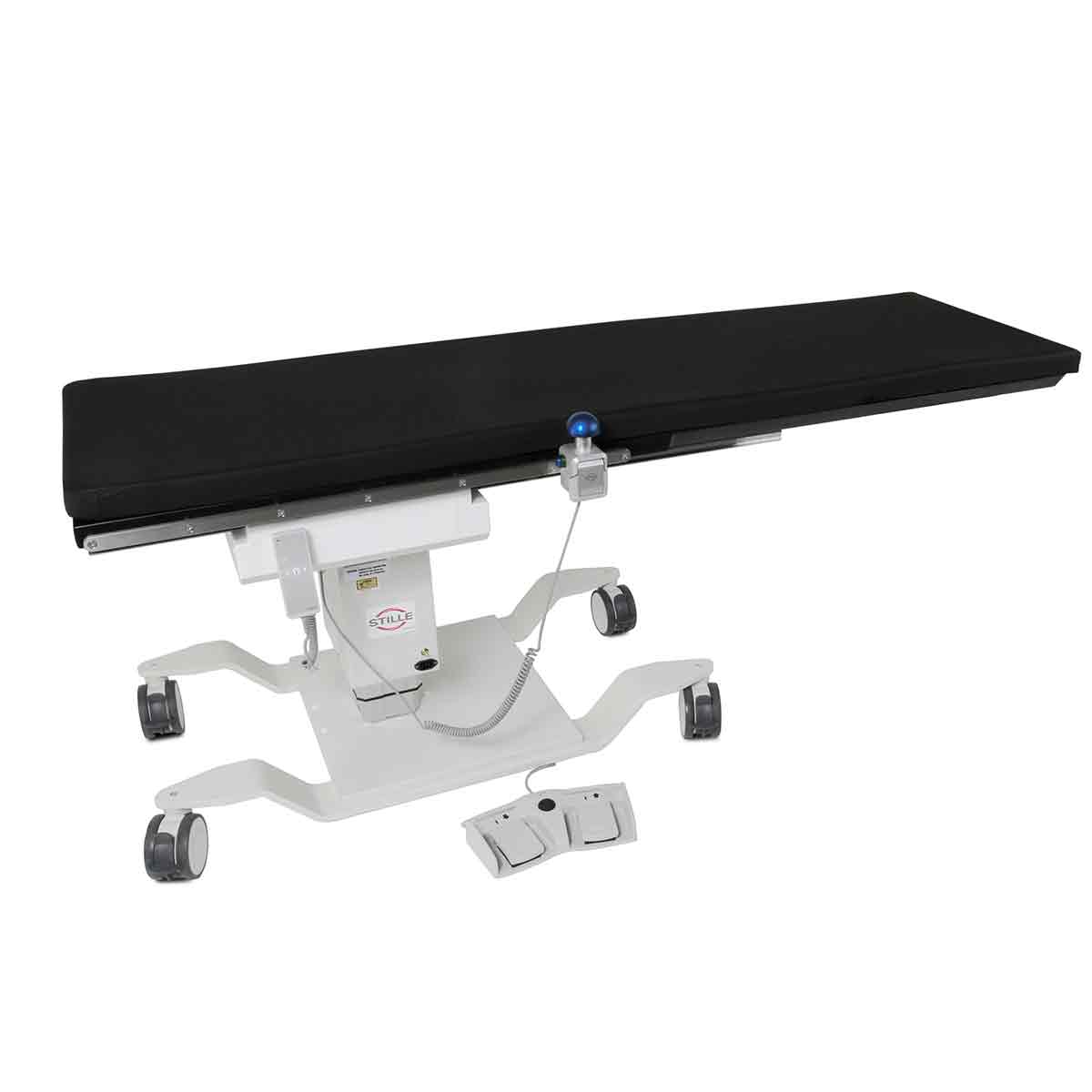

Medstone “Vascular” Mobile C-Arm Imaging Table w/4-way Floating Tabletop. The Arcoma Mobile Vascular Imaging Table has a Carbon Fiber Rectangular Table Top with Accessory Side Rails in the non-imaging area. It has a Patient weight capacity of 500 lbs. evenly distributed. Note: This table has been tested for four times patient loading weight.
Additional Arcoma Features: Comes with Patient Restraints, three body restraints, Removable Catheter Tray. The tabletop pad is 2″ thick, and the Radiolucent imaging free area measures 64″. The Arcoma Vascular Mobile Table has Longitudinal tabletop travel of 36″ and Lateral tabletop travel of 8″ ±4″. Motorized Table Elevation rated at 500 lbs – Standard Lift: 26.50″ minimum to 42.25″ maximum height.
Table Controls are Push Button (Mushroom) type four-way tabletop movement release control with safety interlock (Adjustable side rail mounted). Foot Control table elevation and four-way tabletop release control. Comes with Fistula arm board, 4″ Hospital Grade Wheels with individual locks, and Warranty. See tabs for more information.
- 4-way Floating Table Top
- Carbon Fiber Rectangular Table Top
- Accessory Side Rails in the non-imaging area
- Patient loading 500 lbs
- Patient Restraints, three body restraints
- Removable Catheter Tray
- Tabletop pad, 2″ thick
- Radiolucent imaging free area
- Longitudinal tabletop travel

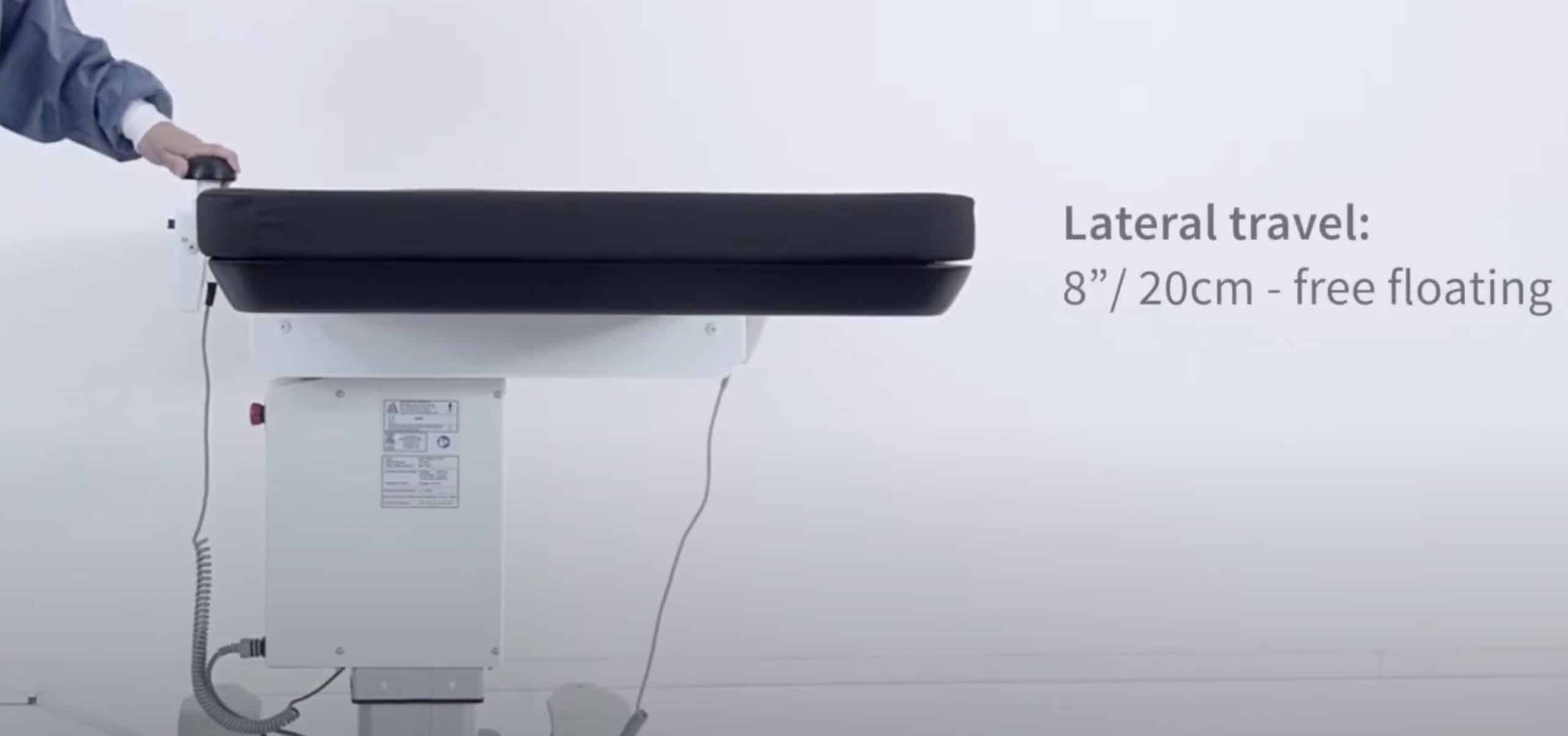

- Lateral Table Top Travel
- Motorized Table Elevation rated at 500lbs
- Table Controls Push Button (Mushroom) type four-way tabletop movement release control with safety interlock (Adjustable side rail mounted)
- Foot Control table elevation and four-way tabletop release control
- Fistula arm board
- Hospital Grade Wheels with individual locks
- Warranty
- Table Top: Carbon Fiber
- Accessory Side Rails: 2
- Weight Capacity: 500lbs
- Removable Catheter Tray: 24″ x 24″
- Padding: 2″ thick
- Radiolucent imaging free area: 64″
- Longitudinal tabletop travel: 36″
- Lateral Table Top Travel: 8″
- Motorized Table Elevation Rated: 500 lbs

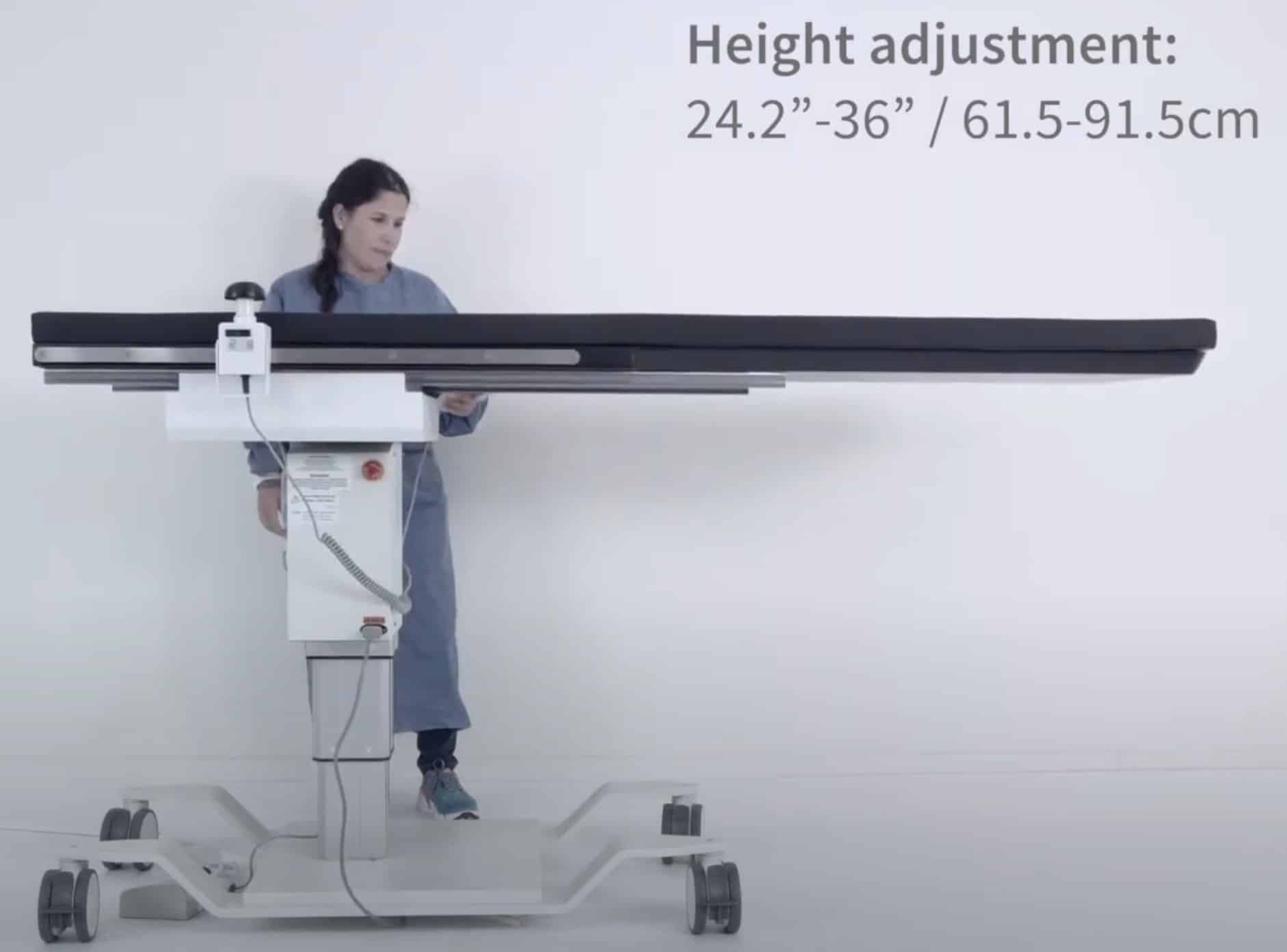

- Standard Lift: 26.50″ minimum to 42.25″ maximum height
- Table Controls Push Button (Mushroom) type four-way tabletop movement release control with safety interlock (adjustable side rail mounted)
- Wheels: 4″ Hospital grade with individual locks
- Warranty: 3 Year Parts, 2 Year Labor
Available Options Sold Separately:
- Removable Catheter Tray: 24″ x 36″
- 300mm Lift: 24.50″ minimum to 36.25″ maximum height
- Snap-on Patient Arm Board
- Slide-on Scatter Protection Shield
