One Patient, One Surface™ from admission to discharge!
Weight patients, Imaging, Procedure, Recline, and Transport with one chair!

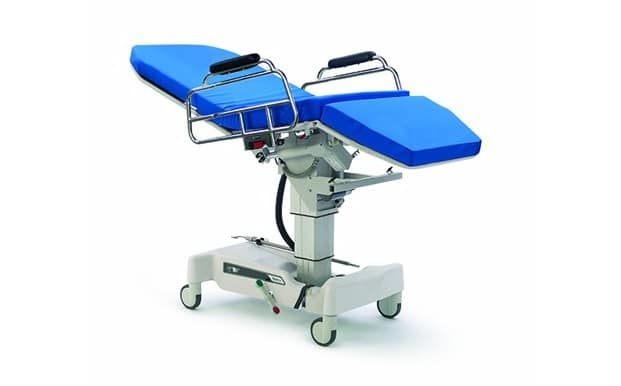

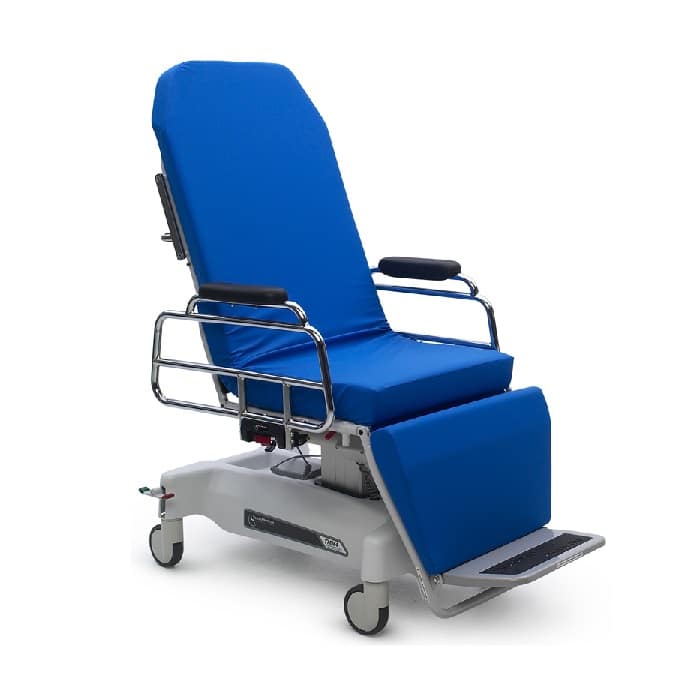

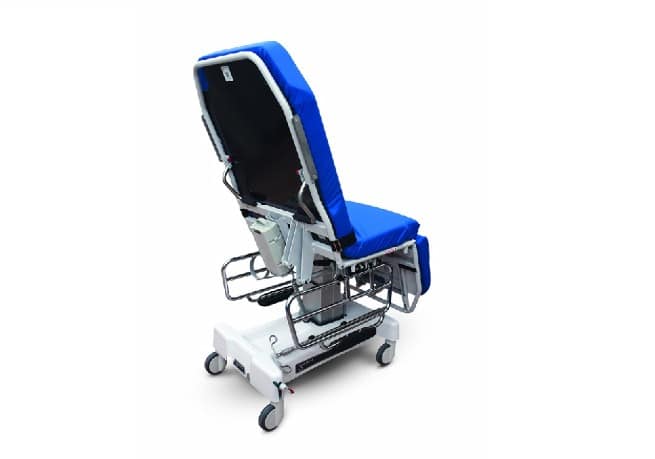

The TMM4 Multi-Purpose Stretcher-Chair with innovative powered patient positioning reduces the possibility of staff injury, decreases patient fall risk, and improves throughput. The TMM4’s back, leg, and height adjustments enable conversion from chair to stretcher with the push of a button. It’s a transport device, procedure chair, and stretcher all in one! It can be configured for departmental needs through a variety of options and accessories.
The TMM4 can be configured for departmental needs through a variety of options and accessories. The versatility of the TMM4 allows for utilization in many departments including Audiology, Bronchoscopy, Dialysis, Emergency/Triage, Endoscopy, ENT, ICU/CCU, Mammography, Outpatient Surgery, Pre-Op/PACU, Radiology, Transport, and Wound Care.
A small footprint can make a big impression! In the seated position, this stretcher chair requires half the space of a traditional stretcher and is easy to navigate through hallways, rooms, elevators, and other close quarters. Its small footprint allows more units to be available for patients as well as easier storage. The TMM4 can also positively impact your financial bottom line. Reducing or eliminating patient transfers, and revenue potential while decreasing the likelihood of incurring the costs associated with Staff injury and worker’s compensation claims. See tabs for more information. Call for pricing.
Standard TMM4 Features:
- 500 lb. Patient Weight Capacity
- Exceptional Powered Patient Positioning for safe patient handling
- Push-Button Pendant Control for smooth and safe operation
- Large Radiolucent Back Section for imaging procedures
- Auto-extending Footrest
- Memory Foam Cushions for enhanced patient comfort
- Swing-and-Tuck Side Rails for easier and safer patient ingress/egress
- Manual Quick Release Back
- Space-Saving Footprint
- Two Quick-Change Batteries and Wall-Mount Charger
- Max Patient Weight: 500 lbs.
- Seat Height, Low (to seat pan): 21″
- Seat Height, Low (to seat pan): 29″
- Cushion Height: 3.75″
- Patient Seat Width: 24″
- Patient Surface Length: 77″
- Overall Width: 30″
- Overall Chair Height, High: 62″
- Overall Chair Height, Low: 54″
- Backrest Articulation:0° – 75°
- Radiolucent Back, (width x height): 20″ x 25.5
- Trendelenburg: 5°
- Reverse Trendelenburg: 0°
- Side Rails, Height: 13″
- Side Rails, Length: 26″
- Charging System: Input Volts: 100-240VAC
- Current: 1.0A (Max)
- Frequency 50/60 HZ
- Max Power: 36.0W
- Cushion Flammability Rating: TB-117
Cushion colors may be selected at the time of order. To inquire about a particular color, please note the color name & number in the notes section of your quote request.
Sure-Chek Fusion: Blue Fusion cushions are standard on all TMM Series Stretcher-Chairs. Additional 4-Way Stretch colors are available for an up-charge.
Classic Vinyl Colors – Group A (Additional Fees Apply)
Ultra Vinyl Colors – Group C (Additional Fees Apply)
COLOR DISCLAIMER: Due to computer hardware limitations, a color representation may vary from actual material. Please request a sample before making your purchase.
Winco Transmotion Multi-Purpose Stretcher-Chair Brochure (click to view)
