• • 3 measurement modes (monitor, spot-check, triage)

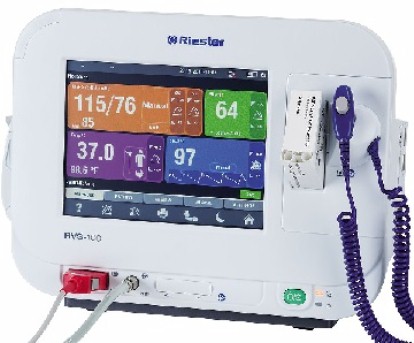

  • Highly sensitive 8 “TFT color touch screen with self-explanatory user interface and integrated help function
  • Display of SYS, DIA, MAP, pulse, temperature, plethysmogram
  • Clinically validated NIBP * module with mean calculation
  • Programmable NIBP mean calculation (2-5 measurements)
  • Riester, Masimo * or Nellcor * Oximax SpO2
  • Predictive thermometer (Filac 3000)
  • Connectivity with electronic patient record – according to HL7 standard

  <

li>LAN connectivity as standard

• Programmable alarms (audible, visible) with 3 different priority levels
• Connected to nurse call via RJ11 slot

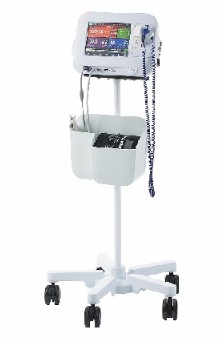

• Available as

a wall, table, or mobile device (on foot)
• Internal memory for 5,000 measurements
• Lithium-ion battery with up to 17 hours of operation

(* includes neonate measurement mode)

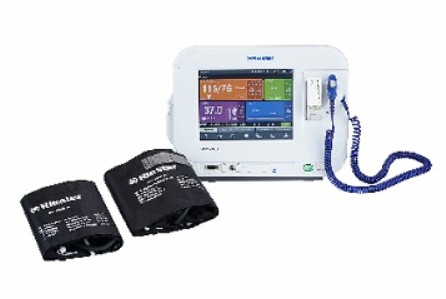

Accessories Included:

• NIBP extension hose
• 2 cuffs (adults & adults strong arms including connectors)
• SpO2 sensor adults
• SpO2 extension cable
• Thermometer probe oral/axillary *
• Probe covers thermometer *

(* only if the thermometer is ordered)

 Technical Specifications

Monitor:

• Power supply:  100 – 240 V AC, 50/60 Hz. Rechargeable battery: Rechargeable lithium-ion battery, 10.8 V DC, 6,600 mAh, charging time up to 100%: 6 hours, functional life approx. 11 hours (fully charged battery at 25 ° C) C ambient temperature at the measurement of SpO2, and NIBP temperature in the AUTO mode (15-minute interval)), an indicator for low battery level  and charge level indicator
• “bodytext”>Dimensions Monitor:  L x H x W: 303 x 230 x 110mm
• Weight:  3.60 kg including thermometer and printer
• class=”bodytext”>Dimensions Basket:  L x H x W: 270 x 225 x 200 mm
• ss=”bodytext”>Alarm:  LED (Yellow, Red, Blue, Green, Orange)
• Speaker: The speaker emits audible alarm sound, QRS tone pitch adjustable, volume adjustable alarm tones meet requirements according to IEC 60601-1-8
• Alarm volume: 45dB-85db. 1 m test distance to the acoustic signal

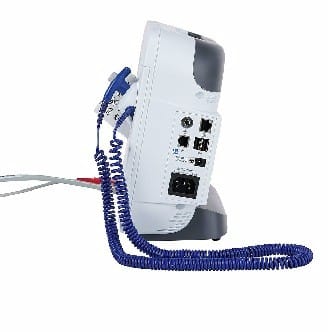

Connections: </strong>

• 1 x AC mains connection
• 1 x standard RJ45 slot. 100 BASE-TX, IEEE 802.3
• 4 x USB connector
• 1 x ground connector
• 1 x RJ11 connector for nurse
  call
• DC out output 15V / 1.2A
• Clinically validated NIBP (non-invasive blood pressure measurement)

Measuring method:

• Automatic, oscillometric
• Measuring range: Adult SYS 30 – 270 mmHg, DIA 10 – 220 mmHg, MAP 20 – 235 mmHg
• Measuring range:  Children SYS 30 – 235 mmHg, DIA 10 – 220 mmHg, MAP 20 – 225 mmHg
• Measuring range: Neonates SYS 30-135 mmHg, DIA 10-110 mmHg, MAP 20-125 mmHg

Display ranges

•  Cuff pressure :  0 – 280 mmHg
• Resolution:  1 mmHg
• Accuracy Blood pressure:  Static ± 3 mmHg
• Clinical ± 5 mmHg, standard deviation ≤ 8 mmHg
• Measuring range Pulse:  40 – 240 bpm
• Accuracy Pulse:  1 bpm
• Initial pressure when inflating:  Adults 160 mmHg, Children130 mmHg, Neonates 75 mmHg
• Double overpressure protection (hardware and software)
  Adults 297 ± 3 mmHg, children 252 ± 3 mmHg, neonates 147 ± 3 mmHg Alarm range
  :  SYS 0 – 300 mmHg
• DIA 0 – 300 mmHg
• MAP 0 – 300 mmHg

Riester SpO2 Measurement

• Range:  0 – 100%
• Resolution:  1%
• Accuracy: ± 2% (70 to 100%), ± 3% (40% to 69%)
• Unspecified (0% to 39%)
• Alarm range:  0 – 100%
• Average time:  4 sec, 8 sec, 16 sec

Pulse

• Measuring range:  20 – 250 bpm
• Resolution:  1 bpm
• Accuracy:  ± 1% or ± 1 bpm, whichever is greater

Nellcor SpO2

• Measuring range:  0-100%
• Resolution:  1%
• Accuracy:  70 – 100%: ± 2% (adults, children) 0 – 100%: ± 3 (neonates) Unspecified (0 – 69%)
• Alarm range:  0 – 100%
• Average time:  8 sec, 16 sec

Pulse

•  Measuring range:  20 – 300 bpm
• Resolution:  1 bpm
• Accuracy:  20 – 250 bpm: ± 3 bpm  251 – 300 bpm: unspecified

Masimo SpO2

• Measuring range:  0 – 100%
• Resolution:  1%
• Accuracy:  70 – 100%: ± 2% (adults, children, no exercise)
  70 – 100%: ± 3% (neonates, no exercise)  70 – 100%: ± 3% (Movement) 0 – 69%: unspecified
• Average time:  2 – 4 sec, 4 – 6 sec, 8 sec, 10 sec, 12 sec, 14 sec, 16 sec

Pulse

• Measurement range:  25 – 240 bpm
• Resolution:  1 bpm Accuracy:  ± 3 bpm (no motion) ± 5 bpm (motion)

Predictive thermometer

• Oral ( Fast Measuring Mode): Non-fever Temperature:  3-5 seconds, Fever Temperature:  8-10 seconds
• Oral (Standard Mode):  6-10 seconds
• Axillary Mode:  8-12 seconds
• Rectal Mode:  10-14 seconds
• Direct Mode (all measurement points):  60-120 seconds Accuracy:  35.5ºC – 42ºC (95.9 ° F – 107.6 ° F)
• Direct mode (all measurement points):  ± 0.1ºC (± 0.2ºF)
• Standard Predictive mode (all measurement points):  ± 0.1ºC (± 0.2ºF)
• Fast Measuring Mode (Oral Only):  ± 0.3ºC (± 0.5ºF)

Available Options Sold Separately:

• Thermal printer (integrated into the housing)
• Barcode scanner
• Foot with a basket for storage of eg cuffs, sensors, cables
• WIRELESS INTERNET ACCESS
