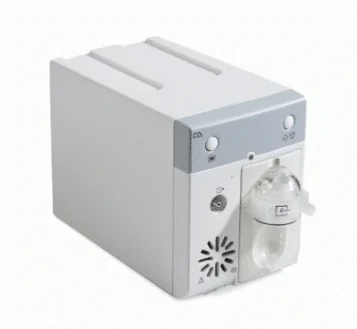

Passport 12m Co2 Module, Venture Medical Requip.
Mindray Patient Monitors
Venture Logo

Mindray Passport 12m Patient Monitor w/ Co2 – Refurbished

product ID VM-E12M53115

The Refurbished Mindray Passport 12m Patient Monitor w/ Co2 features a 12.1-inch high-resolution touchscreen and a modular design for expanded monitoring capabilities. This high-performance unit provides advanced parameters including ECG, SpO2, and NIBP, making it a versatile solution for high-acuity bedside care and patient transport.

ConditionRefurbished
Need Instant Advice? Talk to our experts 800-627-3215
Add to quote
SKU: VM-E12M53115 Category:

The Refurbished Mindray Passport 12m Patient Monitor w/ Co2 features a 12.1-inch high-resolution touchscreen and a modular design for expanded monitoring capabilities. This high-performance unit provides advanced parameters including ECG, SpO2, and NIBP, making it a versatile solution for high-acuity bedside care and patient transport.

Product Description:

Mindray Passport 12m Patient Monitor w/ Co2 – Refurbished. The refurbished Mindray Passport 12m combines clinical accuracy with flexibility, making it ideal for mid to high-acuity care settings. Featuring an integrated CO₂ module, it enables continuous capnography monitoring for enhanced respiratory assessment. Its 12.1-inch touchscreen display offers clear visualization and intuitive control. Quick-access menus and touch keys simplify operation, helping clinicians maintain focus on patient care during critical situations.

This flexible monitor can also add extra modules like BIS and gas monitoring. The Passport 12m is made to work well in many care areas, including step-down units, ICUs, and operating rooms.

Built for demanding clinical workflows, the Passport 12m enhances efficiency while reducing cognitive load for users. It provides reliable, real-time data to support informed decision-making. Seamless data export improves documentation and supports hospital-wide connectivity. With its proven performance, integrated CO₂ monitoring, and modular expansion options, the Passport 12m is a smart, cost-effective solution. It delivers the performance of a premium monitor while maintaining exceptional value in any care setting.

  • For further details, see the tabs for more information on the Passport 12m w/ Co2.

Are you looking for additional monitors and accessories?  Click the following link to view our complete catalog of PATIENT MONITORS FOR SALE | NEW, USED & REFURBISHED.

Additional information

Brand

Condition

  • 12.1″ high-resolution touchscreen display.
  • Familiar intuitive interface across the Passport family.
  • Customizable screen views and quick keys for diverse patient and clinical settings.
  • Robust measurement set for intermediate to critical care environments.
  • Supports T1 Transport Monitor/Module as a multi-parameter module.
  • Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.

Dimensions

  • Height: 11.7 in (29.7 cm)
  • Width: 13.2 in (33.6 cm)
  • Depth: 7.4 in (18.7 cm)
  • Weight: 16.5 lbs (7.5 kg) (Without modules, batteries, accessories, and recorder)

Display

  • Type: Color TFT Display
  • Size (Diagonal): 12 in (30.5 cm)
  • Resolution: 800 x 600

Battery

  • Type: Rechargeable Lithium-ion
  • Voltage: 11.1 VDC
  • Capacity: 4500 mAh
  • Run Time (Average): About 330 minutes when powered by two new fully-charged batteries
  • Charge Time: Less than 6 hours to 100%

ECG

  • Lead Set: 3, 5, and 12-lead
  • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • Mindray Resolution: 1 bpm
  • Mindray Accuracy: ±1 bpm or ±1%, whichever is greater

Resp

  • Technique: Trans-thoracic impedance
  • Lead: Options are lead I and II
  • Measurement Range: Adult: 0 to 120 rpm; Pediatric/Neonate: 0 to 150 rpm
  • Resolution: 1 rpm
  • Accuracy: 7 to 150: ±2 rpm or ±2%, whichever is greater

Masimo SpO2

  • Measurement Range: 1 to 100%
  • Resolution: 1%
  • Response Time: = 20 s (PR 75 bpm, average time 8 s, SpO2 value rises from 60% to 95%)
  • Refreshing Rate: = 2 s
  • SpO2 Averaging Time: 2-4 s, 4-6 s, 8 s, 10 s, 12 s, 14 s, 16 s
  • Accuracy: 70 to 100%: ±2-3%

Nellcor SpO2

  • Measurement Range: 1 to 100%
  • Resolution: 1%
  • Response Time: = 30 s (PI > 0.3, no disturbance, SpO2 value sudden change within 70% – 100%)
  • Refreshing Rate: = 2 s
  • Accuracy: 70 to 100%: ±2-3%

NIBP

  • Technique: Oscillometry
  • Mode of Operation: Manual, Auto, and STAT
  • Heart Rate Range: 40 to 240 bpm
  • Resolution: 1 mmHg
  • Accuracy: Max mean error ±5 mmHg

Temp

  • Technique: Thermal resistance
  • Operating Mode: Direct mode
  • Measurement Range: 32 to 122°F (0 to 50 °C)
  • Resolution: 0.1 °C
  • Accuracy: ±0.1 °C or ±0.2 °F (without probe)

IBP

  • Measurement Range: -50 to 300 mmHg
  • Resolution: 1 mmHg
  • Accuracy: ±2% or ±1 mmHg, whichever is greater (without sensor)

Mindray Passport 12m Quick Reference Guide (click to view)

Mindray Passport 12m Operator’s Manual (click to view)
