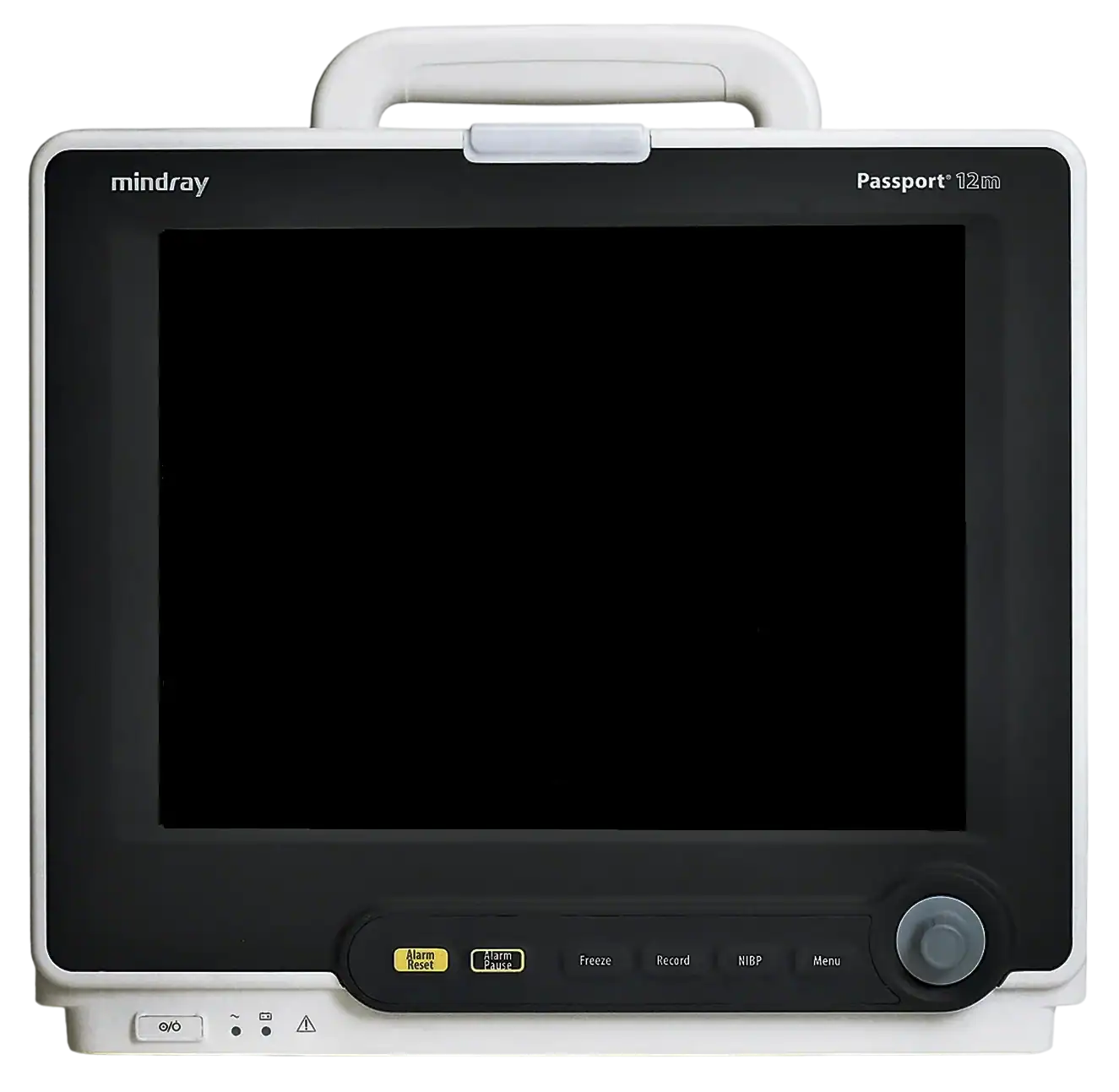

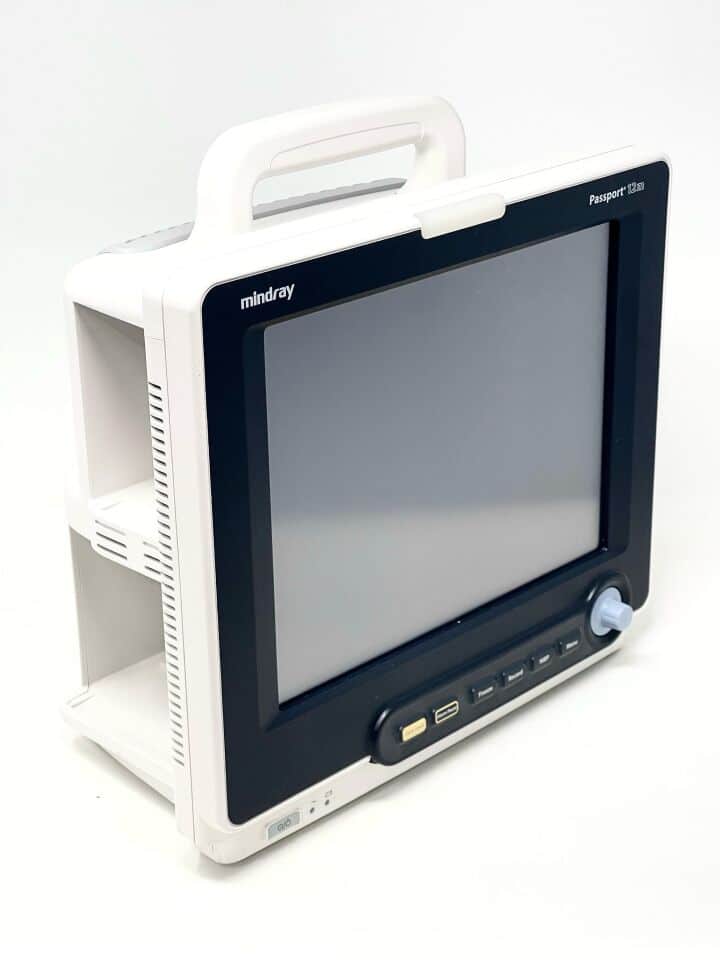

Mindray Passport 12m Patient Monitor - Refurbished

Description

Mindray Passport 12m Patient Monitor- Refurbished. The Passport 12m from the Passport monitor family combines clinical excellence with exceptional value. Designed for intermediate care settings, it delivers the precision and versatility needed for mid to high acuity environments. This refurbished monitor offers advanced features to support patient care and enhance clinical workflows.

The Passport 12m has a 12.1″ touchscreen for clear visibility and easy use. Quick-access menus and touch function keys make operation simple, letting healthcare professionals focus on patient care. With multiple trend features and straightforward controls, the Passport 12m boosts efficiency while reducing user effort.

The Passport 12m is designed to meet various clinical needs. It supports multi-lead arrhythmia analysis, 12-lead ECG interpretation, and up to 8 invasive blood pressures. Optional modules, such as multi-gas and BIS technologies, add extra capabilities. The monitor also connects easily with EMR systems, ensuring accurate data export and streamlining workflow in both in-patient and OR settings.

For further details, see the tabs for more information on the Passport 12m.

Are you looking for additional monitors and accessories? Click the following link to view our complete catalog of PATIENT MONITORS FOR SALE | NEW, USED & REFURBISHED.

Additional information

Brand	Mindray
Condition	Refurbished

12.1″ high-resolution touchscreen display.
Familiar intuitive interface across the Passport family.
Customizable screen views and quick keys for diverse patient and clinical settings.
Robust measurement set for intermediate to critical care environments.
Supports T1 Transport Monitor/Module as a multi-parameter module.
Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.

Dimensions

Height: 11.7 in (29.7 cm)
Width: 13.2 in (33.6 cm)
Depth: 7.4 in (18.7 cm)
Weight: 16.5 lbs (7.5 kg) (Without modules, batteries, accessories, and recorder)

Display

Type: Color TFT Display
Size (Diagonal): 12 in (30.5 cm)
Resolution: 800 x 600

Battery

Type: Rechargeable Lithium-ion
Voltage: 11.1 VDC
Capacity: 4500 mAh
Run Time (Average): About 330 minutes when powered by two new fully-charged batteries
Charge Time: Less than 6 hours to 100%

ECG

Lead Set: 3, 5, and 12-lead
Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
Mindray Resolution: 1 bpm
Mindray Accuracy: ±1 bpm or ±1%, whichever is greater

Resp

Technique: Trans-thoracic impedance
Lead: Options are lead I and II
Measurement Range: Adult: 0 to 120 rpm; Pediatric/Neonate: 0 to 150 rpm
Resolution: 1 rpm
Accuracy: 7 to 150: ±2 rpm or ±2%, whichever is greater

Masimo SpO2

Measurement Range: 1 to 100%
Resolution: 1%
Response Time: = 20 s (PR 75 bpm, average time 8 s, SpO2 value rises from 60% to 95%)
Refreshing Rate: = 2 s
SpO2 Averaging Time: 2-4 s, 4-6 s, 8 s, 10 s, 12 s, 14 s, 16 s
Accuracy: 70 to 100%: ±2-3%

Nellcor SpO2

Measurement Range: 1 to 100%
Resolution: 1%
Response Time: = 30 s (PI > 0.3, no disturbance, SpO2 value sudden change within 70% – 100%)
Refreshing Rate: = 2 s
Accuracy: 70 to 100%: ±2-3%

NIBP

Technique: Oscillometry
Mode of Operation: Manual, Auto, and STAT
Heart Rate Range: 40 to 240 bpm
Resolution: 1 mmHg
Accuracy: Max mean error ±5 mmHg

Temp

Technique: Thermal resistance
Operating Mode: Direct mode
Measurement Range: 32 to 122°F (0 to 50 °C)
Resolution: 0.1 °C
Accuracy: ±0.1 °C or ±0.2 °F (without probe)

IBP

Measurement Range: -50 to 300 mmHg
Resolution: 1 mmHg
Accuracy: ±2% or ±1 mmHg, whichever is greater (without sensor)

Mindray Passport 12m Quick Reference Guide (click to view)
