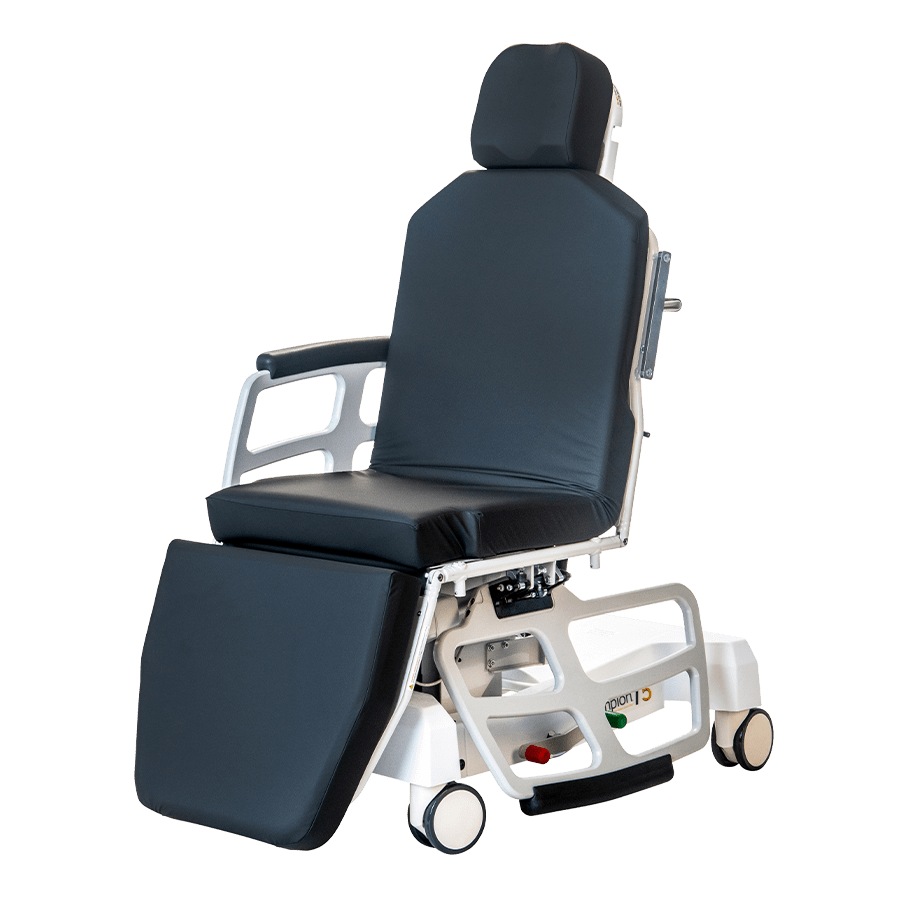

Champion T5 Procedure Chair

product ID VM-E15M96114

The Champion T5 is a high-performance, motorized procedure chair designed for clinical efficiency. It features a 500 lb weight capacity, power height and back adjustments, and a fold-away side arm for seamless patient entry. Its durable construction and ergonomic design make it ideal for specialized medical procedures.

ConditionNew
Need Instant Advice? Talk to our experts 800-627-3215
SKU: VM-E15M96114 Categories: ,

The Champion T5 is a high-performance, motorized procedure chair designed for clinical efficiency. It features a 500 lb weight capacity, power height and back adjustments, and a fold-away side arm for seamless patient entry. Its durable construction and ergonomic design make it ideal for specialized medical procedures.

Product Description:

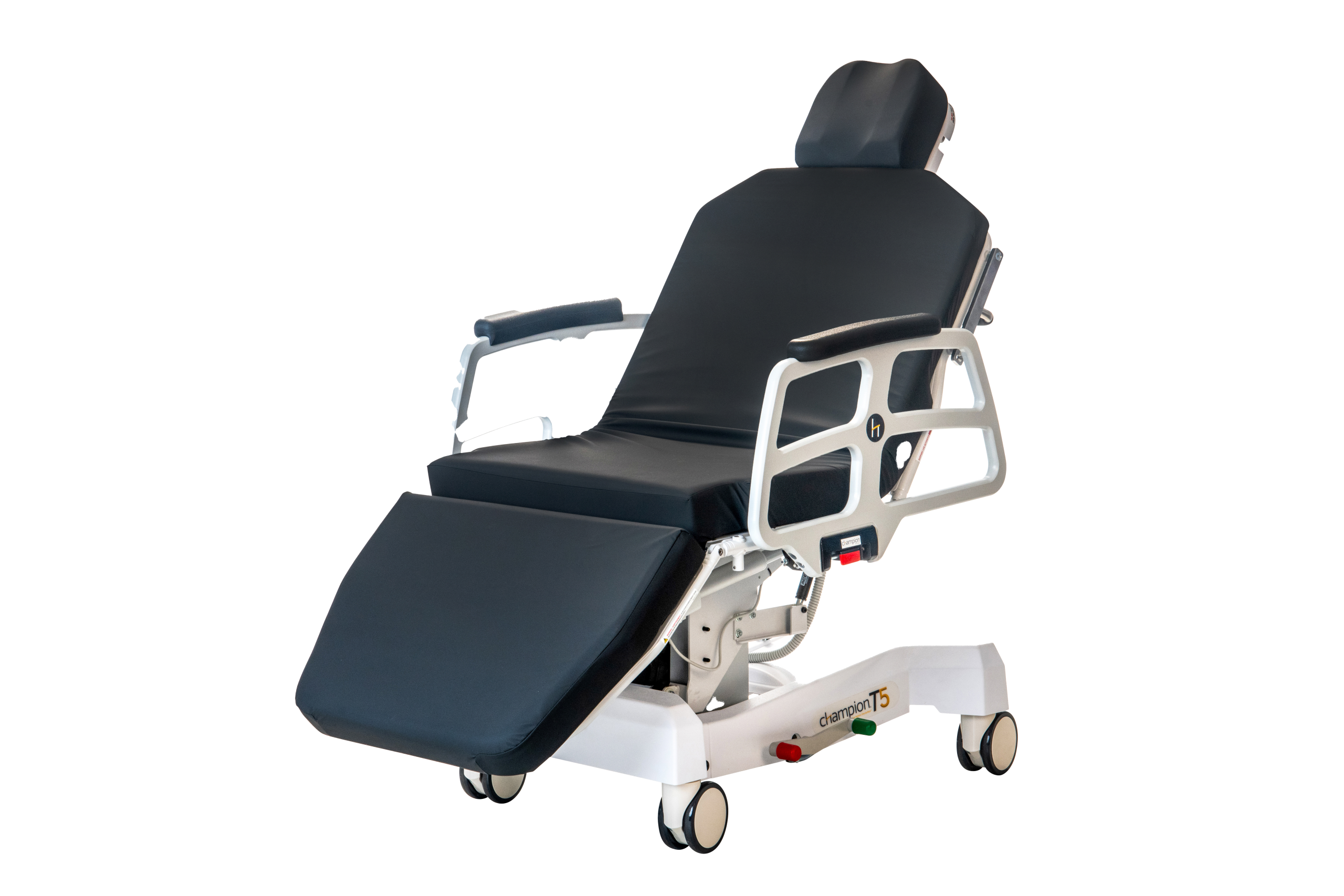

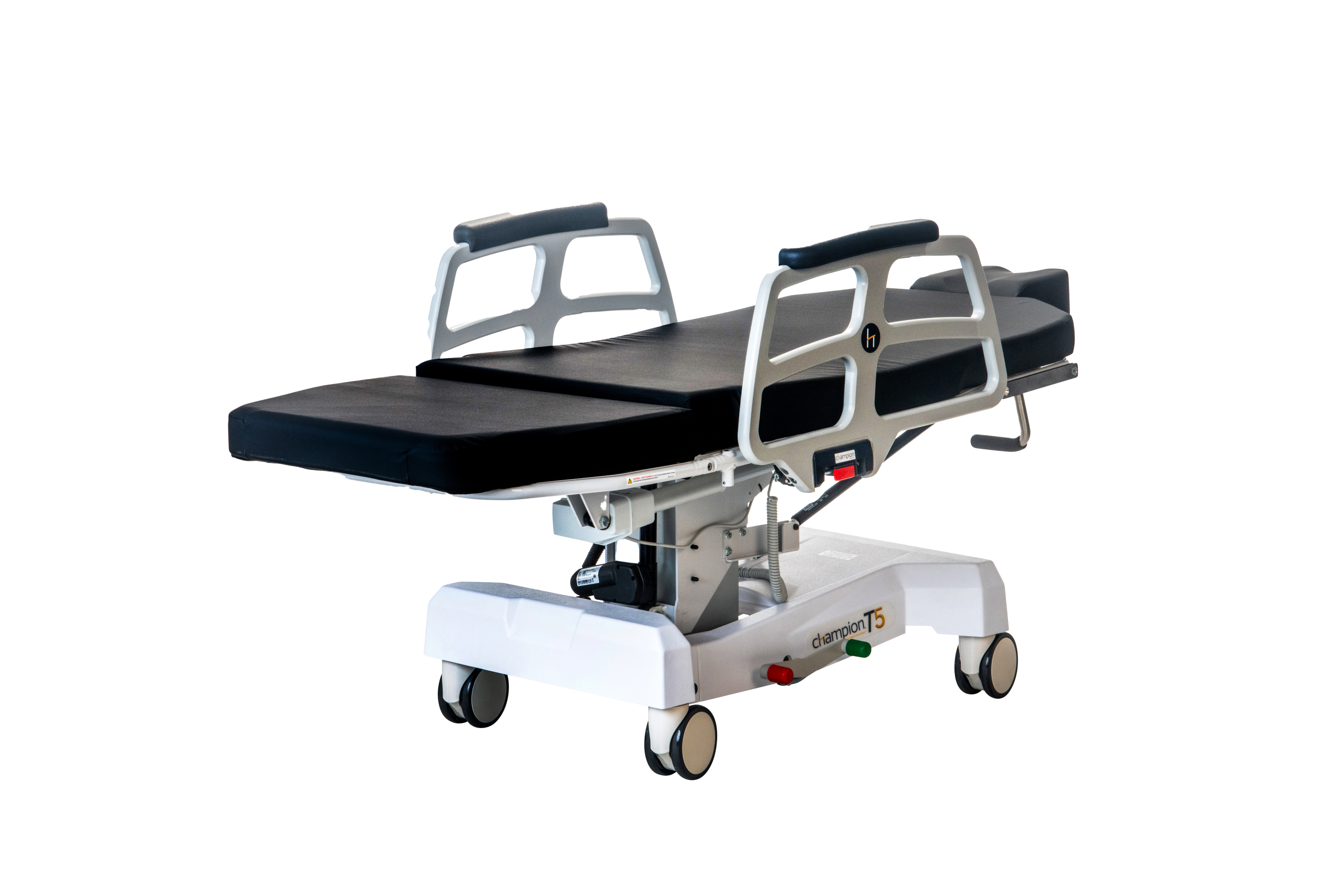

The Champion T5 Surgical Procedure Chair is a versatile medical tool that works as a chair, a stretcher, and a stable operating table. It excels in specialty fields like eye surgery, plastic surgery, and dental procedures. Additionally, you can adjust the patient’s position accurately using the simple hand remote. Consequently, your medical team stays comfortable while they perform complex operations.

The dual-action headrest on the T5 Procedure Chair provides excellent access to the patient’s head and neck. You can tilt or raise the headpiece to find the perfect angle for the doctor. Furthermore, the side rails swing down and tuck away for easy patient transfers. The triple-post base ensures a steady surface that does not shake at any height. This stability helps doctors stay focused during very delicate medical work.

Safety features on the T5 Procedure Chair include a central-locking brake system and a sturdy support leg. You can lock all four wheels at once to keep the chair from moving. Moreover, a quick-release lever allows you to flatten the backrest instantly during emergencies. Furthermore, the chair runs on a battery that you can remove and swap at any time, removing floor clutter.

Choose a reliable solution that makes moving and treating patients much easier. The T5 rolls smoothly through hallways thanks to its specialized steering wheel. This wheel also stops static shocks while you push the chair between rooms. We use high-quality materials that stand up to frequent clinical cleaning. Moreover, order your T5 Surgical Chair today to improve your facility’s daily workflow.

  • See tabs for additional information on the Champion T5.

Looking for other Procedure Chairs? Click here to view our full selection of Power Procedure Chairs.

Additional information

Weight 42 lbs
Dimensions 23 × 19 × 30 in
  • Dual Articulating Headrest: Provides precise head positioning for ophthalmic and oral surgeries

  • Triple Column Base: Delivers a broad height range and exceptional stability for surgical tasks

  • Manual Quick-Release Back: Drops the backrest instantly for rapid emergency access

  • Swing & Tuck Side Rails: Tucks completely out of the way for unobstructed patient access

  • Central-Locking Brakes: Secures the entire unit firmly in place with a single pedal

  • Surgical Support Leg: Adds extra stability to the base during weight-sensitive procedures

  • Electrostatic Steering Caster: Ensures safe, static-free transport and easy maneuverability

  • Push-Button Pendant: Offers electronic control over height, backrest, and Trendelenburg angles

  • Weight Capacity: 500 lbs. (227 kg)

  • Seat Height Range: 23.75″ to 43.5″ (Standard Models)

  • Seat Width: 24″ (T5-B, T5-XB, T5-XLB) or 28″ (T5-XWB)

  • Backrest Articulation: 0° to 85°

  • Trendelenburg Position: 20° (with 5° Reverse Trendelenburg)

  • Headrest Adjustment: 30° – 60° articulation range

  • Patient Surface Length: 75″ (190.5 cm)

  • Power: Removable 24V Lithium-Ion battery

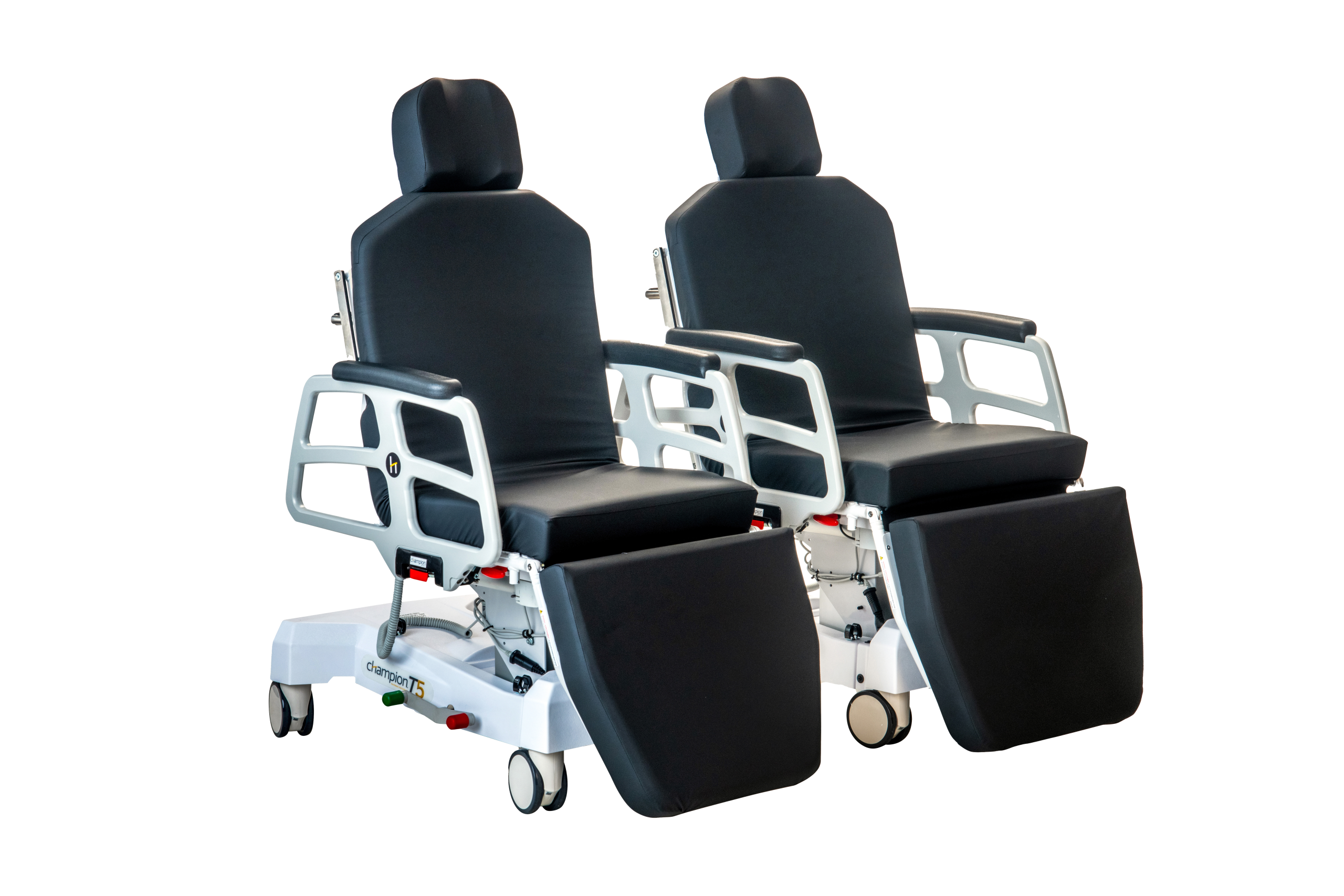

The Champion T5 comes available in two distinct colors in Blue Fusion and Black Fusion (See Below).

The following accessories are not included with the standard Champion T4 chair. These must be purchased separately, if required.




  • IV Pole

Champion T series IV Pole


  • Oxygen Tank Holder

Champion T Series Oxygen Tank Holder


  • Torso Belt

Champion T Series Chair Torso belt


  • Side Rails


  • Utility Tray

Champion T Series Chair Utility Tray

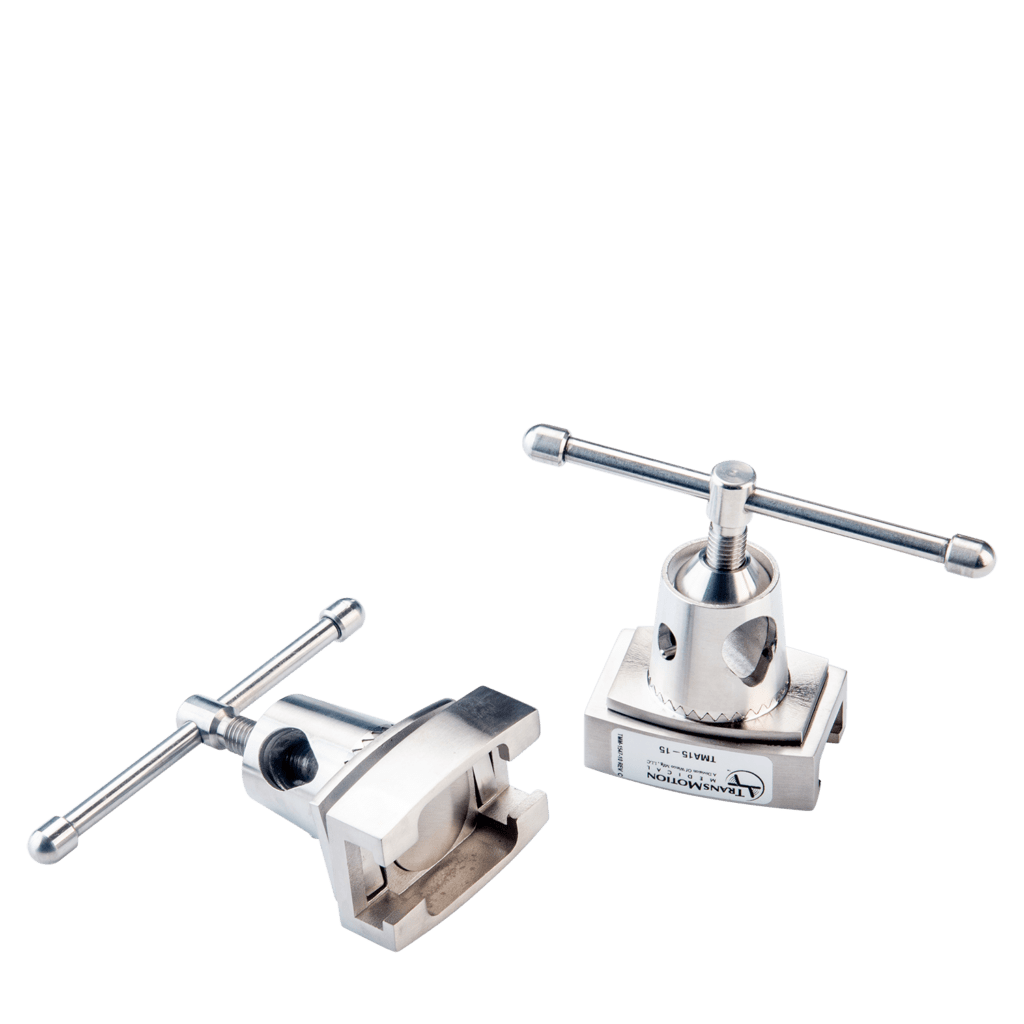

  • Clark Socket

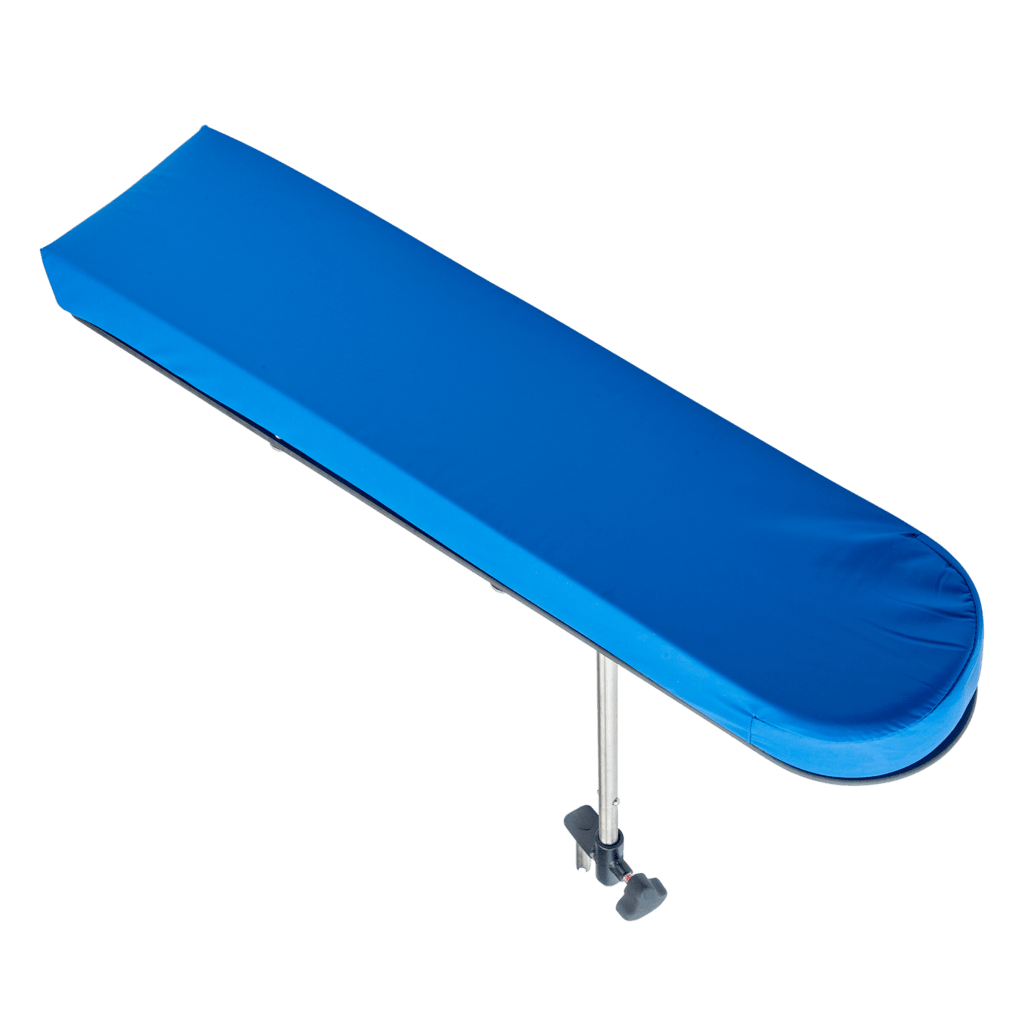

  • Seated Armboard

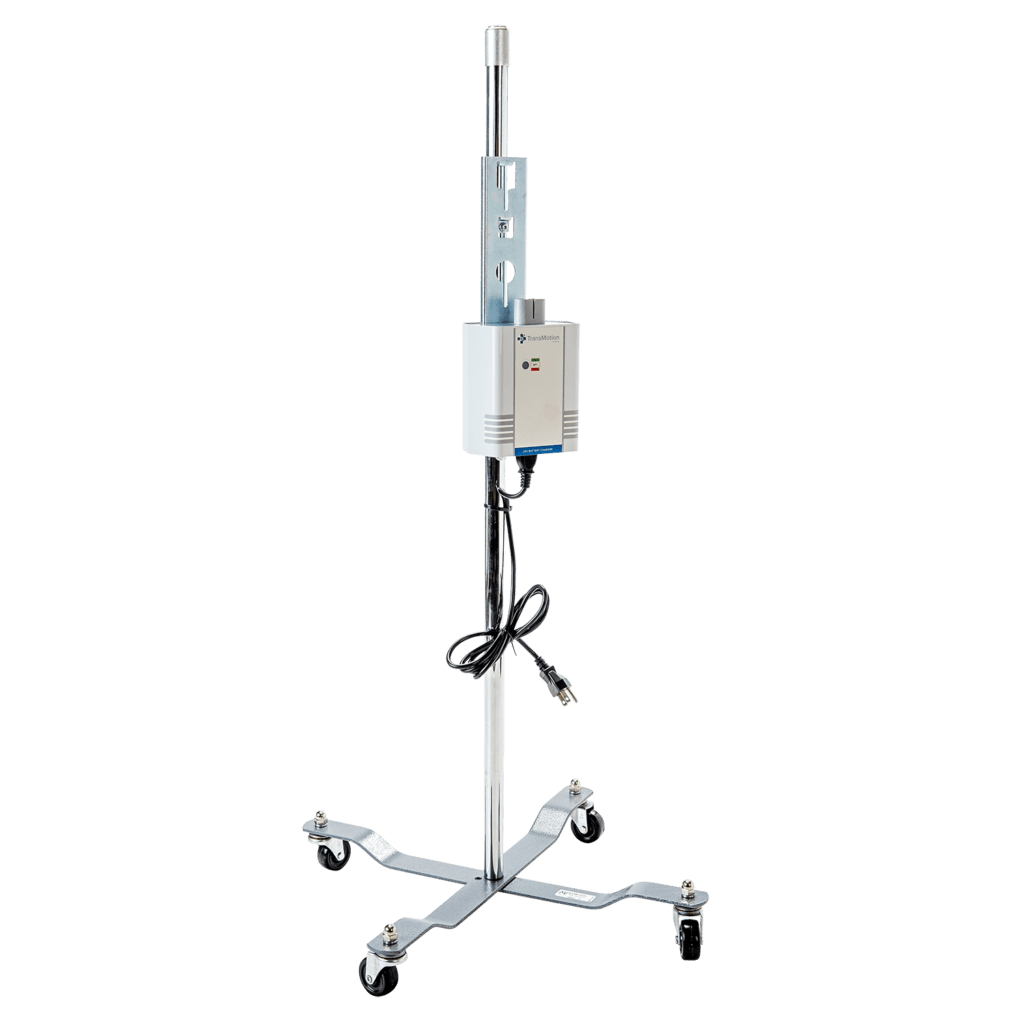

  • Mobile Charging Stand

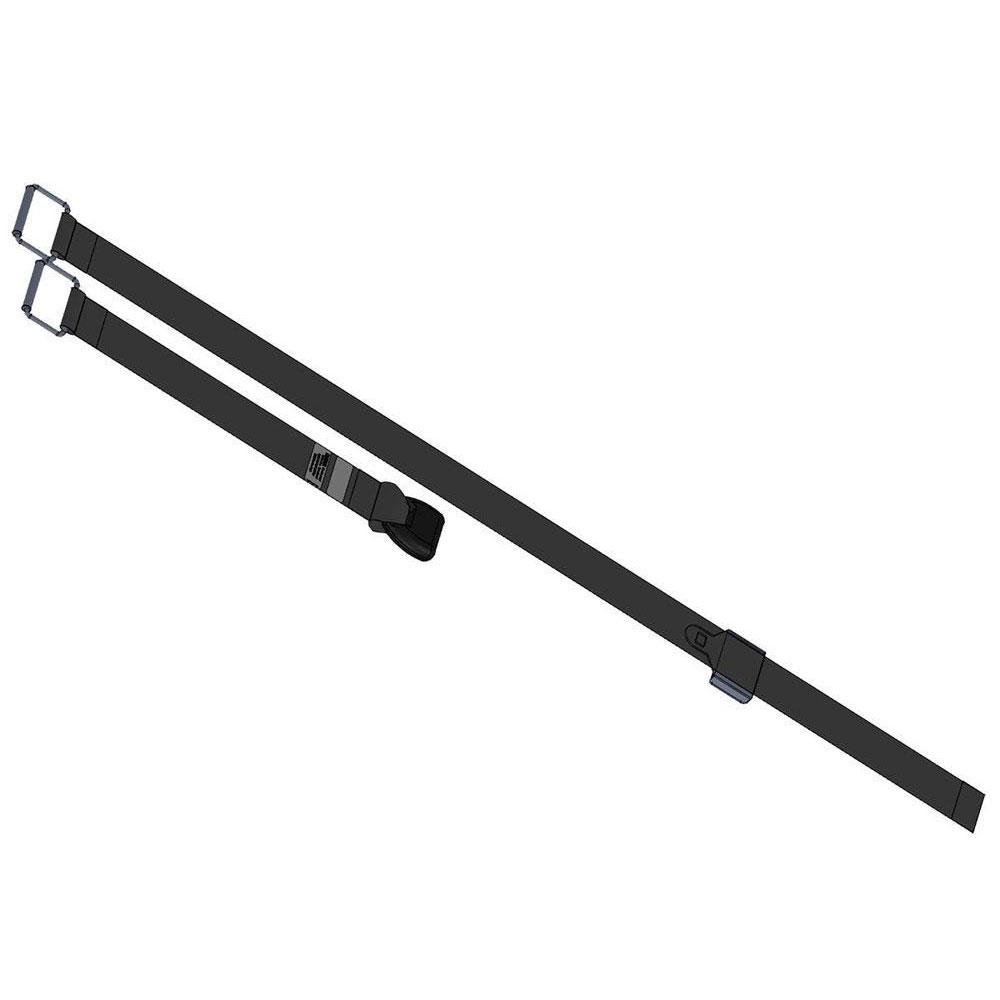

  • Lap Belt

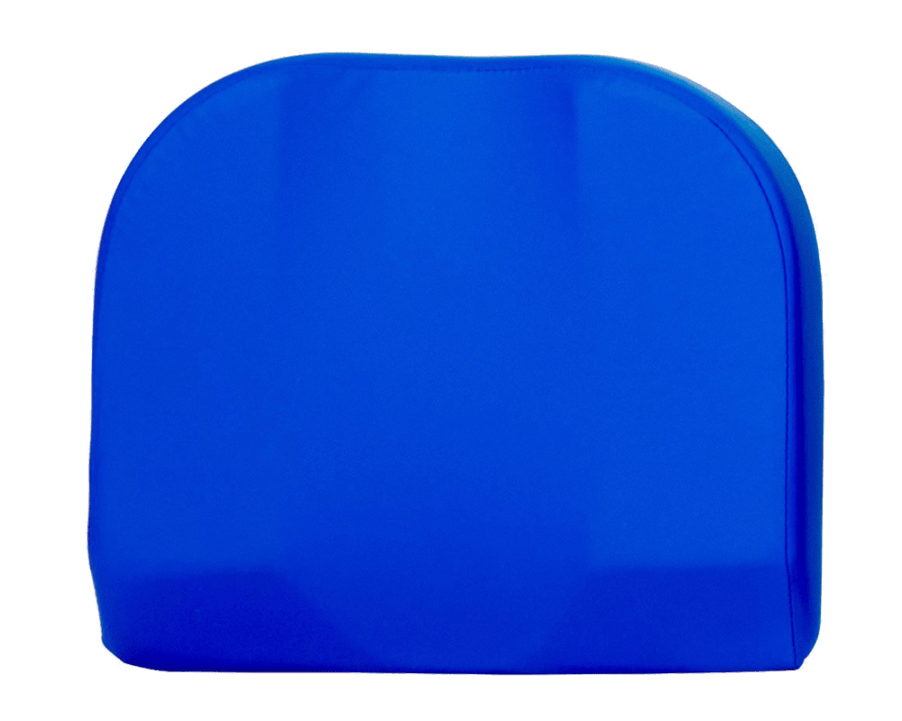

  • 1″ or 2″ Pillow

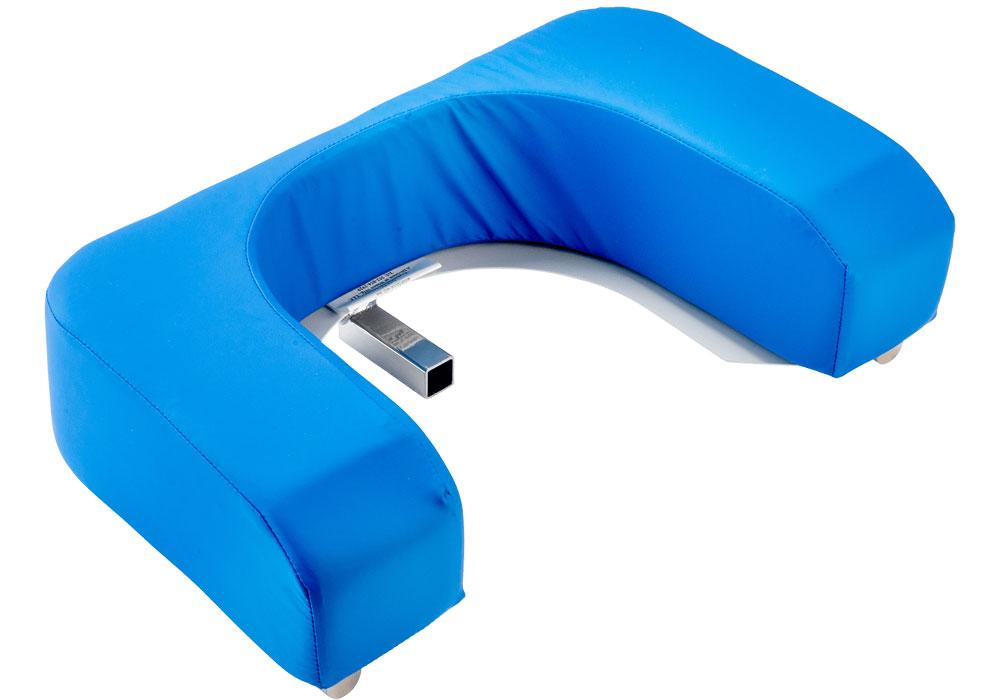

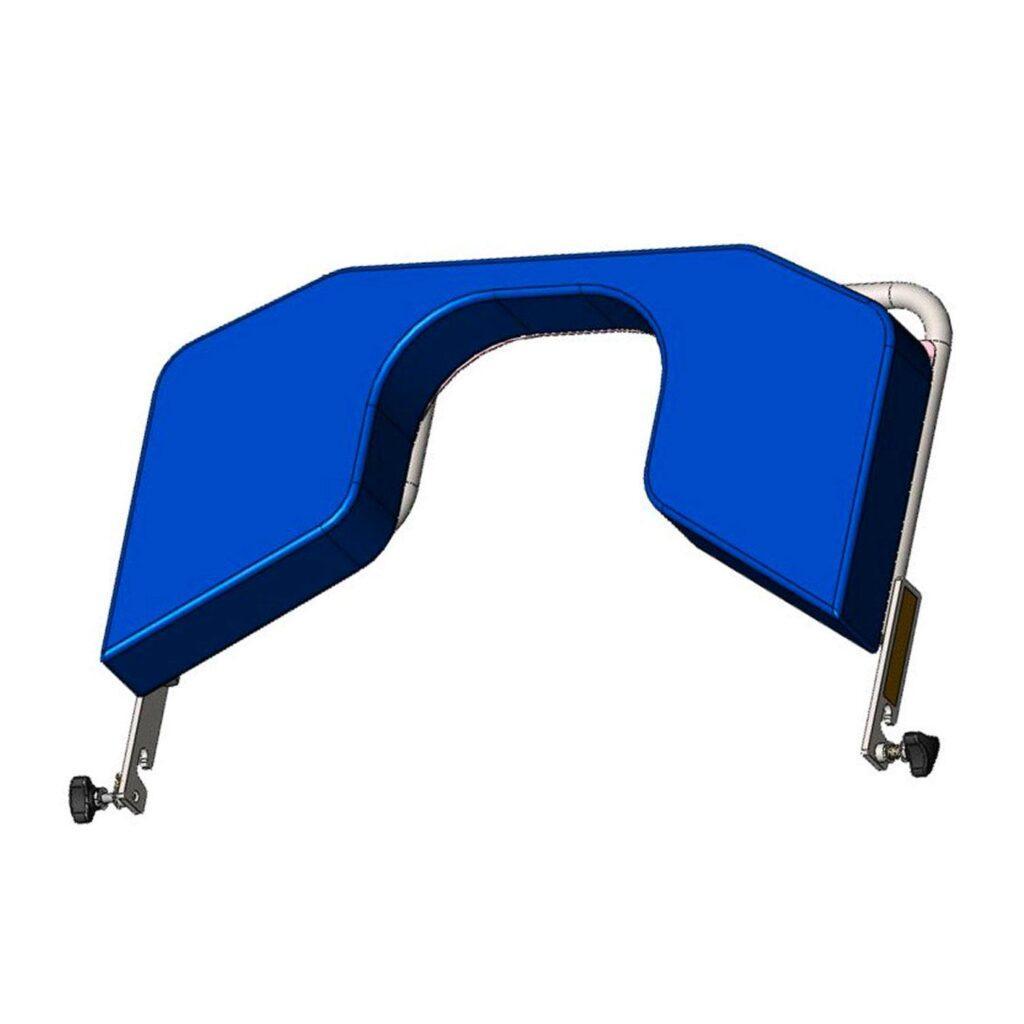

  • Head Extension

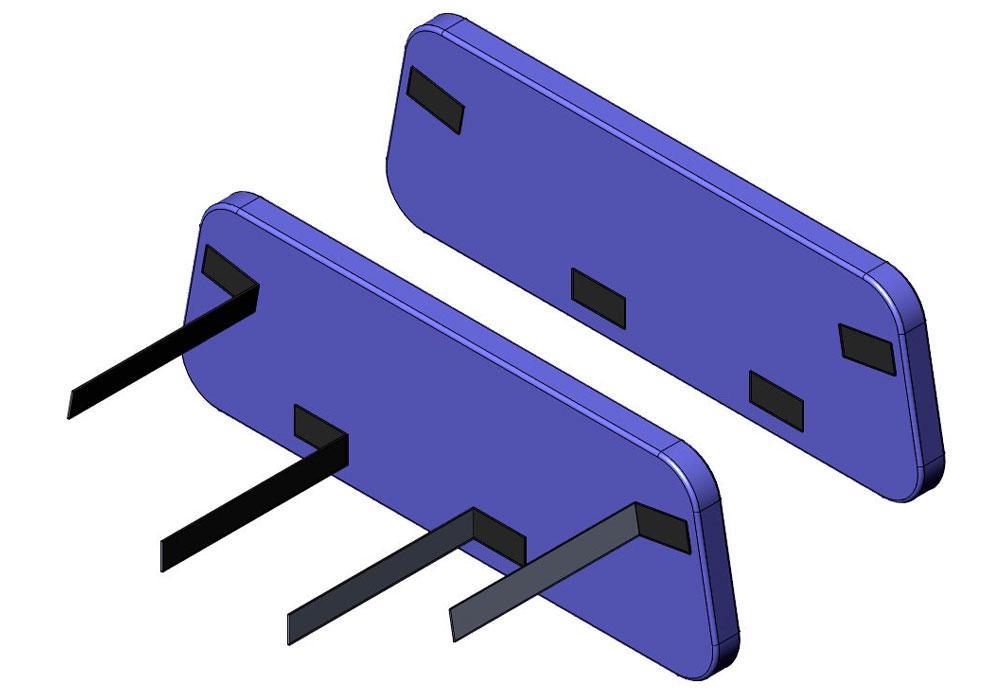

  • Upper Rail Pad Set


  • Head Extension with Push Bar

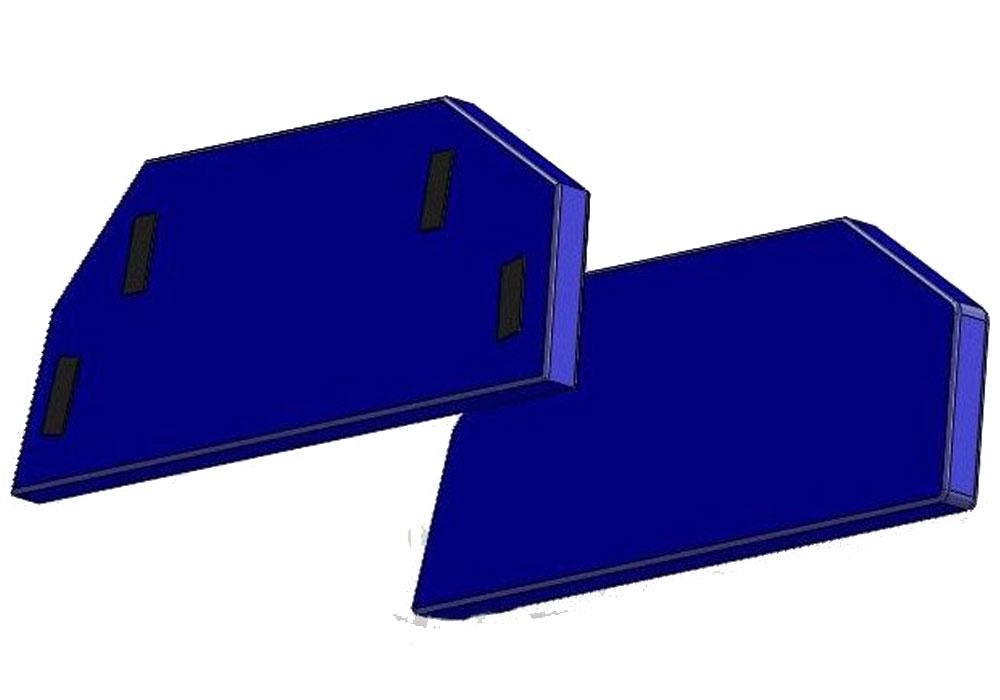

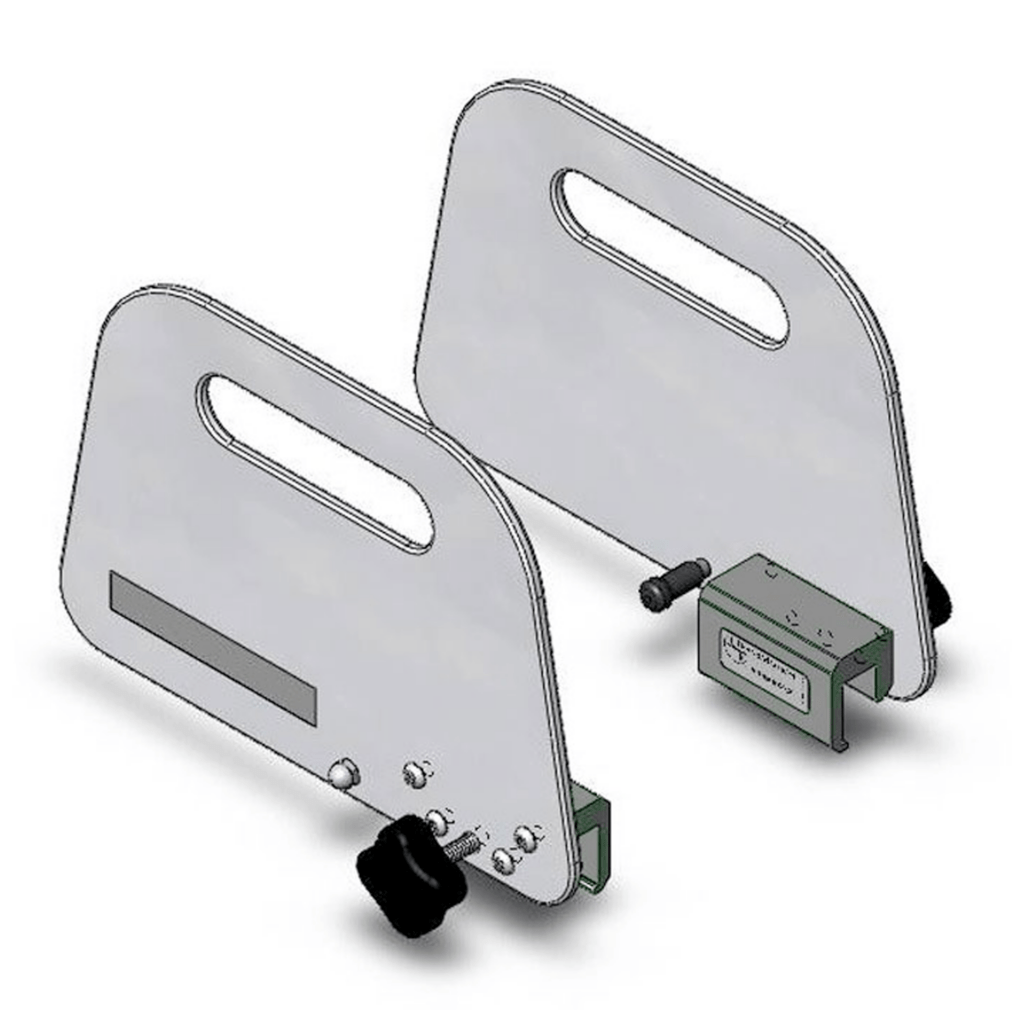

  • Side Guards

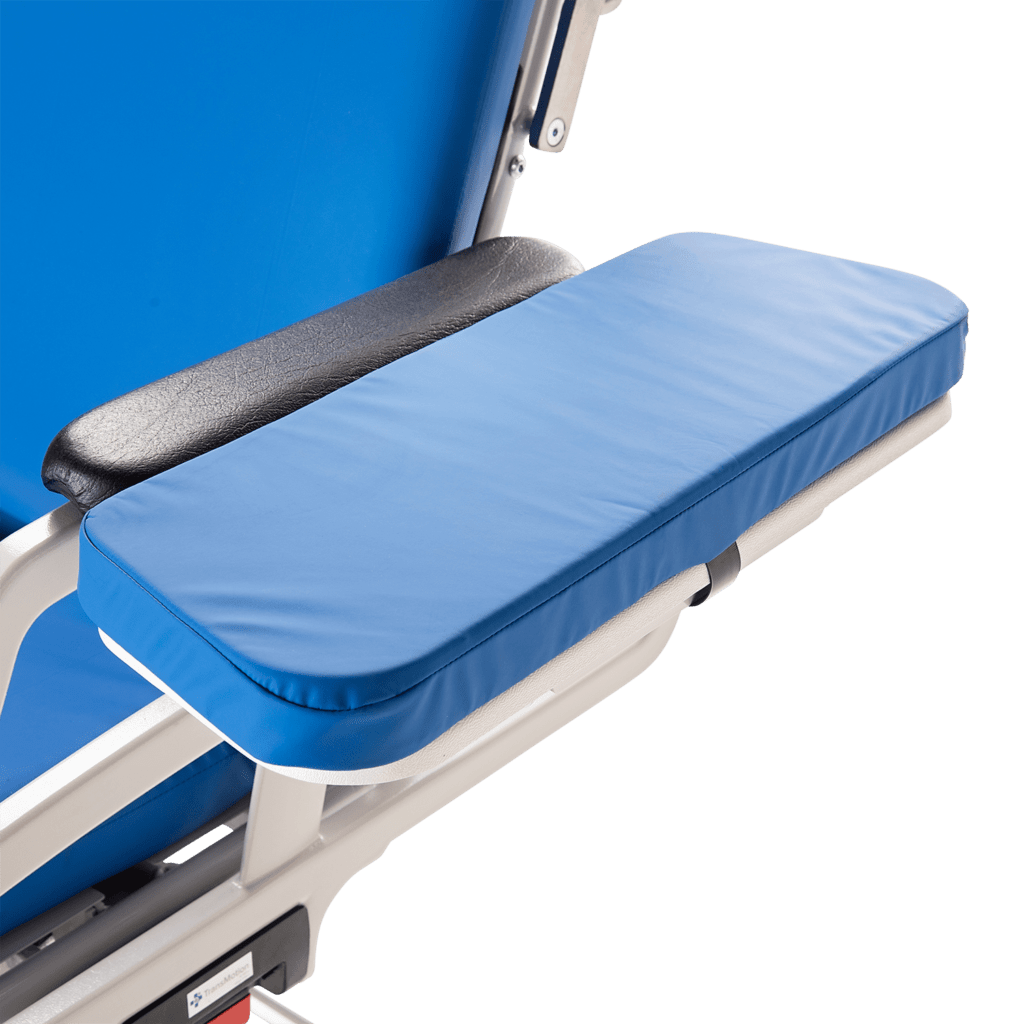

  • Side Table with Cushion


  • Folding Side Table

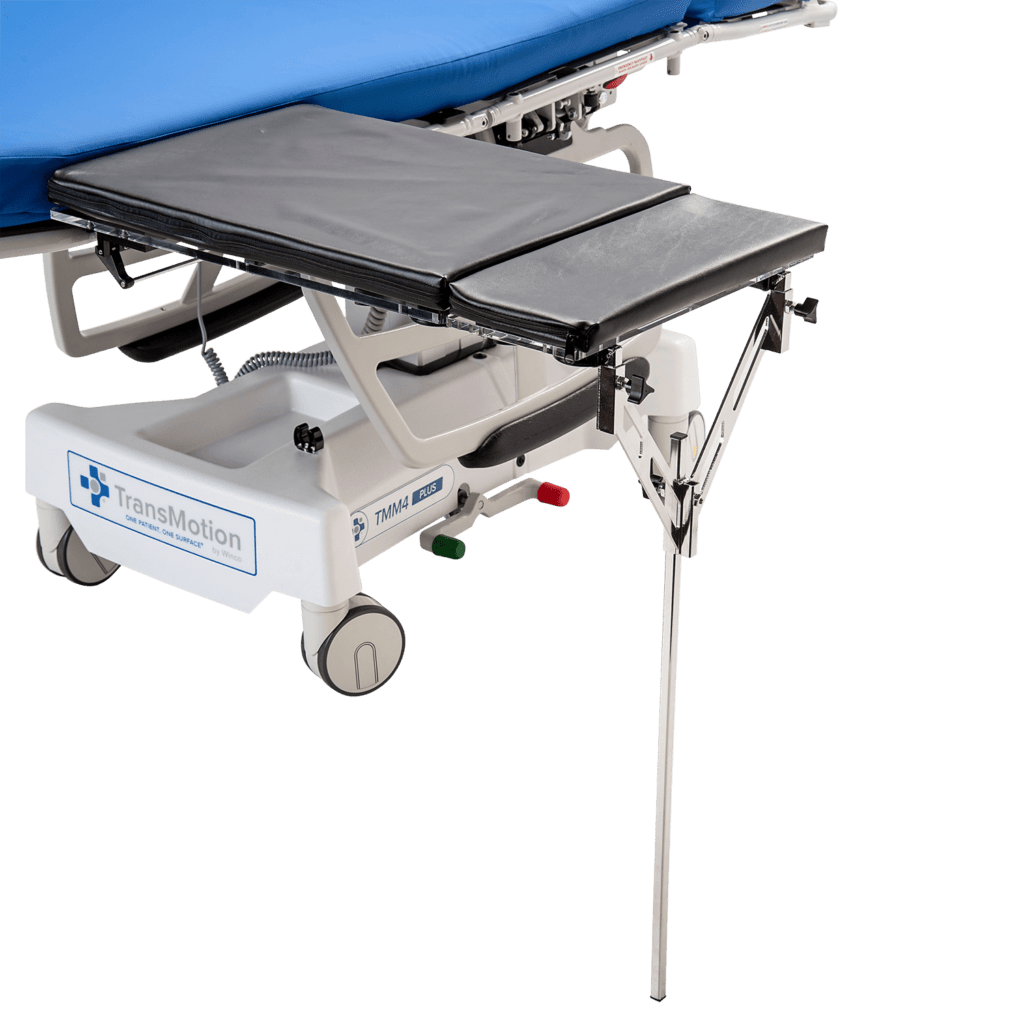

  • Carter Hand Surgery Table

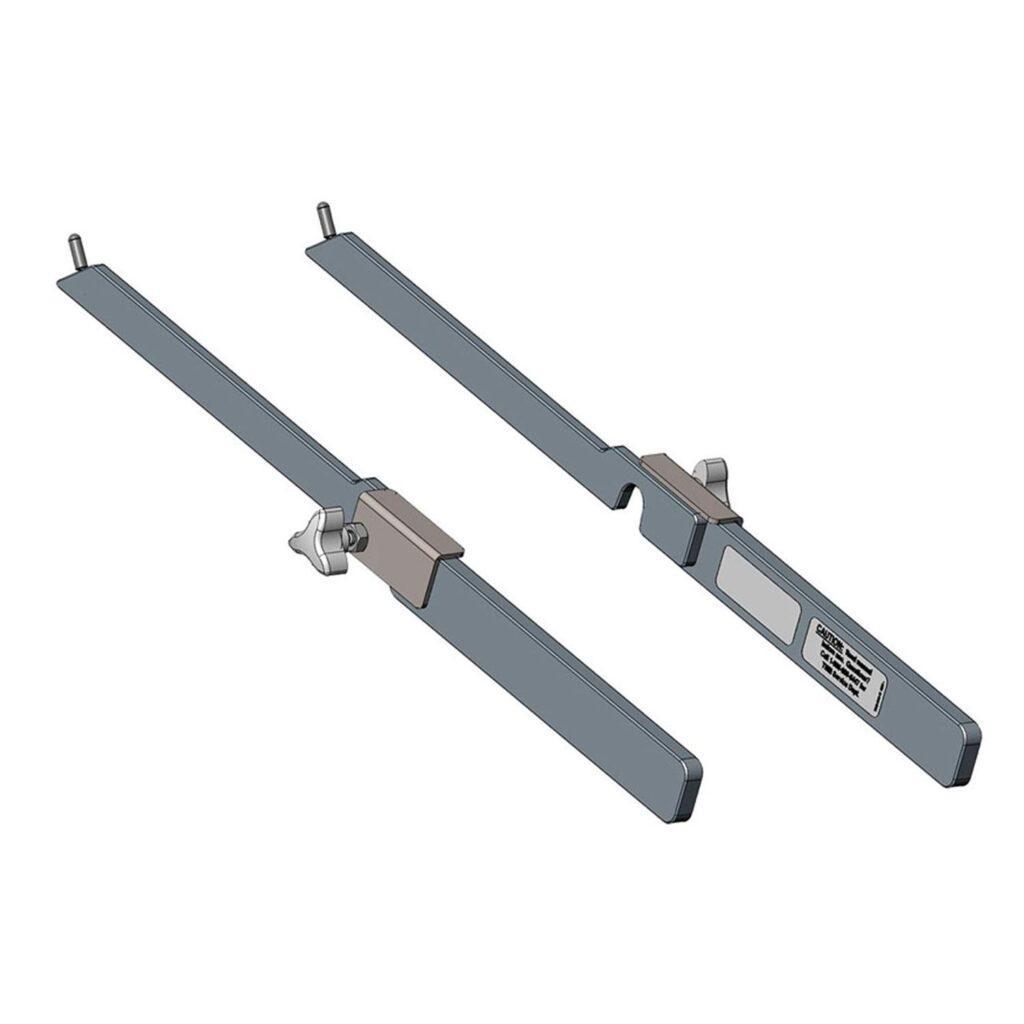

  • Surgical Bar Extensions

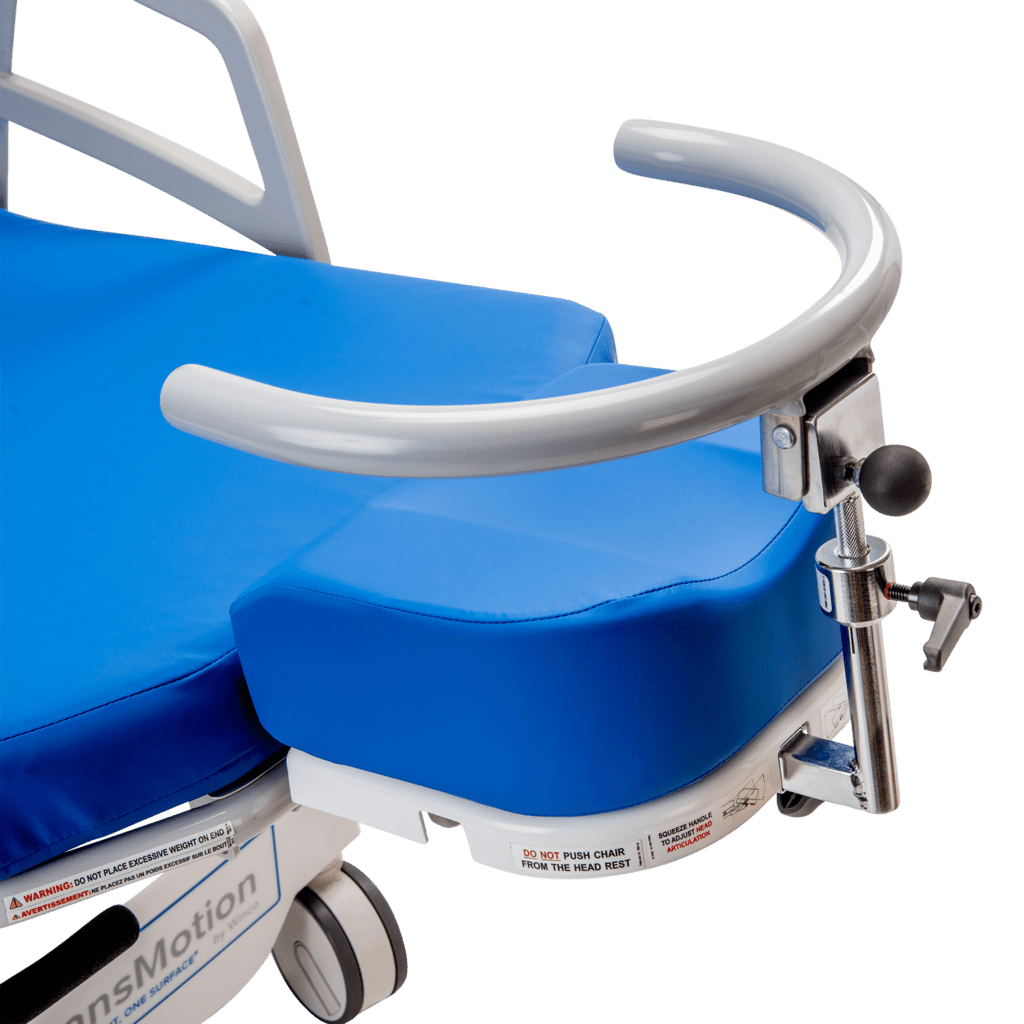

  • Anterior Wrist Rest

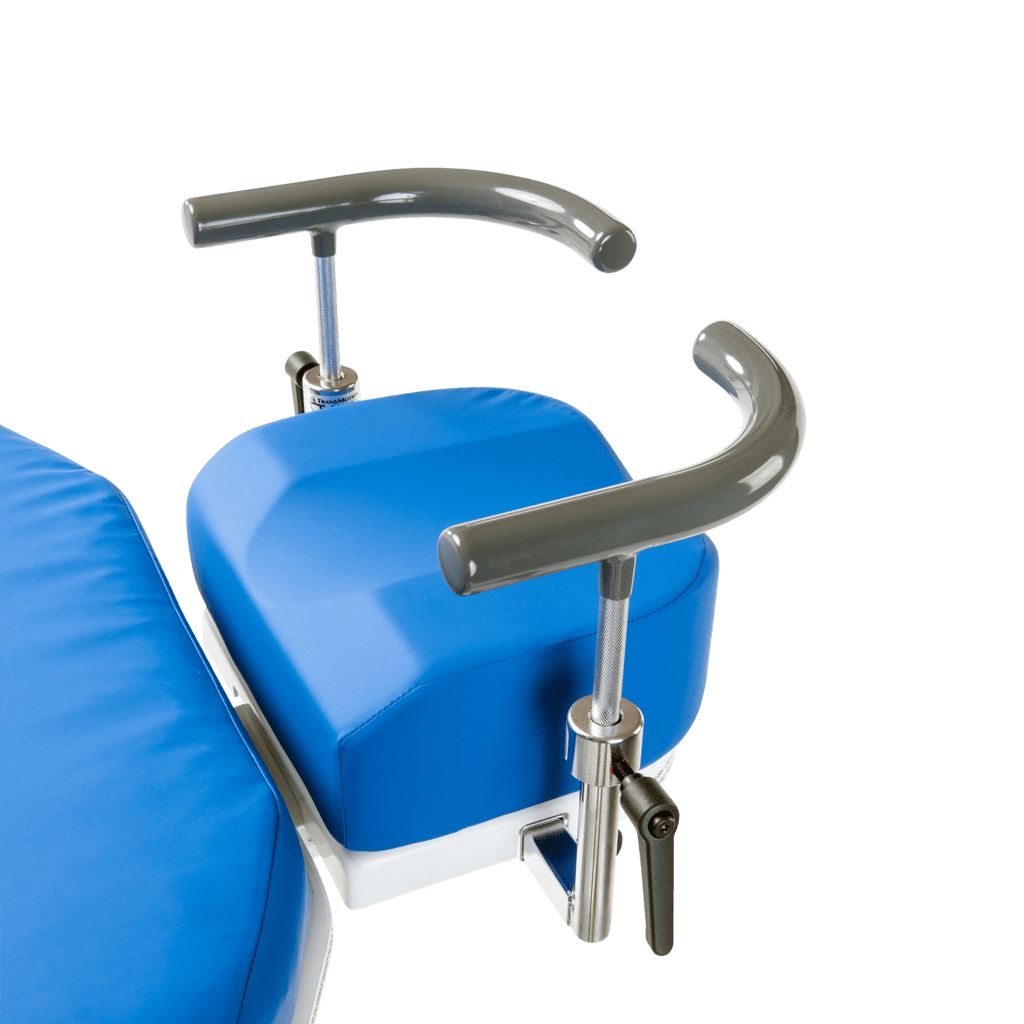

  • Dual Anterior Wrist Rest

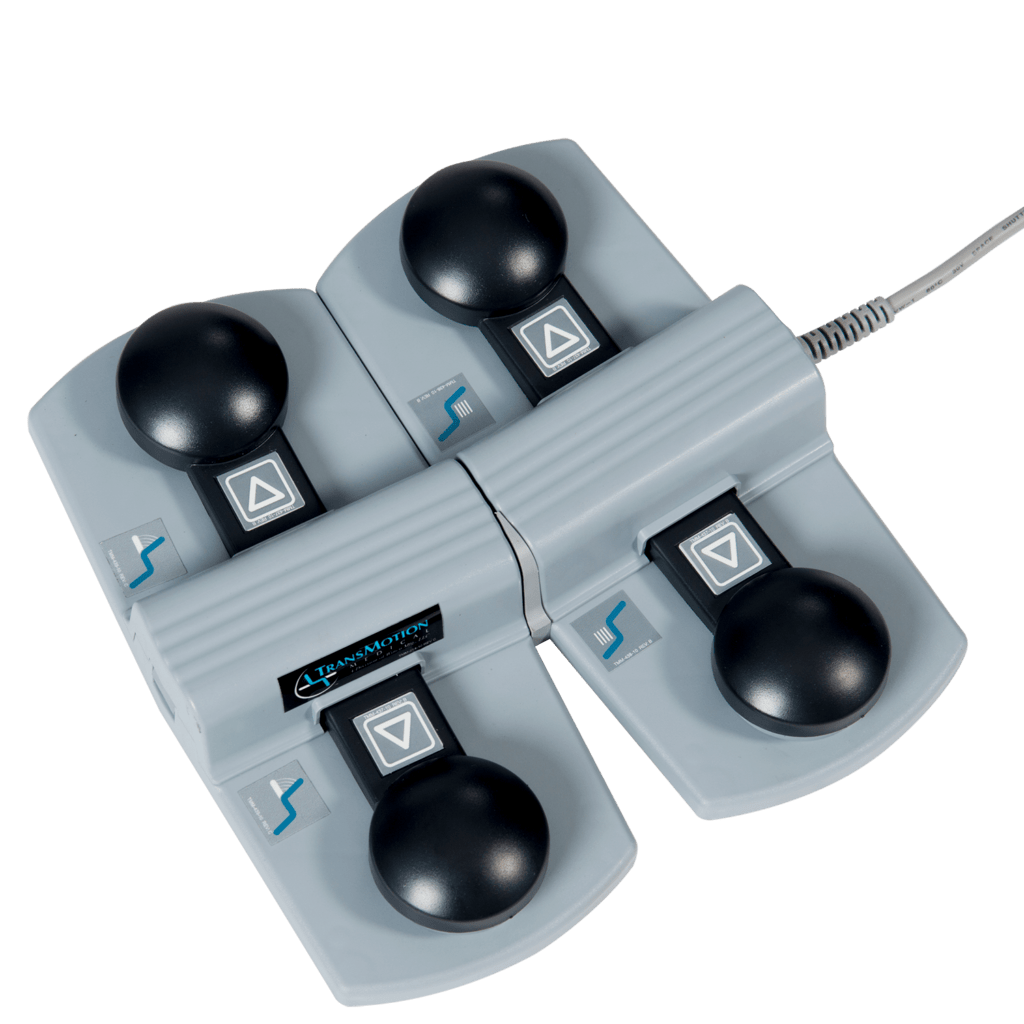

  • Dual Foot Pedal Control

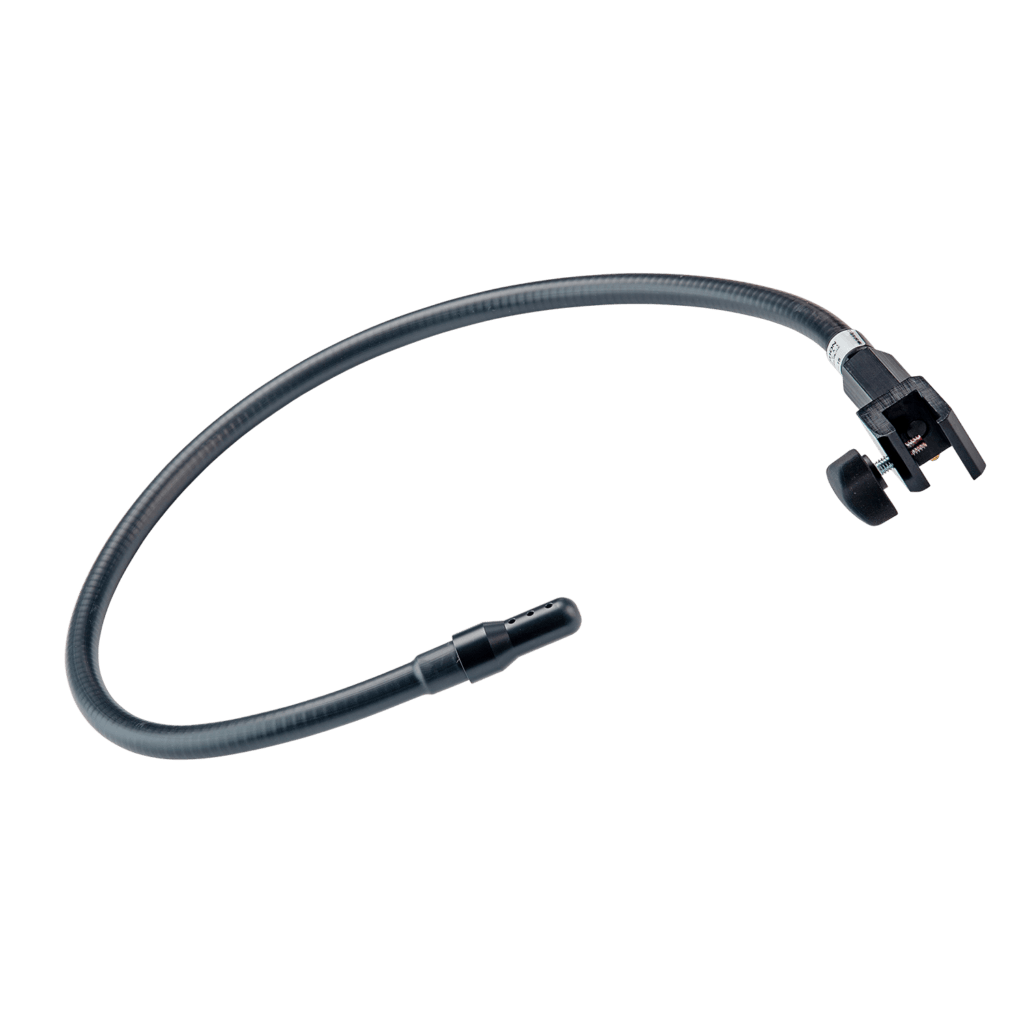

  • Air Delivery Drape Support
