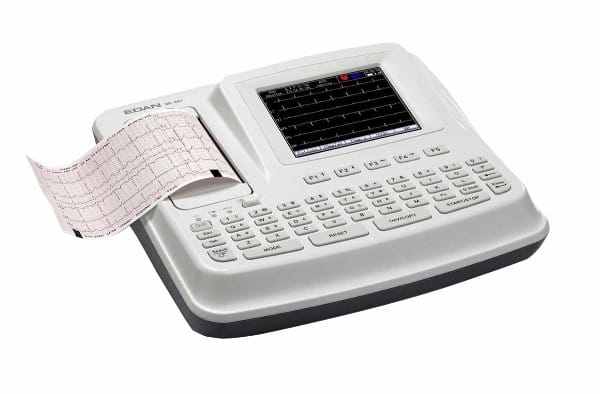

Edan SE-601C 6-Channel ECG

product ID VM-ESE601C-N
ConditionNew
Need Instant Advice? Talk to our experts 800-627-3215
SKU: VM-ESE601C-N Category:

Product Description:

Edan SE-601C 6-Channel ECG. Given the high demand within the United States, EdanUSA was formulated in 2009 to offer local service and support for U.S. sales. All of our products come with a three-year manufacturer’s warranty. Our goal is to offer high-quality diagnostic equipment that improves the quality of patient care, with customer pricing 30% x 40% less than that of major U.S. competitors.

Edan SE-601C 6-Channel ECG Features: Six-channel ECG SE-601 series, SE-601A, SE-601B, and SE-601C are cost-effective solutions, including hospital wards, routine checks, home visits, and emergency cases. FDA Approved Heart rate variability (HRV) & R to R Trending, analysis, and Portable, lightweight design.  Easy data input and operation with an alphabetic keyboard, one-touch operation, and a built-in rechargeable battery and AC/DC power supply.  Pacemaker detection meets the requirements of ANSI/AAMI EC11.  Automatic analysis and diagnostic software for adults and pediatrics.  Additional features include a two-step exercise test with periodic recording, an internal thermal printer and external printer, and support for external archiving: USB flash disk, card reader, and data transmission to PC via Ethernet or serial port.  A 2-year extended warranty is available as an option, sold separately.  See tabs for more information.

Do you have questions? We have answers! Check out our Knowledge Center or our Blog to learn about Refurbished Medical Equipment, Tips and Tricks, and much more!

To view a wide variety of EKG Units, click the following link to browse automatic autoclaves and distillers, manual autoclaves, and ultrasonic cleaners: Venture Medical’s Complete Catalog of EKG Units.

Features:

  • Cost-effective solutions for hospital wards, routine checks, home visits, and emergency cases
  • FDA Approved
  • Heart rate variability (HRV) & R to R Trending analysis
  • Portable, lightweight design
  • Easy data input and operation
  • Alphanumeric keyboard and one-touch operation
  • Built-in rechargeable battery, AC/DC power supply
  • Pacemaker detection which meets the requirements of ANSI/AAMI EC11
  • Automatic analysis and diagnostic software for adults and pediatrics
  • Two-step exercise test with periodic recording
  • Internal thermal printer and external printer
  • Support external archiving: USB flash disk, card reader
  • Data transmission to PC via Ethernet or serial port
  • Optional: 2-year extended warranty available for $ 299

Includes:

  • ECG Cable (4 mm, banana connector, AHA) 1
  • Bio ProTech Resting Tab Electrodes 100
  • Unomedical 10-Lead Universal Clips 10
  • Recording Paper (Z-fold, 110 mm x 140mm x 144P) 1
  • Power Cord (USA standard) 1
  • Rechargeable Lithium Battery (2200mAH) 1
  • Fuse (T400mA, USA standard) 2
  • User Manual 1
  • Quick Reference Card 1

For Complete Specifications & Brochure:

Edan SE-601C 6-Channel ECG: SE-601C (click to view)

Available Options Sold Separately:

ECG Cable

  • 01.57.110375 ECG Cable (4 mm, banana connector, AHA) 01.57.471017: $199
  • 01.57.107584 ECG Cable (Grabber Style, AHA): $210

ECG Adapters

  • 20100-4MM-SNAP ECG patient cable Adapter. Converts 4mm banana plug into SNAP connector. 6″ in length. Comes in Set of (10): $50

Disposable ECG Electrodes

  • PT-2334 Bio ProTech ADULT Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable TAB Type for Resting EKG’S): $55
  • T718 Bio ProTech PEDIATRIC Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable Foam/Button Style for Pediatric): $149
  • T716-50 Bio ProTech ADULT Resting Tab Electrodes (1,000 pieces, 100 pcs/pack, Disposable FOAM/BUTTON Type for EKG’S): $149

Reusable ECG Electrodes

  • 01.57.040163 Adult Reusable Suction Electrodes (6 PCS/set, 4 mm ECG cable): $49
  • 01.57.040162-12 Adult Limb Clamp Electrodes (4 PCS/set, 4 mm ECG cable): $49
  • 01.57.040168 Children Reusable Suction Electrodes (6 PCS/set, 4 mm ECG cable): $49
  • 01.57.040169 Children Limb Clamp Electrodes (4 PCS/set, 4 mm ECG cable): $49

Recording Paper

  • SE-601P Recording paper (Z-fold, 110 mm x 140 mm x 144P) Sold (10) packs to a BOX: $70

Power-Related

  • 01.13.036092 Power Cord (UK standard): $10
  • 01.13.036106 Power Cord (USA Hospital Grade: $15
  • 21.21.064149 Rechargeable Lithium Battery (2200mAH): $195

Smart ECG Viewer

  • Edan PC Viewer Smart ECG (USB Sentinel) with RS232 to USB Adapter and Edan PC Viewer Software: $350

Mounting Solution

  • MT-207 Center Pole Trolley (roll stand) with Basket and locking Casters (28 lbs 29″ x 22″ x 9″). Includes mounting plate: $375
  • Plate_EdanECG Edan ECG mounting plate for MT-207. 02.04.240030: $55
  • 01.56.110351 ECG Carrying Bag: $100
