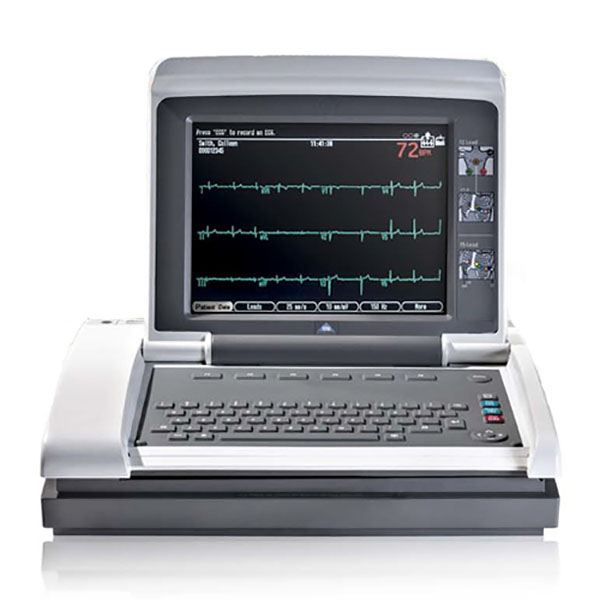

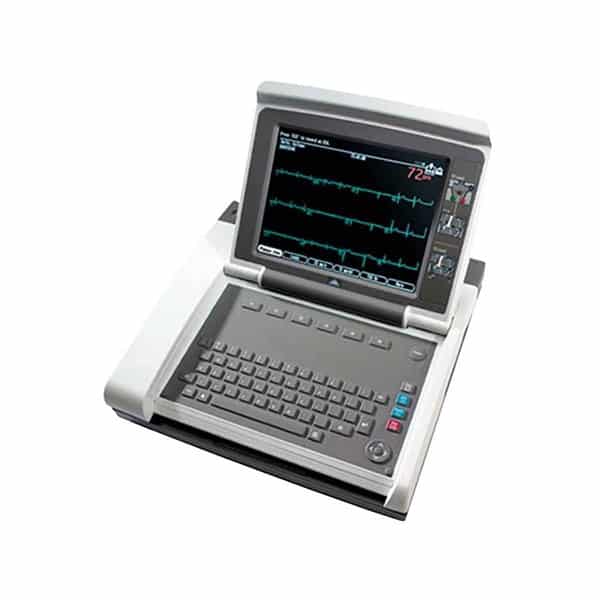

GE MAC 5500 HD EKG Machine - Refurbished
GE MAC 5500 HD EKG Machine - Refurbished - Image 2
GE MAC 5500 HD EKG Machine - Refurbished - Image 3
GE MAC 5500 HD EKG Machine - Refurbished - Image 4

GE MAC 5500 HD EKG Machine – Refurbished

product ID VM-E03M29103

If you need the GE MAC 5500 HD EKG Machine you don’t need to look any further. Give us a call or request a quote and let us help you.

ConditionRefurbished
Need Instant Advice? Talk to our experts 800-627-3215
Add to quote
SKU: VM-E03M29103 Category:

If you need the GE MAC 5500 HD EKG Machine you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

The GE MAC 5500 HD EKG Machine offers comprehensive 12-lead analysis with built-in interpretation capabilities. Patient data and results are displayed on a 10.4” backlit color AM LCD screen. It features a full alphanumeric keyboard for easy entry of patient demographics. With one-touch controls for printing, saving, and transmitting data, the device simplifies operation and improves workflow efficiency. It supports full-page printouts and employs age- and gender-specific interpretation criteria for accurate 12SL diagnoses. Additionally, the machine includes QRS and P wave signal averaging to enhance the precision of its measurements.

Includes:

  • CAM-14 Module
  • New Patient Lead Wires (Banana)
  • ECG Clips
  • New Battery
  • New Power Cord
  • Pack of Paper
  • Users Manual
  • See tabs for additional information.

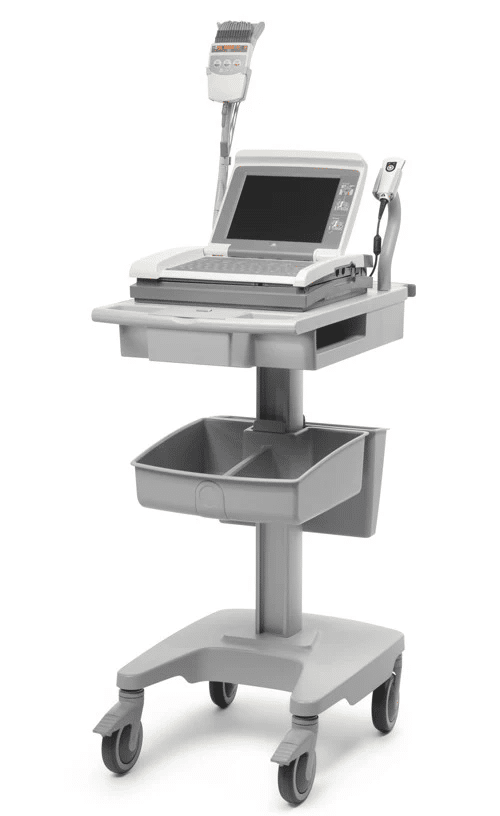

An optional rolling cart is available.

Do you have questions? We have answers! Check out our Knowledge Center or our Blog to learn about Refurbished Medical Equipment, Tips and Tricks, and much more!

To view a wide variety of EKG Units, click the following link to browse Venture Medical’s Complete Catalog of EKG Units.



  • 10″ Color Display
  • Marquette Hookup Advisor
  • Marquette 12SL with Gender-Specific interpretation
  • Simultaneous 12/15-lead acquisition, storage, and assessment
  • Internal Modem
  • Barcode and magnetic card scanning options
  • Internal Memory for 200 ECG’s, SD-card removable Media
  • Alphanumeric keyboard
  • CAM-14 Module

Display Screen:

  • Display Type: 10.4 in (264 mm) diagonal graphics backlit color AM LCD
  • Display Resolution: 640 x 480 pixels with waveform enhancement
  • Display Data: Heart rate, patient name, ID, clock, waveforms, lead labels, speed, gain and filter settings, warning messages, prompts, and help messages

Dimensions:

  • Height: 3.7 in (9.4 cm) with display closed
  • Width: 15 in (38.1 cm)
  • Depth: 13.8 in (35.1 cm)
  • Weight: Approximately 6.8 kg (15 lbs) including battery, without paper

Electrical:

  • Power Supply: AC or battery operation
  • Voltage: 100 to 240 VAC
  • Current: 0.5A @ 115 VAC, 0.3A @ 240 VAC, typical, 0.85A max
  • Frequency: 50 to 60 Hz
  • Battery Type: User replaceable, 18V @ 3.5 AH ±10% rechargeable NiMH
  • Battery Capacity: 100 single page reports, (typical) or six hours continuous display (without printing)
  • Battery Charge Time: Approximately 4.5 hours from total discharge (with display off)

Processing:

  • ECG Interpretation: Marquette 12SL ECG Analysis Program for Adults and Pediatrics
  • Computerized Measurements: 15-lead analysis includes measurements of user-selectable additional 3 leads
  • Optional: Hi-Res Late Potential Analysis and P-Wave Signal – Averaged ECG
  • Additional ECG Function: Vectorcardiography
  • ECG Analysis Frequency: 500 samples/second (sps)
  • ECG Storage: 200 ECGs in internal memory
  • External Archiving: Secure Digital card
  • Digital Sampling Rate: 16,000 samples/second/channel
  • Pre-Acquisition: Provides 10 seconds of instantaneous ECG acquisition
  • Dynamic Range: AC Differential ± 5mV, DC offset ±300 mV
  • Resolution: 4.88 μV/LSB @ 250 sps, 4.88 μV/LSB @ 500 sps
  • Frequency Response: –3 dB @ 0.01 to 150 Hz
  • Common Mode Rejection: >140 dB (123 dB with AC filter disabled)
  • Input Impedance: >10MΩ @ 10 Hz, defibrillator protected
  • Patient Leakage: <10 μA
  • Pace Detection: Meets or exceeds ANSI/AAMI EC11-1991 standards
  • Pace Digital Sampling Rate: 75,000 samples/second/channel
  • Pace Pulse Width: As low as 0.2 ms in duration
  • Pace Pulse Amplitude: As low as 0.5 mV in amplitude
  • Special Acquisition Functions: Disconnected lead detection, electrode impedance, excessive AC noise, baseline wander, and muscle tremor messages
  • Heart Rate Meter: 30 to 300 BPM ±10% or 5 BPM, whichever is greater. Heart rates outside this range will not be displayed

Writer:

  • Writer Technology: Thermal dot array
  • Writer Speeds: 5, 12.5, 25, and 50 mm/s
  • Number of Traces: 3, 6, 12, or 15 user selectable
  • Writer Sensitivity/Gain: 2.5, 5, 10, 20, 10/5 (split calibration) mm/mV
  • Writer Speed Accuracy: ±2%
  • Writer Amplitude Accuracy: ±5%
  • Writer Resolution: Horizontal 1000 dpi @ 25 mm/s, 200 dpi vertical
  • Paper Type: Thermal, Z-fold, perforated, fan fold, 300 sheets/pack
  • Paper Size: A Size: 8.5 in x 11 in, (214.6 mm x 280 mm); A4 Size: 8.27 in x 11.7 in (210 mm x 297.5 mm)
