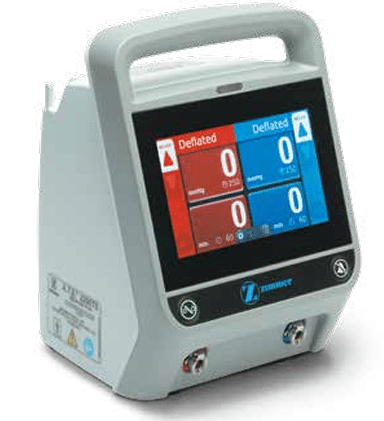

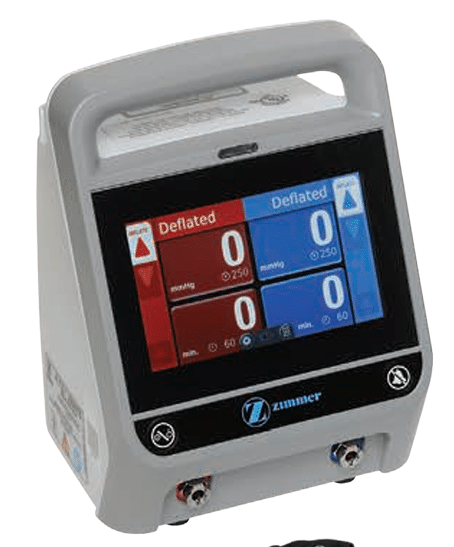

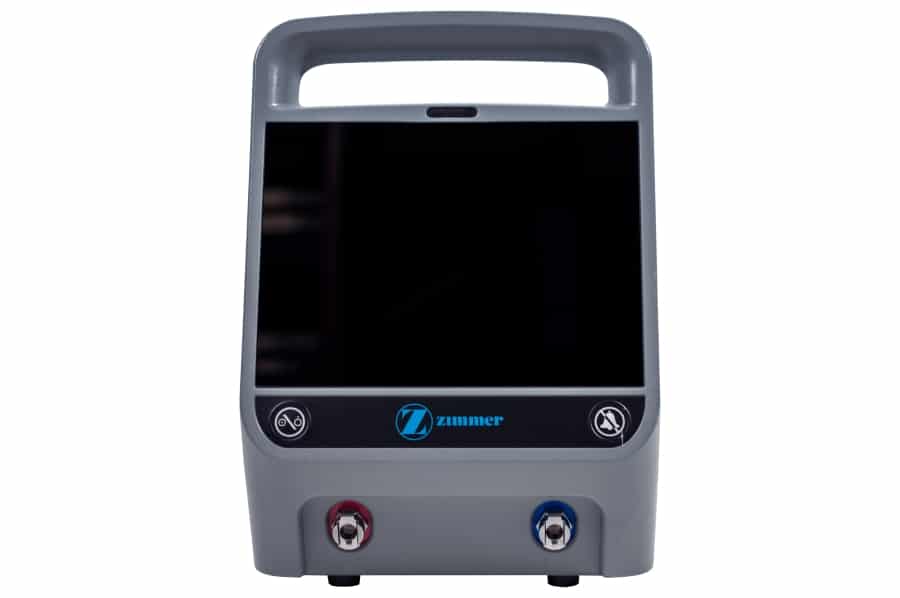

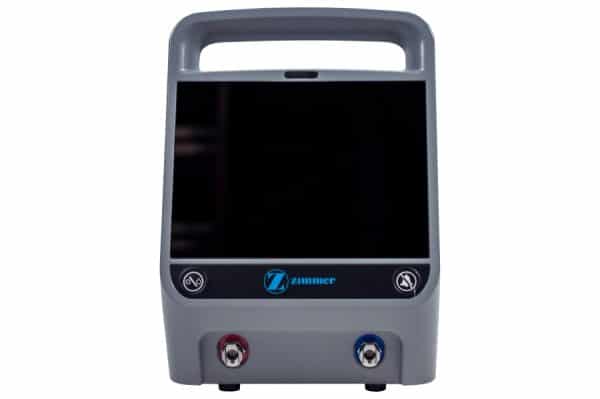

Zimmer ATS 2200 Tourniquet System - Refurbished
Zimmer ATS 2200 Tourniquet System - Refurbished - Image 2
Zimmer ATS 2200 Tourniquet System - Refurbished - Image 3

Zimmer ATS 2200 Tourniquet System – Refurbished

product ID VM-E25M88101

The Zimmer ATS 2200 is an excellent solution for your Tourniquet System needs.

ConditionRefurbished
Need Instant Advice? Talk to our experts 800-627-3215
Add to quote
SKU: VM-E25M88101 Category:

The Zimmer ATS 2200 is an excellent solution for your Tourniquet System needs.

Product Description:

Zimmer ATS 2200 Tourniquet System: Refurbished. The Zimmer ATS 2200 is a single port, dual cuff tourniquet system with touchscreen controls. It automatically monitors pressure levels during surgery. The device helps detect occlusions in the tubing line, reducing the risk of residual cuff pressure. This enhances patient safety and surgical accuracy. Easy-to-use interface supports efficient workflow in the OR.

Advanced monitoring allows the ATS 2200 to detect minor cuff or hose leaks during procedures. This prevents unnoticed pressure issues. Designed for reliability, it continuously checks pressure consistency. The system provides alerts for any irregularities. Ideal for hospitals and surgery centers needing dependable, automatic tourniquet technology.

  • See tabs for more information.

Are you looking for a specific Tourniquet System?  Click any of the following links to view our complete catalog of Tourniquet Units, Tourniquet Cuffs w/ Dual Ports, Tourniquet Cuffs w/Single Ports or Double Cuff Tourniquets, IV Reginal, Anesthesia & Bier Block Procedures.

Check out our Knowledge Center or our Blog to learn about Refurbished Medical Equipment, Tips and Tricks, and much more!

  • Automatic IVRA Cuff Lock Out
  • Line Occlusion Detection (Acoustic Reflectometry)
  • Advanced Leak Detection
  • Single Port
  • Dual Cuff
  • Table or Pole Mount
  • Lithium Ion Battery – 6 hours
  • Touchscreen User Interface
  • 7″ Color Display
  • Minimum/Maximum Pressure: 50/600 mmHg
  • Pressure Accuracy: ±4 mmHg (50-600 mmHg)

Note: Cuffs are not included in the price and can be purchased directly from Zimmer or other sources.

Dimensions

  • Height: 11.6” (29.5 cm)
  • Width: 8.1” (20.6 cm)
  • Depth: 10” (25.4 cm)
  • Weight: 11.5 lb (5.2 kg)

Display

  • Type: Color LCD Touch Screen
  • Size: 7” Diagonal

Pressures

  • Minimum Pressure: 50 mmHg
  • Maximum Pressure: 600 mmHg
  • Accuracy: ±4 mmHg (50-600 mmHg)

General

  • Number of Ports: Single
  • Number of Potential Cuffs: Dual cuff

Line Occlusion Detection

  • Technology that is intended to help identify a line occlusion between the machine and cuff. The technology decreases the unintentional risk of leaving pressure in a tourniquet cuff.

Cuff Alert

  • Technology intended to prevent setting the unit to STANDBY with pressure in the tourniquet cuff.

Automatic IVRA Cuff Lock Out

  • Technology that is intended to prevent accidental dual cuff release. Without additional steps or notification, the machine will prompt users to confirm the intent to deflate a second cuff. Improper deflations have resulted in serious injuries and death.

Advanced Leak Detection

  • Technology that monitors a cuff for minor variations intraoperatively with the intention of reporting potential cuff/hose leaks.

Pre-Op Cuff Test

    • Technology that allows for bedside testing of cuff pre-operatively to ensure proper function.

Completely Refurbished

Available Options Sold Separately:

  • Mobile Stand: Add $250.00

Note: To view specific Tourniquet Cuffs, click the links below.

Zimmer ATS 2200 Brochure (click to view)

Zimmer ATS Video (click to view)
