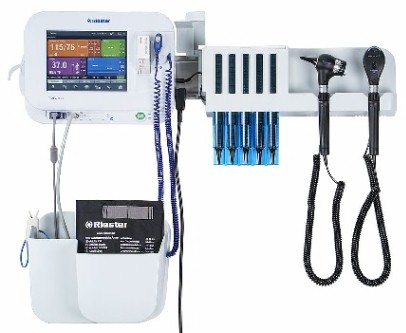

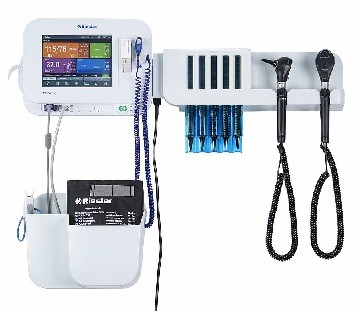

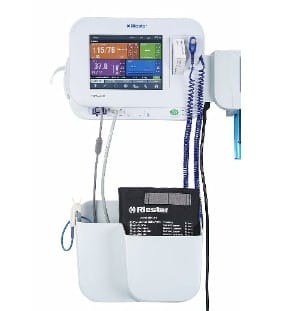

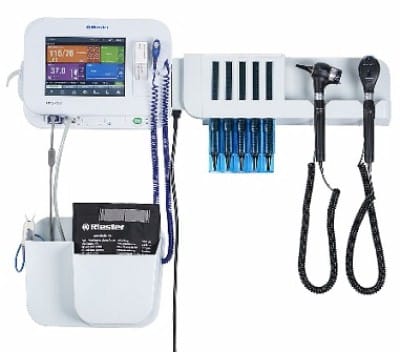

Riester RVS 200 Integrated Modular Wall Diagnostic Station


Product Description:

Unique modular combination of advanced vital signs monitor and EENT diagnostic instruments.

Riester’s RVS-200 is the unique modular combination of advanced vital signs monitor (RVS-100) and ri-scope® L EENT diagnostic instruments with high-performance LED illumination.

The RVS-200 Wall Diagnostic System can communicate through a wired or wireless connection to the hospital’s EMR, according to the HL7 standard. The highly flexible, modular design offers many configurations and settings to suit the needs of hospitals, clinics as well as primary care and long-term care settings. See tabs for more information and call for the best price.

Note: Click to view additional Diagnostic Systems or the following link to view Venture Medical’s  Catalog of Medical Exam Rooms Tables & Equipment.

Diagnostic handles

  • ri-scope® L instruments with renowned optics and advanced LED lighting
  • Maintenance-free LED technology (4,200 K, CRI >90)


  • 3 measurement modes (Monitor, Spot-check, Triage)
  • High-sensitivity 8” TFT color touch screen with self-explanatory user interface and integrated help-function
  • Displays SYS, DIA, MAP, Pulse, Temp, Plethysmogram
  • Clinical grade NIBP* including averaging mode
  • Programmable NIBP averaging mode (2-5 readings)
  • Riester, Masimo* or Nellcor* Oximax SpO2
  • Predictive Thermometer (Filac 3000)
  • Connectivity with the EMR – follows the HL7 standard
  • LAN Connectivity as standard
  • Programmable alarms (audible, visible) with 3 priority levels
  • Supports nurse call RJ11 port
  • Internal memory for 5,000 measurements

 (*includes neonate mode)

Accessories supplied with the monitor:

  • NIBP extension tube
  • 2 cuffs (adult & adult large incl. connectors)
  • SpO2 sensor adult
  • SpO2 extension cable
  • Oral temperature probe
  • Probe cover
  • Power Supply:  100 – 240 V AC, 50/60 Hz
  • Dimensions:  L x H x W: 759 x 310 x 110 mm (29.88 x 12.21 x 4.33 in)
  • Weight:  7.60 kg (16.76 lb) including temp module, printer
  • Dimensions Basket:  L x H x W: 270 x 225 x 200 mm (10.63 x 8.86 x 7.88 in)

Note:  For specifications of the monitor please see Riester RVS 100 vital signs monitor

Available Options Sold Separately:

  • Thermal printer (internal)
  • Barcode reader
  • Extension module (extension of the entire system up to 3 handles)
  • WiFi
