Mindray DPM 7 Patient Monitor with CO2

product ID VM-EDIM50CO2-PM-1-1

If you need the Mindray DPM 7 Patient Monitor w/ CO2 you don’t need to look any further. Give us a call or request a quote and let us help you.

SKU: VM-EDIM50CO2-PM-1-1 Category:

If you need the Mindray DPM 7 Patient Monitor w/ CO2 you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

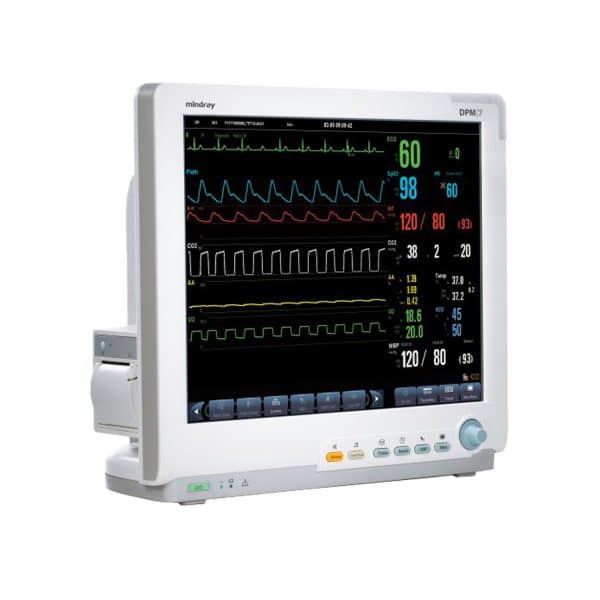

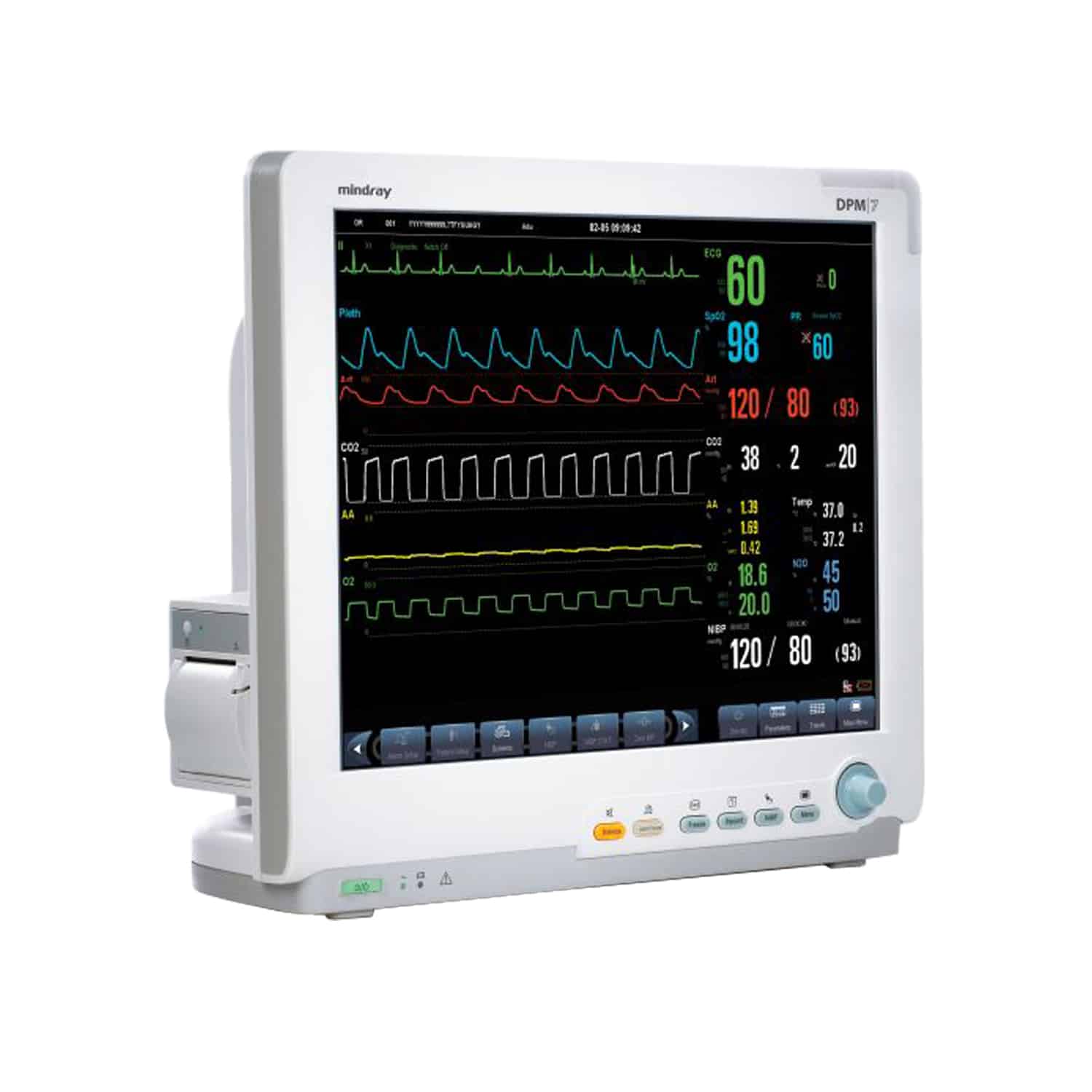

The Mindray DPM 7 Patient Monitor w/ CO2. Featuring a 17-inch touchscreen and a wide range of monitoring capabilities, the DPM 7 is invaluable in the ICU or operating room. It offers clinicians multi-vector arrhythmia detection, along with 3, 5, and 12-lead ECG, RESP, NIBP, ST analysis, CO, CCO/SVO2, CO2, 8 invasive blood pressures, and 5-agent multi-gas analysis with auto-ID and data storage.

The Mindray DPM7 Patient Monitor features a distinctive ECG split-screen feature, enabling operators to view 5-lead ECG while analyzing real-time data. It offers optional conventional or Microstream EtCO2, Masimo SET or Nellcor OxiMax SpO2, and various mounting options.

  • See tabs for more information.

Are you looking for additional monitors and accessories?  Click the following link to view our complete catalog of PATIENT MONITORS FOR SALE | NEW, USED & REFURBISHED.

  • Robust measurement set for mid to high acuity environments
  • Enhanced data storage and recall capabilities
  • 3/5 Lead
  • Arrhythmia and ST analysis (optional)
  • Up to 8 invasive blood pressures (optional)
  • SpO2: Masimo SET or Nellcor OxiMax
  • CO2: DPM Sidestream or Oridion Microstream
  • CCO/SVO2 capability when interfacing with Vigilance II
  • Cardiac output, pulmonary artery wedge pressure, and hemodynamic calculations provide the tools for cardiac monitoring
  • Optional BIS™ technology
  • Available multi-gas module
  • Defibrillator synchronization
  • Wireless 2.4Ghz (802.11g)

Note: Venture Medical offers a wide variety of patient monitors, including monitors with C02. To visit our Catalog of Patient Monitors with Co2, click to view.

Monitor Dimensions:

  • Dimensions: 14.6″ (370 mm) H x 15.7″ (400 mm) W x 7.6″ (193 cm) D
  • Weight: 31.9 lbs. (14.5 kg) including display, MPM, AG module, 2 lithium batteries, recorder, CF components

Monitor Specs:

  • 12.1″ touchscreen display, MPM, and ECG, NIBP, SpO2 accessories
  • AC Voltage: 100 to 240VAC, 50/60Hz

Battery Specs:

  • Current: 2.5 to 1.4A
  • Battery Type: Rechargeable lithium ion
  • Number of Batteries: 2
  • Run Time: Lithium ion: 2hrs using 2 new, fully charged batteries and monitoring ECG, SpO2 and auto NIBP
  • measurements every 15min at 25C
  • Recharge Time: 6 hours maximum
