Mindray DPM7 Patient Monitor – Refurbished

product ID VM-E12M53112

If you need the Mindray DPM7 Patient Monitor you don’t need to look any further. Give us a call or request a quote and let us help you.

ConditionRefurbished
Need Instant Advice? Talk to our experts 800-627-3215
Add to quote
SKU: VM-E12M53112 Category:

If you need the Mindray DPM7 Patient Monitor you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

The Mindray DPM7 Patient Monitor is a powerful multi-parameter patient monitor ideal for ICU or OR environments. It includes a unique split-screen feature. This function allows users to view real-time data alongside a 5-lead ECG for efficient monitoring.

The DPM7 features a 17-inch high-resolution touchscreen that supports easy navigation and comprehensive patient assessment. It monitors arrhythmias, 3, 5, and 12-lead ECGs, RESP, NIBP, ST analysis, CO, and CCO/SVO2. The auto-ID and data storage features enhance workflow and record-keeping.

The DPM7 also optionally supports up to 8 invasive pressures, Co2,  and five-agent gas analysis. These modules are not included in this listing. Contact us for compatibility details or to purchase additional modules separately.

Includes:

  • New ECG Patient Cable and Lead wires
  • New SpO2 Finger Sensor
  • New NIBP Cuff and Hose
  • New Battery
  • New Power Cord
  • Roll of Printer Paper
  • Users Manual

See tabs for more information.

CO2 and Gas module sold separately.

Are you looking for additional monitors and accessories?  Click the following link to view our complete catalog of PATIENT MONITORS FOR SALE | NEW, USED & REFURBISHED.

  • Clear 17” high-resolution color touchscreen
  • Comes standard with lithium-ion batteries
  • Customizable touchscreen quick-action keys for efficiency
  • Large numerics display mode for increased visibility

Note: Venture Medical offers a wide variety of patient monitors, including monitors with C02. To visit our Catalog of Patient Monitors with Co2, click to view.

Manufacturer: Mindray/Datascope

Part Number: (OEM): DPM7

Category: Patient Monitor

Condition: Refurbished

Weight: 32lbs.

Warranty: 12-Months

CONFIGURATION:
(There are many configurations, so price will vary, please contact us for additional information)

Dimensions:

  • Physical Dimensions: 14.6” (370mm) H x 15.7” (400mm) W x 7.6” (193cm) D

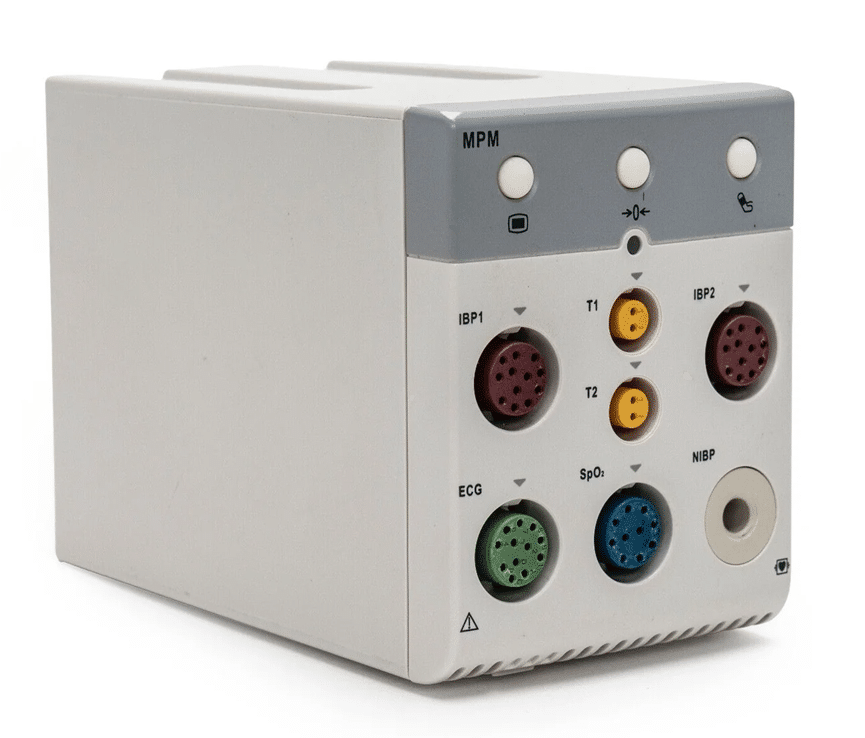

  • Weight: > 31.9lbs (14.5 kg) including display, MPM, AG module, 2 lithium batteries, recorder, CF components
  • Display: 17” (432 mm)
  • Power Supply: 1 AC power connector
  • Network: 2 RJ45 network connectors, 100 BASE-TX
  • Video: 1 standard DVI-D video interface connector
  • Auxiliary output: 1 BNC connector
  • Equipotentiality: 1 equipotential grounding connector IEEE 802.11g WiFi compatible

Environmental:

  • Operating Atmospheric Pressure: 425 – 809 mmHg, 430 – 795 mmHg (Microstream CO2 module), 428 – 790 mmHg (Sidestream CO2 module), 525 – 900 mmHg (AG module)
  • Operating Temperature: 41° – 104°F (5° to 40°C), 32° – 104°F (0°C to 40°C) Microstream CO2 module, 41° – 95°F (5°C to 35°C) Sidestream CO2 module, 50° – 104°F (10°C to 40°C) AG Module
  • Operating Humidity: 15% to 95%, non-condensing
  • Storage Atmospheric Pressure: 120 – 809 mmHg, 430 – 795 mmHg (Microstream CO2 module), 428 – 790 mmHg (Sidestream CO2 module), 525 – 900 mmHg (AG module)

Inspiration Time (Ti):

  • 0.11 to 10 s (adults)
  • 0.1 to 10 s (pediatric patients, neonates)

Power:

  • Input Voltage: 100 to 240VAC
  • Current: 2.8 to 1.6A

Mindray DPM7 Patient Monitor Brochure (click to view)

Mindray DPM7 Quick Reference Guide (click to view)
