Product Description:

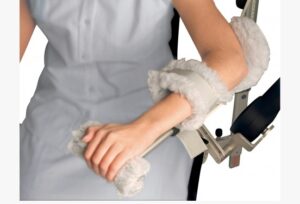

OptiFlex S Shoulder CPM. Designed to provide anatomical motion for the shoulder with enhanced patient comfort, compliance and more beneficial outcomes. Addresses full range of motion capabilities.
Injuries to the shoulder are among the most common sports-related conditions. Throwing, lifting, swinging and reaching put tremendous stress upon the shoulder and, over time, can cause problems. Hot and cold therapies, electrotherapy and ultrasound from Chattanooga Group are often part of initial shoulder rehabilitation programs that later include strength training and range of motion exercises.
Chattanooga Groups’ Opti-Flex®, Model number 2029 is designed to provide anatomical motion for the shoulder, with enhanced patient comfort, compliance and more beneficial outcomes. This device addresses full range of motion capabilities yet easily folds for transport/shipping. Fully synchronized motors allow treatment parameters to be customized to meet patients specific therapy protocols. Easy-to-use hand control for storing treatment data on memory chip card. See tabs for more information.

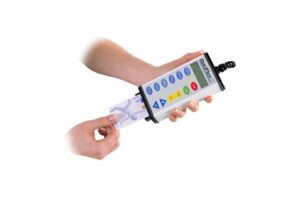

- Easy-to-use hand control for storing treatment data on memory chip card
- Fully synchronized motors allow treatment parameters to be customized to meet patient’s specific therapy protocols
- Ergonomic rest for healthy arm and fully adjustable chair
- Patented Universal left/right Shoulder design
- Folds easily for transport/shipping
- Includes patient data card and erasable pen
- Lightweight design weighs 55 lbs
- Two-year limited warranty
- Motor Control: On/Off
- Pause: 0 – 30 seconds
- Speed: 0 – 100%
- Timer: 1 – 300 minutes
- Warm-Up Mode: 50% of programmed ROM
- Synchronization: On/Off
- Reverse-On-Load: 1 – 20
- Therapy Run Time: h : m
- Patient Data Storage: n/a
- Adduction/Abduction: 0 – 30 – 175°
- Internal/External Rotation: 90 – 0 – 90°
- Flexion/Extension: 0 – 30 – 175°
- Horizontal Adduction/Abduction: 0 – 0 – 125°
- Unit Weight: 55 lb
- Shipping Weight 107 lb
- Dimensions: 34.4″ x 22.6″ x 22.8″
- Transport Size: 14.6″ x 22.6″ x 22.8″
- Safety Tests: CSA – 601-1-M90, UL – 2601-1

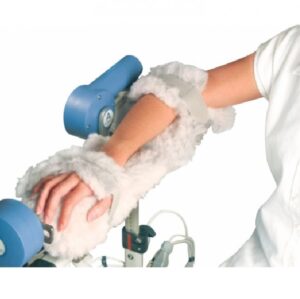

Available Option Sold Separately:
