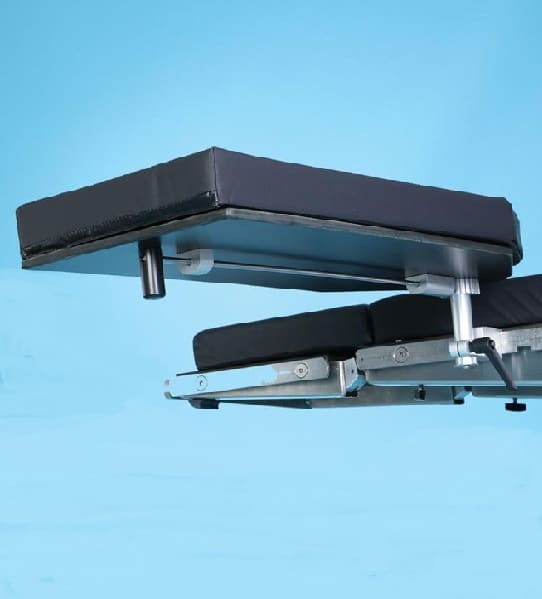

SchureMed Adjustable Height Extra-Wide Armboard: 800-0017. This surgical armboard was created for operating room personnel and accommodates a wide range of needs. Almost twice as wide, it has all the features of our Standard Armboard. SchureMed also offers an adjustable-height, extra-wide armboard with all the features of the adjustable-height armboard.
SchureMed Adjustable Height Extra-Wide Armboard Features: Extra-Wide Armboard measures 11″ x 26.5″L and connects to O.R. table side rails simply and locks securely. To swing the armboard, pull the finger trigger at the end of the armboard, move to the desired position, and then release the trigger and lock tight. It fits standard U.S. operating room table side rails and is lightweight, extremely durable, and radiolucent. See tabs for more information.
To view additional Armboards, click the following link: Venture Medical’s Catalog of Armboards.
Are you looking for additional Table Accessories? Click the following link: Venture Medical’s Surgical Table Accessories.
- Fits standard U.S. operating room table side rails
- Lightweight, extremely durable, and radiolucent.
- Extra-Wide Armboard measures 11″ x 26.5″L
- Connects to O.R. table side rails and locks securely

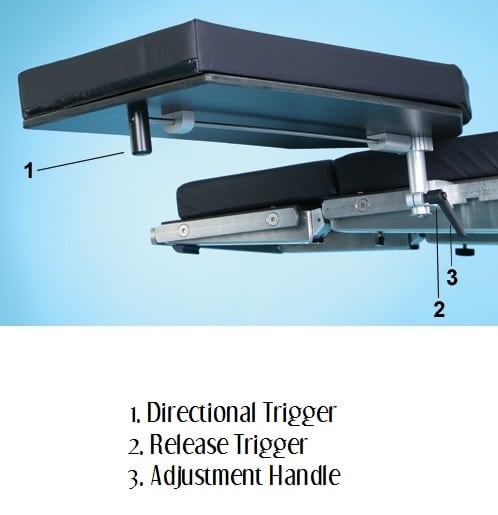

- To swing the armboard, pull the finger trigger at the end of the armboard and move to the desired position
- Release the trigger, and it locks tight
- Pad Sold Separately (see Options)
- Length: 26.5” +/- 0.5”
- Width:11” +/- 0.5”
- Depth: 6.5” +/- 0.5” (with pad)
- Device Weight: 9 +/- 0.5 lbs
- Attaches to the rail of the surgical table anywhere on the rail
- Single-person installation
- Push Release Trigger
- Product not made with (NRL) Natural Rubber Latex
- The device supports a 500 lb proportional patient load (6’4″ tall patient per 99% human body model)
- The product warranty covers the product from manufacturing defects for two years
- Product is maintenance-free
- The life of the device is five years under normal use
Available Options Sold Separately:

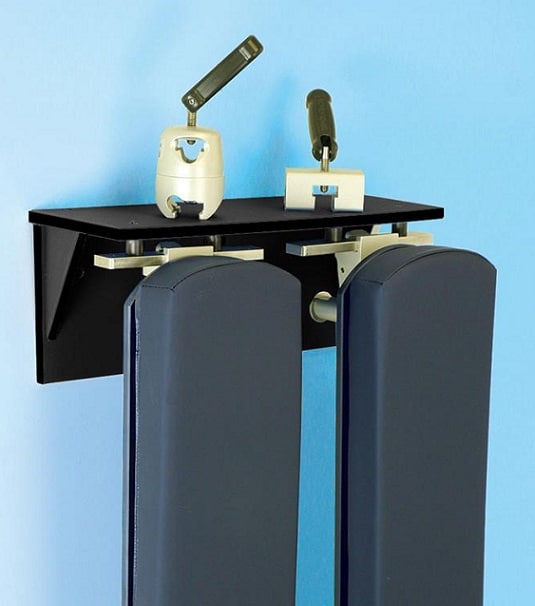

- SchureMed Armboard Holder (See Gallery Image): 800-0296
- Deluxe Extra-Wide 2″ Armboard Pad, 508-0105
- Softcare Extra-Wide 2″ Armboard Pad, 508-0152
