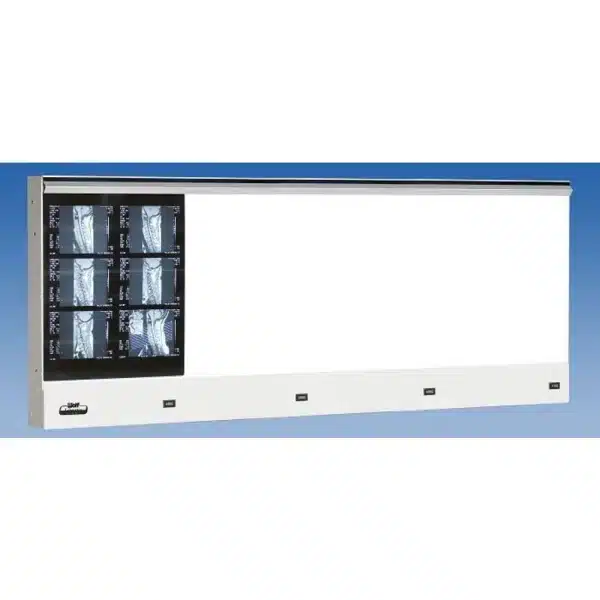

Wolf Hospital Illuminators: The Liberator Series

product ID e68827e3818c
SKU: e68827e3818c Category:

Product Description:

Wolf Hospital Illuminators: The Liberator Series. The Liberator Illuminators are the perfect view boxes for Hospital use, with patented features no other view box can offer! On the Liberator, the film grip is attached to the plexiglass, not the unit’s body. This pre-sets the factory grip tension and cannot be disrupted during installation. The Grip/Plexiglass assembly is held in place by magnets. This allows easy access to the inside of the view box, making bulb replacement and cleaning quick and easy. The Liberator Series consists of two versions: The Liberator 4 Bulb and the Liberator HiLo with a 6 Bulb/4 Bulb switch. Both models can be wall-mounted, recessed, or mounted on a Mobile Stand.

The Liberator offers four lamps per each 14” x 17” viewing area, providing 5150 Candela per square meter. The Liberator is available in 12 sizes or maybe custom-built to your specifications. Multi-tier units are specially designed with only 1-1/2” of “dead space” between the top and bottom viewing panels. The Liberator comes standard with a baked-on white polyester powder finish, film-activated auto switches, a roller grip film retainer, and cluster switches two on two units and up. An 8′ line cord with a hospital-grade plug is standard.

The Liberator HiLo (5 over five shown) provides two light intensities per each 14” x 17” viewing area. Adjustable Candela per square meter at the push of a button. On high 7250 Candela (6 bulbs) or low 5150 Candela (4 bulbs). The Liberator Hi-Lo is available in any one of 12 sizes. The Liberator HiLo features a 3-1/4” deep cabinet with a baked-on white polyester powder finish, a roller grip film retainer, an 8′ line cord with hospital grade plug, film-activated auto switches, and cluster switches on two over two units and up.  See tabs for more information and options.

Looking for an illuminator with a different X-ray layout, special-purpose illuminators, or Accessories? Click to view Venture Medical’s catalog of Wolf X-Ray Viewers / Illuminators or X-ray Accessories.



Liberator Series Features:

  • Perfect view boxes for Hospital use, with patented features no other view box, can offer
  • Film grip is attached to the plexiglass, not the body of the unit
  • The Grip/Plexiglass assembly is held in place by magnets
  • Easy access to the inside of the view box making bulb replacement and cleaning quick and easy
  • The Liberator Series consists of two versions: The Liberator 4 Bulb, and the Liberator HiLo with a 6 Bulb/4 Bulb switch
  • Both models can be wall-mounted, recessed, or mounted on a Mobile Stand

The Liberator Features:

  • The Liberator offers four lamps per each 14” x 17” viewing area
  • 5150 Candela per square meter
  • The Liberator is available in 12 sizes
  • Can be custom-built to your specifications
  • Multi-tier units are specially designed with only 1-1/2” of “dead space” between the top and bottom viewing panels
  • Baked-on white polyester powder finish
  • Film-activated auto switches
  • Roller grip film retainer
  • Cluster switches on 2 over 2 units and up
  • 8′ line cord with hospital grade plug is standard

The Liberator HiLo Features:

  • Two light intensities per each 14” x 17” viewing area
  • Adjustable Candela per square meter at the push of a button
  • On high 7250 Candela (6 bulbs)
  • On low 5150 Candela (4 bulbs)
  • The Liberator Hi-Lo is available in any one of 12 sizes
  • 3-1/4” deep cabinet
  • Baked-on white polyester powder finish
  • Roller grip film retainer
  • 8′ line cord with hospital-grade plug
  • Film-activated auto switches
  • Cluster switches on 2 over 2 units and up

For Specifications on all sizes of the Liberator and the Liberator Hi-Lo click to view Wolf Illuminator Specs

Available Options Sold Separately:

Description/Style & Product Number for The Liberator:

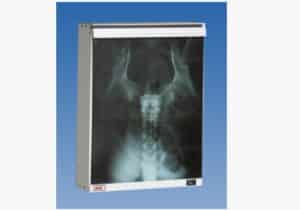

  • Standard 14″ x 17″ (4 Bulbs), 22801

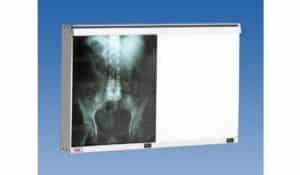

  • 2 in 1 Horizontal (4 Bulbs, 22802
  • 3 in 1 Horizontal (4 Bulbs), 22803

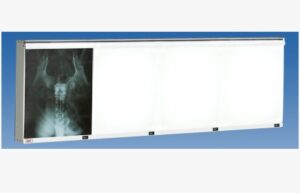

  • 4 in 1 Horizontal (4 Bulbs), 22804
  • 5 in 1 Horizontal (4 Bulbs), 22805
  • 6 in 1 Horizontal (4 Bulbs), 22806
  • 1 over 1 (4 Bulbs), 22811
  • 2 over 2 (4 Bulbs), 22822
  • 3 over 3 (4 Bulbs), 22833
  • 4 over 4 (4 Bulbs), 22844
  • 5 over 5 (4 Bulbs), 22855
  • 6 over 6 (4 Bulbs), 22866

Description/Style & Product Number for The Liberator Hi-Lo:

  • Standard 14″ x 17″ (6 Bulbs), 22901
  • 2 in 1 Horizontal (6 Bulbs, 22902
  • 3 in 1 Horizontal (6 Bulbs), 22903
  • 4 in 1 Horizontal (6 Bulbs), 22904
  • 5 in 1 Horizontal (6 Bulbs), 22905
  • 6 in 1 Horizontal (6 Bulbs), 22906
  • 1 over 1 (6 Bulbs), 22911
  • 2 over 2 (6 Bulbs), 22922
  • 3 over 3 (6 Bulbs), 22933
  • 4 over 4 (6 Bulbs), 22944
  • 5 over 5 (6 Bulbs, shown above), 22955
  • 6 over 6 (6 Bulbs), 22966
