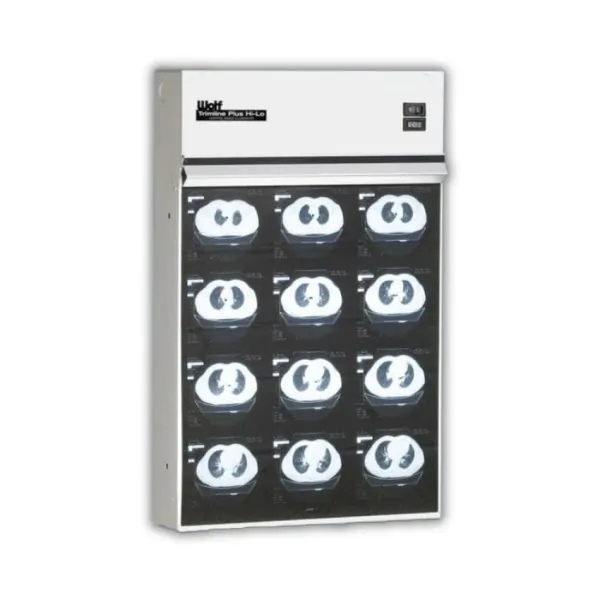

Wolf Trimline Plus Hi-Lo Illuminator

product ID 264bd9420cb9
Add to wishlist
Add to quote
SKU: 264bd9420cb9 Categories: ,

Product Description:

Wolf Trimline Plus Hi-Lo Illuminator 29001. The Trimline Plus Hi-Lo Illuminator provides two light intensities per 14” x 17” viewing area…at the push of a button! On “high” 7250 Candela or on “low” 5150 Candela. The Trimline Plus Hi-Lo features a 3-1/4” deep cabinet with a durable finish and a roller grip film retainer.

Additional Hi-Lo Illuminator Features: Power cord with hospital-grade plug, film-activated auto switches (the illuminator goes on automatically when the film is inserted) and cluster switches, and on two over two units and up. The Trimline Plus Hi-Lo is available in 12 sizes – see Options.  See tabs for more information.

Looking for an illuminator with a different X-ray layout, special-purpose illuminators, or Accessories? Click to view Venture Medical’s catalog of Wolf X-Ray Viewers / Illuminators or X-ray Accessories.

  • Two light intensities per 14” x 17” viewing area at the push of a button
  • On “high” 7250 Candela (6 bulbs)
  • On “low” 5150 Candela (4 bulbs)
  • 3-1/4” deep cabinet
  • Durable Finish
  • Roller grip film retainer
  • 8′ power cord with hospital-grade plug
  • Film-activated auto switches (the illuminator goes on automatically when the film is inserted) and cluster switches on two over two units and up
  • The Trimline Plus Hi-Lo is available in any one of 12 sizes.

Standard Size Specifications:

  • Viewing Area:14” x 17” viewing area
  • On “high” 7250 Candela (6 bulbs)
  • On “low” 5150 Candela (4 bulbs)
  • Finish: Baked-on white polyester powder finish
  • 8′ power cord with hospital-grade plug
  • Wall Mounted Dimensions: 22″ x 14″ x 3.25″
  • Illuminator Weight: 16 lbs.

Note: The Trimline Plus Hi-Lo Illuminator is available in 11 additional sizes – Specifications for additional Sizes,  Wolf Illuminator Specs (click to view)

Available Options Sold Separately, call for pricing:

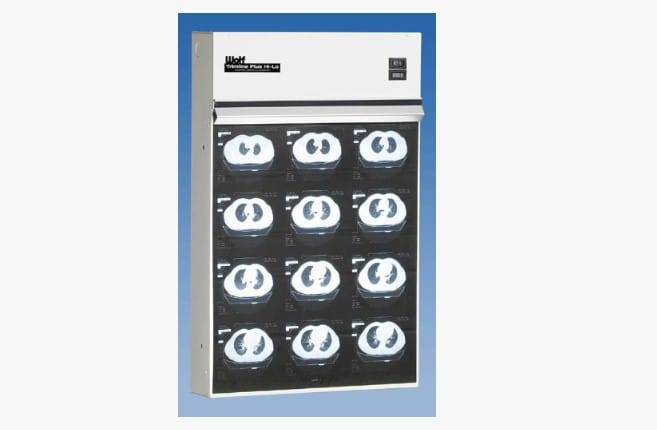

  • Standard 17″ x 14″ (shown above): 29001
  • 2 in 1 Horizontal: 29002
  • 3 in 1 Horizontal – 6 Bulb (shown below left): 29003
  • 4 in 1 Horizontal: 29004
  • 5 in 1 Horizontal: 29005
  • 6 in 1 Horizontal – 6 Bulb: 29006
  • 1 over 1: 29011
  • 2 over 2: 29022
  • 3 over 3 (shown below right): 29033
  • 4 over 4 – 4 Bulb: 29044
  • 5 over 5 – 4 Bulb: 29055
  • 6 over 6: 29066
