Covidien Valleylab FX8 Electrosurgical Unit - Refurbished
Covidien Valleylab FX8 Electrosurgical Unit - Refurbished - Image 2
Covidien Valleylab FX8 Electrosurgical Unit - Refurbished - Image 3

Covidien Valleylab FX8 Electrosurgical Unit – Refurbished

product ID VM-E05M22102

If you need the Covidien Valleylab FX8 Electrosurgical Unit you don’t need to look any further. Give us a call or request a quote and let us help you.

ConditionRefurbished
Need Instant Advice? Talk to our experts 800-627-3215
Add to quote
SKU: VM-E05M22102 Category:

If you need the Covidien Valleylab FX8 Electrosurgical Unit you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

This Covidien Valleylab FX8 Electrosurgical Unit is the latest advancement in the Valleylab™ energy family. Powered by intelligent TissueFect™ technology, the Valleylab™ FX8 platform reads tissue composition in real time. It monitors and adjusts energy delivery based on tissue impedance for precise performance. This next-generation platform ensures consistent clinical tissue effects using lower energy levels.

The FX* supports a wide range of procedures requiring division, hemostasis, and dissection. The system offers cut, coag, and soft coag modes for surgical flexibility. Valleylab™ mode combines monopolar hemostasis and division in a single setting. Shared Coag mode allows two surgeons to operate simultaneously using one energy platform.

The FX8 offers precise monopolar and bipolar energy, five times better power control than the ForceTriad™ system, and tissue monitoring that’s 2,600 times faster than the Force FX™ generator — all while maintaining appropriate thermal spread.

  • See tabs for more information.

Are you looking for a specific Electro-surgical Unit or Accessory?  Click the following link to view our complete catalog of New or Completely Refurbished Electro-Surgical  Units.

Have Questions? Contact us today for questions or available options to fit your specific needs!

  • 6.2″ LCD Touchscreen
  • Cut, coag, and soft coag modes
  • Shared coag mode allows two surgeons to work on the same patient at the same time
  • Precise monopolar and bipolar energy
  • Power control during monopolar energy delivery that’s five times better than the ForceTriad energy platform
  • Tissue monitoring that’s 2,600 times faster than the Force FX
  • Appropriate thermal spread
  • Valleylab mode provides a unique combination of monopolar hemostasis and division

Dimensions:

  • Height: 14.6 cm (5.73 in)
  • Width: 33.5 cm (13.18in)
  • Length: 43.6cm (17.15in)
  • Weight: 8.8kg (19.5lb)

General:

  • Output configuration: Isolated output
  • Cooling: Natural convection and fan
  • Display: 15.7 cm (6.2 in) LCD touchscreen
  • Enclosure: Magnesium
  • Mounting

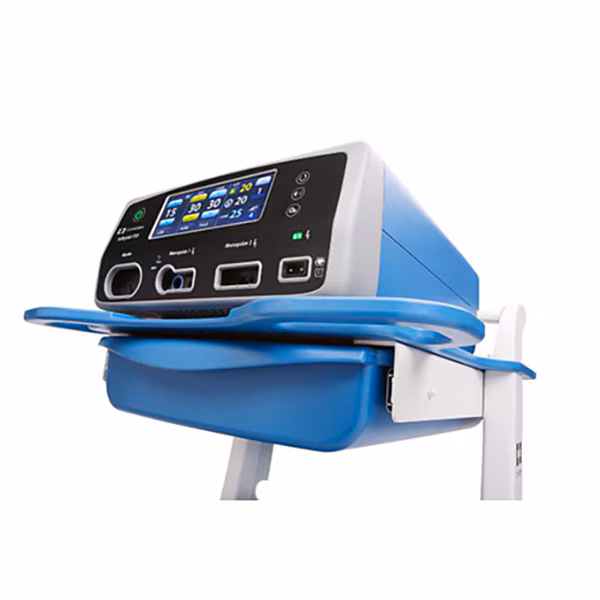

    • Valleylab™ universal generator cart (VLFTCRT)
    • Operating room boom systems
    • Any stable, flat surface such as a table or cart top

Operating Parameters:

  • Ambient temperature range: 10°C to 40°C (50°F to 104°F)
  • Relative humidity: 15% to 85% non-condensing
  • Atmospheric pressure: 700 to 1060 millibars

Temperature and Storage

  • Ambient temperature range: -10°C to 60°C (14°F to 140°F)
  • Relative humidity: 15% to 90% non-condensing
  • Atmospheric pressure: 500 to 1060 millibars

Input Power 100-127 VACe:

  • Line Ranges
    • Line Voltage Full Regulation Range: 90–140 VAC
    • Line Frequency: 47–63 Hz
  • Max VA Nominal Line Voltage: 660 VA
  • Max Mains Current: 6.6 ARMS
  • Max Heat Dissipation 180 W
  • Fuses
    • 10 A
    • Fuses (2) – 5 mm x 20 mm
    • 10 A, 250 V fast blow

Input Power 220-240 VAC:

  • Line Ranges
    • Line Voltage Full Regulation Range: 198-264 VAC
    • Line Frequency: 47–63 Hz
  • Max VA Nominal Line Voltage: 660 VA
  • Max Mains Current: 3.0 ARMS
  • Max Heat Dissipation 180 W
  • Fuses
    • 6.3 A
    • Fuses (2) – 5 mm x 20 mm
    • 6.3 A, 250 V fast blow
  • E6008 Monopolar footswitch
  • E6009 Bipolar footswitch
  • VLFTCRT Cart for FX8 and FT10

Valleylab FX8 Electrosurgical Brochure (click to view)

Valleylab FX8 Energy Platform Specification Guide (click to view)
