Home / Products / Imaging Tables / Pain Management / C-Arm Tables / Oakworks CFPM301 Imaging Table: Rectangular Top

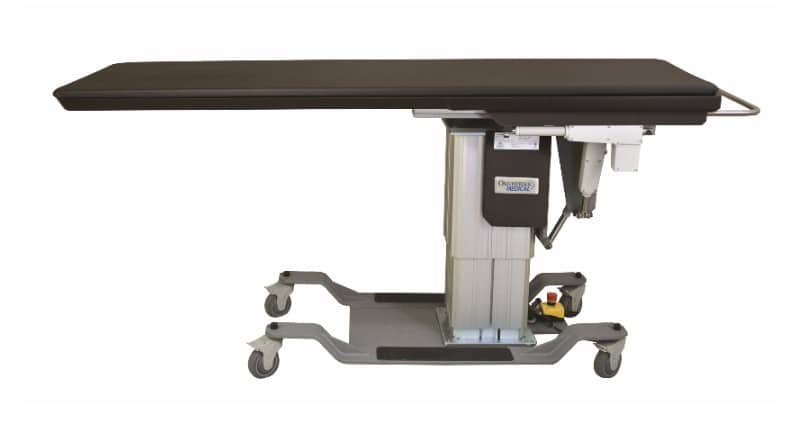

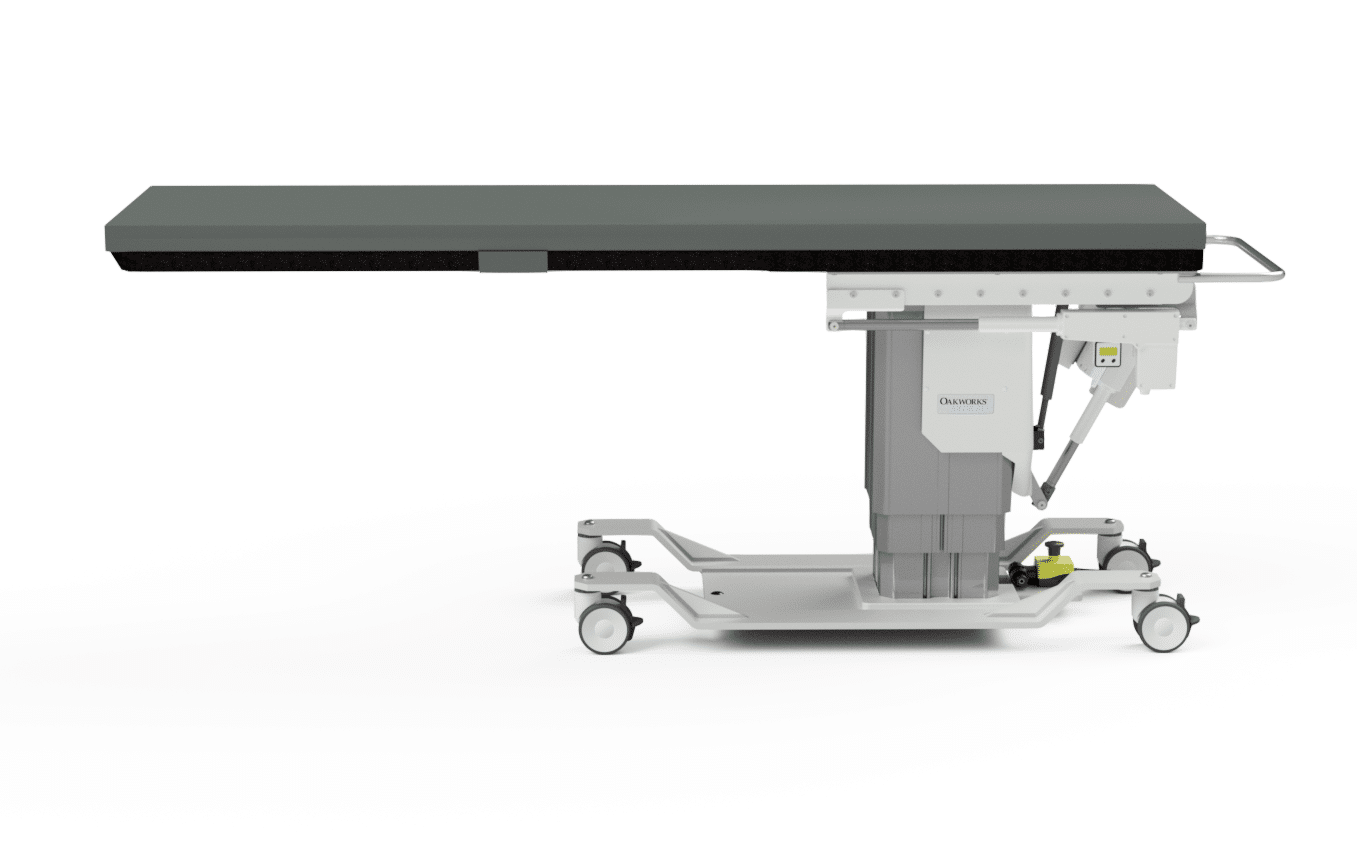

Oakworks CFPM301 Imaging Table: Rectangular Top. The Oakworks brand Incorporates a reputation for high quality and reliability. The CFPMB301 features 3 Powered Motions: Height, Trendelenburg Tilt, and Longitudinal Travel. The patient Weight Capacity is 500 lbs. Safety Listings – FDA Listed, CE marked, cETLus approved, CB Certificate and comes with a Warranty.
Additional CFPM301 Features: Adjustable Height Range: Powered Height Range of 26″ to 44″ accommodates low height patient wheelchair transfers to maximum height C-Arm mobility requirements for full lateral imaging. Additional Powered Movements: +15/-11° Trendelenburg Tilt and 10″ Longitudinal Travel. The CFPMB301 has 56″ of the metal-free imaging area, 24″x80″ Rectangular Top. See tabs for more information.
- Carbon Fiber Top – 56 in. Metal-free imaging space
- Top Dimensions – 24 in. wide x 80 in. long
- Motion 1 Electric Height Range 26 in. – 44 in.
- Motion 2 Electric Trendelenburg tilt +15°/-11°
- Motion 3 Electric Longitudinal travel 10 in.

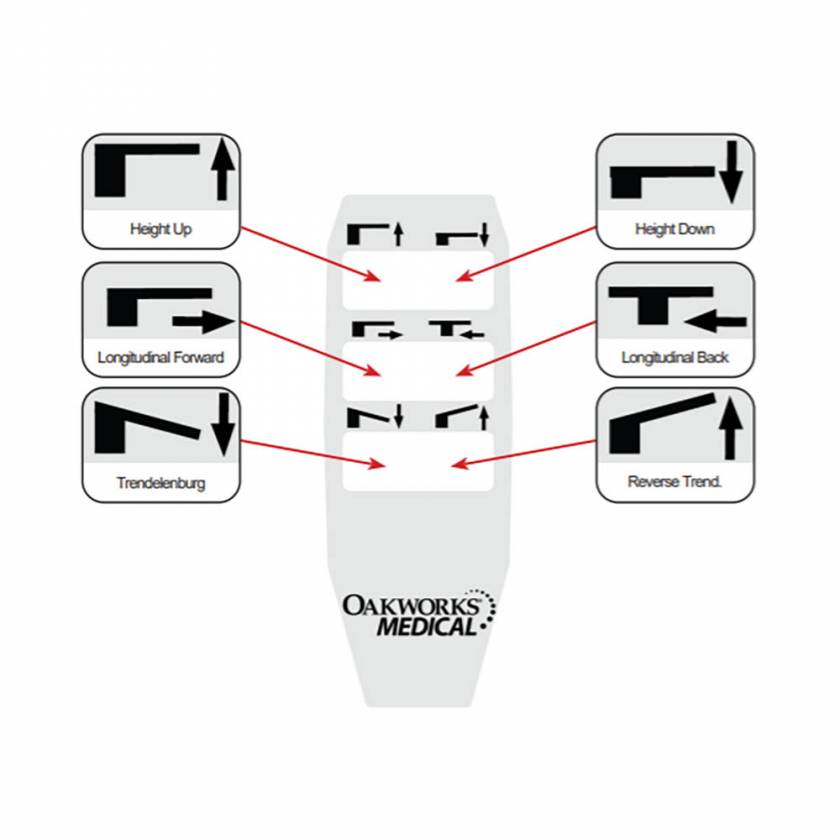

- Multi-function hand control
- Weight Capacity – 500 lb

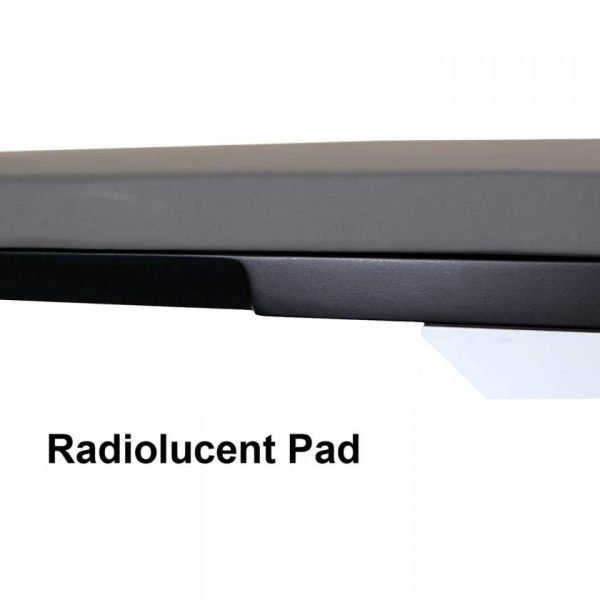

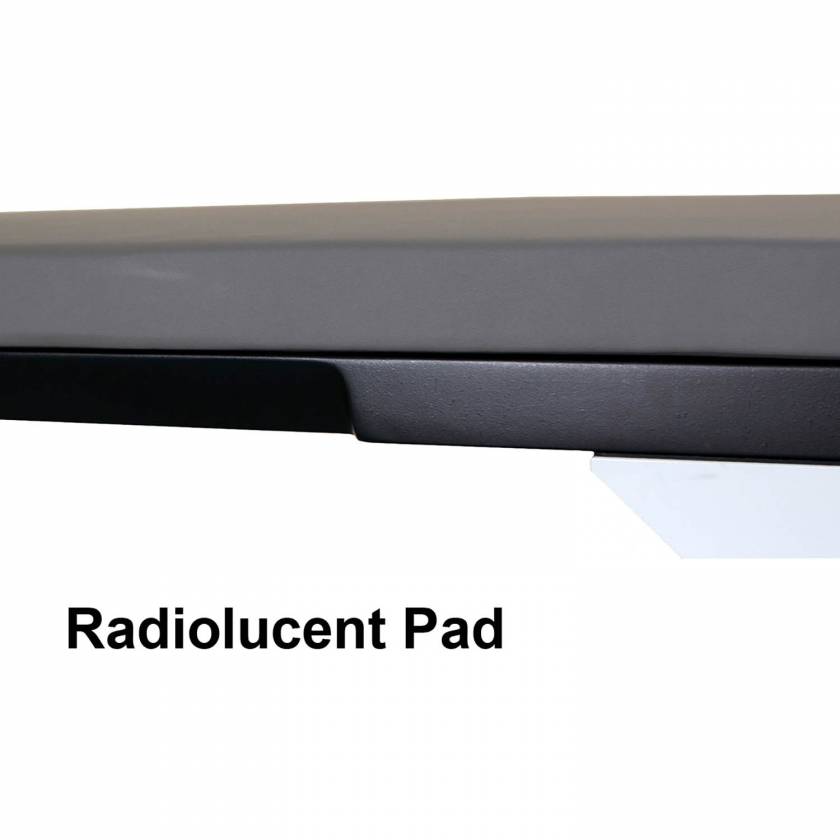

- Included Features – 1 in. Radiolucent Comfort Foam™ tabletop pad
- Comes standard with Hand Control

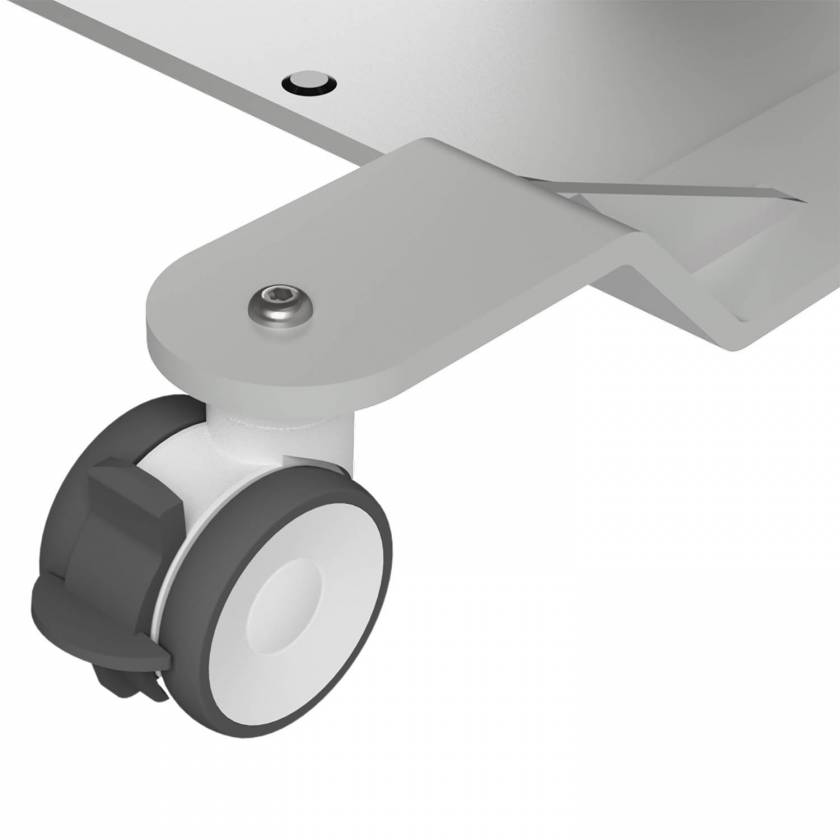

- 4 in. locking casters,
- Includes Patient safety straps (2)
- Safety Listings – FDA Listed, CE marked, cETLus approved, CB Certificate
- Patient Weight Capacity: 500 lbs.
- Carbon Fiber Top: 24″ x 80″
- Motion 1: height range 26″ – 44″
- Motion 2: Trendelenburg tilt +15/-12°
- Motion 3: 10″ longitudinal travel
- Control: 1 hand (3 motion)
- Table Weight: 475 lbs.
- Warranty: 3 years parts, 2 years labor
- Certifications: FDA listed, cETL approved, CE marked
Oakworks CFPM301 Brochure (click to view)
Oakworks CFPM300 Video: (click to view)
Available Options Sold Separately:
- 2 in. Table Top Pad Upgrade: 73190-T01
- 5 in. Casters: 65427
- Foot Control
