ADC Macintosh Fiberoptic: 2.5v Halogen: 4074F
ADC Macintosh Fiberoptic: 2.5v Halogen: 4074F
product ID
d3382bd87c58
Home / Products / Cardiac, CPR & Airway / Laryngoscopes and Intubation / ADC Macintosh Fiberoptic: 2.5v Halogen: 4074F
Product Description:

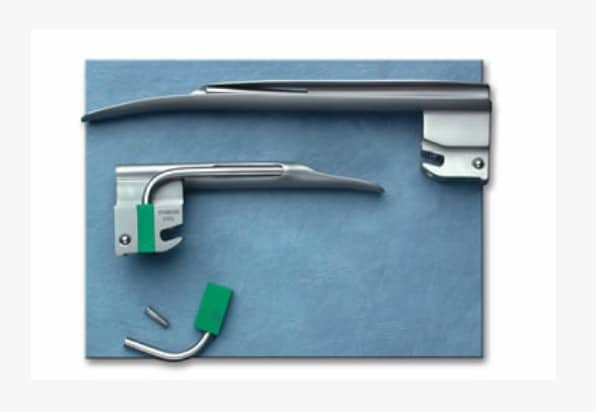

ADC’s Macintosh Fiberoptic with 2.5v Halogen: 4074F Halogen illumination provides true tissue color and long-lasting lamp performance. The fiberoptic light transmission provides cool, obstruction-free viewing, and the removable light pipe facilitates cleaning and service. Constructed with Stainless steel, it has a Satin non-glare finish—color-coded green to signify compatibility ONLY with other Fiberoptic handles. Note: Each size is sold separately – not sold in a set. Price reflects all sizes. See tabs for more information.
Are you looking for Different Sizes, Styles, or Battery Handles? Click to view Venture Medical’s catalog of Laryngoscope and Intubation products.
- Stainless steel construction with Satin non-glare finish
- The fiberoptic light transmission provides cool, obstruction-free viewing
- Halogen illumination for true tissue color and long-lasting lamp performance
- Removable light pipe facilitates cleaning and service
- Color-coded green to signify compatibility ONLY with other fiber optic handles
- Fully compatible with all major brands of laryngoscopes conforming to ASTM F965 or ISO 7376
ADC Macintosh Fiberoptic 2.5v Halogen, 4074F General Specifications:
- Construction: Stainless Steel
- Finish: Satin, Non-Glare
- Illumination: 2.5v Halogen
- Fully compatible with all major brands of laryngoscopes conforming to ASTM F965 or ISO 7376
ADC Macintosh Fiberoptic: 2.5v Halogen Blades, Size Specifics:
- Size 0, Preemie 4070F: Dimension A – 80 mm, Dimension B – 55 mm
- Size 1, Infant 4071F: Dimension A – 192 mm, Dimension B – 67 mm
- Size 2, Child 4072F: Dimension A – 108 mm, Dimension B – 83 mm
- Size 3, Med. Adult 4073F: Dimension A – 126 mm, Dimension B – 101 mm
- Size 4, Lg. Adult 4074F: Dimension A – 155 mm, Dimension B – 134 mm
Available Options Sold Separately:
Sizes:
- Size 0-Preemie: 4070F
- Size 1-Infant: 4071F
- Size 2-Child: 4072F
- Size 3-Med. Adult: 4073F
- Size 4-Lg. Adult: 4074F
Light Pipes:
- Light Pipe for 4070F: 4070FLP-00
- Light Pipe for 4071F: 4071FLP-00
- Light Pipe for 4072F: 4072FLP-00
- Light Pipe for 4073F: 4073FLP-00
- Light Pipe for 4074F: 4074FLP-00
