ADC Digital Aneroid E-Sphyg Sphygmomanometer

product ID 5203996a8b26
SKU: 5203996a8b26 Categories: ,

Product Description:

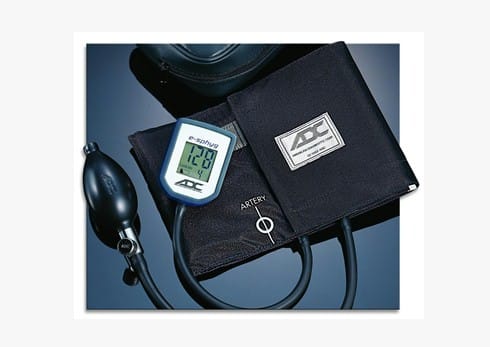

ADC’s Digital Aneroid Sphygmomanometer model number 7002-13 (thigh) is the world’s first Digital Aneroid Sphygmomanometer.  The E-sphyg replaces your mechanical gauge and its fragile, vulnerable design with a virtually indestructible digital instrument that can stand up to the toughest use.  The E-Sphyg’s virtually indestructible design can withstand repeated drops of 5 feet or more.  It has an extra large back-lit LCD with 7/8″ digits and is easily read in almost any light.  Splash-resistant housing for use in harsh environments and a swivel cuff clip allow the manometer to be re-positioned for easy viewing.

The Digital Aneroid E-Sphyg Sphygmomanometer Features Include an Auto-Off function which conserves battery strength.  This E-Sphyg also features a dual low battery warning.  A Re-calibration reminder after 10,000 cycles (re-calibration is free for the instrument’s life).  Systolic assistance alerts practitioners to the onset of Korotkoff sounds – makes a great training aid and the deflation rate display promotes proper technique in accordance with AHA guidelines. The pulse rate is displayed after the measurement is completed.  The Manometer works with virtually every cuff on the market and requires familiar and trusted manual auscultation to obtain blood pressure readings (use of stethoscope).  2 “AAA” batteries (included).  It may be ordered as a complete sphygmomanometer or gauge only for use with existing inflation systems—lifetime calibration warranty.

Please Note: The price shown reflects the Thigh model.  Call for price on Large Adult, small adult, infant, or Child.  See tabs for more information.

  • Virtually indestructible design can withstand repeated drops of 5 feet or more
  • Extra large back-lit LCD with 7/8” digits, is easy to read in virtually any light
  • Splash-resistant housing for use in harsh environments
  • The Swivel cuff clip allows the manometer to be re-positioned for easy viewing
  • Auto-off function conserves battery strength
  • Dual low battery warnings
  • Re-calibration reminder after 10,000 cycles (re-calibration is free for the life of the instrument)
  • Systolic assist alerts the practitioner to the onset of Korotkoff sounds – makes a great training aid
  • Deflation rate display promotes proper technique in accordance with AHA guidelines
  • The pulse rate is displayed after the completion of the measurement
  • Manometer works with virtually every cuff on the market
  • Requires familiar and trusted manual auscultation to obtain blood pressure readings (use of stethoscope)
  • 2 “AAA” batteries (included)
  • May be ordered as a complete sphygmomanometer or gauge only for use with existing inflation systems
  • Lifetime calibration warranty
  • Sphyg Type: Digital Aneroid
  • Gauge: 8002
  • Gauge Warranty: Lifetime
  • Sphyg Accuracy: +/-3mmHg @ 50ºF(10ºC) – 104ºF(40ºC)
  • Sphyg Accuracy: at extended temperature range +/-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC)
  • Storage Temp: -4ºF (-20ºC) – 131ºF(55ºC)
  • Valve Type: ADFLOW
  • Number of tubes: 2 Tubes
  • Cuff type: ADCUFF
  • Cuff size: Infant
  • Cuff Range: 9-14cm
  • Inflation Warranty: 3 Year
  • Zipper case: 880

Note:  Hover the mouse over any color buttons below to view the color code to order color choices.

Available Colors for Thigh:



Available Colors for Large Adults:



Available Colors: Adult



Available Colors: Small Adult



Available Colors: Child



Available Colors: Infant



Please Note: Colors may vary with individual monitor settings and capabilities.

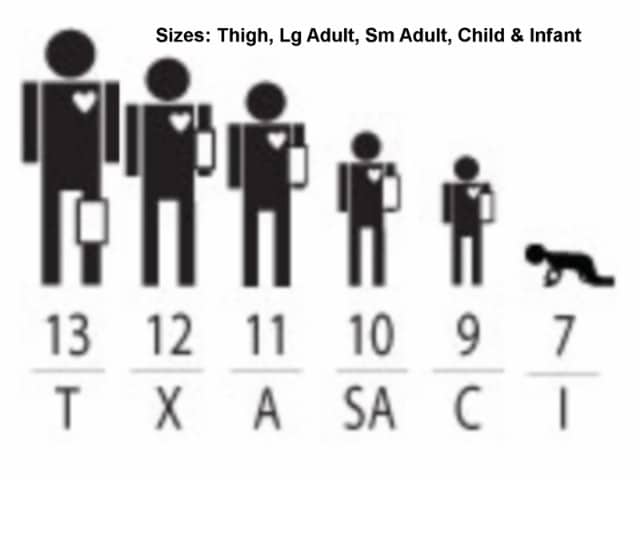

Available Sizes Sold Separately:

  • Thigh Cuff: 7002-13-T + Color Code
  • Large Adult Cuff: 7002-12-X + Color Code
  • Adult Cuff: 7002-11-A + Color Code
  • Small Adult Cuff: 7002-10-SA + Color Code
  • Child Cuff: 7002-9-C + Color Code
  • Infant Cuff: 7002-7-I + Color Code
