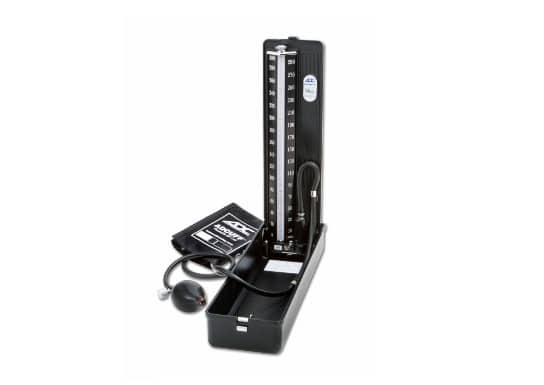

ADC Diagnostix™ 922 Series Desktop Mercury Sphyg

product ID 70f83535e255
Add to wishlist
Add to quote
SKU: 70f83535e255 Categories: ,

Product Description:

ADC Diagnostix™ 922 Series Desktop Mercury Sphyg.  A portable desktop mercury instrument that follows the quality tradition of ADC sphygmomanometers.  The 922 Series Features: Rugged die-cast aluminum housing with textured black baked enamel finish, A Fold-down cover with a spring lock mechanism, and High visibility red graduations.  The product is Assembled, Inspected, and Packaged in the U.S.A.

Additional 922 Series Features: The graduated unbreakable plastic cartridge tube features a 4.00 mm inside bore for unrestricted, friction-free mercury flow.  The filter system keeps mercury clean for reliable performance, and the Locking reservoir secures mercury during storage, transport, or maintenance. Adcuff™ black nylon cuff with ADC’s proprietary Size Guide™ marking system prevents miss-cuffing, an Adflow™ bulb, and a valve with filter screen protection.  The 922 is available in Black only and has a Lifetime warranty on the cartridge tube.  See Tabs for more information.

Note:  This product has been Discontinued; call for availability.

  • Rugged die-cast aluminum housing
  • Textured black baked enamel finish
  • Fold-down cover with a spring lock mechanism
  • Graduated unbreakable plastic cartridge tube
  • Cartridge Tube: 4.00 mm inside bore for unrestricted, friction-free mercury flow
  • High visibility red graduations
  • The filter system keeps mercury clean for reliable performance
  • The locking reservoir secures mercury during storage, transport, or maintenance
  • Adcuff™ black nylon cuff
  • Size Guide™ marking system prevents miss-cuffing
  • Dip-molded latex inflation bladder withstands heavy use
  • Latex inflation bulb fitted with filter screen end valve reduces dust build-up
  • Adflow™ chrome-plated brass air release valve
  • Available in latex-free
  • Lifetime warranty on cartridge tube
  • Sphyg Type: Desktop Merc
  • Gauge: NA
  • Gauge Warranty: Lifetime
  • Sphyg Accuracy: +/-3mmHg @ 50ºF(10ºC) – 104ºF(40ºC)
  • Sphyg Accuracy: at extended temperature range +/-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC)
  • Storage Temp: -4ºF (-20ºC) – 131ºF(55ºC)
  • Valve Type: ADFLOW
  • Number of tubes: 2 Tubes
  • Cuff type: ADCUFF
  • Cuff Range (Adult): 23-40cm
  • Inflation Warranty: 3 Year
  • Cuff color: Black
  • Zipper case: NA

Note: Many states and municipalities have restricted or banned, in their entirety, the sale of products containing mercury, including mercury sphygmomanometers. The link below provides information about current ordinances. Please contact your local EPA branch for guidance on restrictions in your state.

Mercury Law Table (click to view)

Available Color:

Please Note: Color may vary with individual monitor settings and capabilities.

Available Cuff Options/Sizes Sold Separately:

  • ADC Diagnostix™ 922-10SABK Thigh
  • ADC Diagnostix™ 922-12XBK Large Adult
  • ADC Diagnostix™ 922-11ABK Adul
  • ADC Diagnostix™ 922-10SABKSmall Adult
  • ADC Diagnostix™ 922-9CBK Child
  • ADC Diagnostix™ 922-7IBK Infant

Note: Available in Black only.
