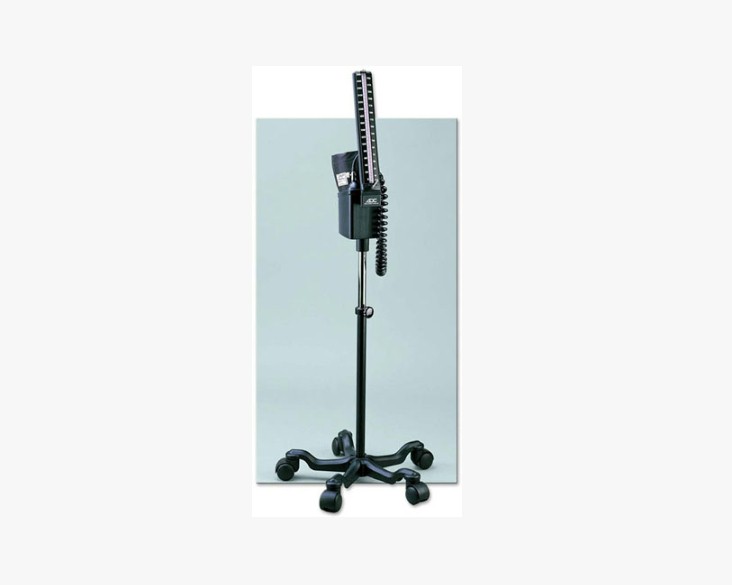

ADC Diagnostix™ 972 Series, Mobile Sphygmomanometer: 972-11A

ConditionNew
Need Instant Advice? Talk to our experts 800-627-3215

Product Description:

ADC Diagnostix™ 972 Series, Mobile Sphygmomanometer: 972-11A.   A mobile sphygmomanometer that combines unsurpassed institutional reliability with trouble-free service.  Rugged housing constructed of a combination of virtually indestructible ABS and die-cast aluminum with a graduated unbreakable plastic cartridge tube features a massive 5.00 mm inside bore for unrestricted, friction-free mercury flow.  The white oversized numerals on a contrasting black scale combined with high visibility red graduations for easy reading.  The EZ-TubeTM system allows safe, simplified maintenance of the cartridge tube or top cap filters and additional safety provided by the locking reservoir, which secures mercury for transport or maintenance.  Spider-LegTM, five-leg weighted base for stability with 2″ casters for easy mobility.  It also has an integral ABS cuff storage compartment in the main unit.

Height-adjustable stand from 40″ to 54″ (from the bottom of the base to the top of the unit).  Scale angled back 15° for improved readability and the AdcuffTM black nylon cuff with ADC’s proprietary Size GuideTM marking system prevents miss-cuffing.  Dip molded latex inflation bladder, bulb, The Adflow™ chrome-plated brass air ReleaseTM chrome-plated brass air release, and end valves with filter screen protection.  Complete with an 8-foot length (when extended) of coiled latex tubing, includes all assembly tools and hardware: some assembly required—lifetime warranty on cartridge tube. See tabs for more information or view sizes: Thigh, Large Adult, Adult, Small Adult, Infant, or Child.

Note: This product has been Discontinued; call for availability.

  • Rugged housing constructed of a combination of virtually indestructible ABS and die-cast aluminum
  • Graduated unbreakable plastic cartridge tube
  • Massive 5.00 mm inside bore for unrestricted, friction-free mercury flow
  • White over-sized numerals on a contrasting black scale combined
  • High visibility red graduations for easy reading
  • EZ-Tube™ system allows safe, simplified maintenance of the cartridge tube or top cap filters
  • Additional safety is provided by the locking reservoir
  • Spider-Leg™, 5-leg weighted base for stability
  • 2″ casters for easy mobility
  • Integral ABS cuff storage compartment in the main unit
  • Height-adjustable stand from 40″ to 54″ (from the bottom of the base to the top of the unit)
  • Scale angled back 15° for improved readability
  • Adcuff™ black nylon cuff with ADC’s proprietary Size Guide™ marking system prevents miss-cuffing
  • Dip molded latex inflation bladder and bulb
  • Adflow™ chrome-plated brass air release and end valves with filter screen protection
  • Complete with an 8-foot length (when extended) of coiled latex tubing
  • Includes all assembly tools and hardware
  • Available in latex-free
  • Inspected and packaged in the U.S.A. from foreign components
  • Lifetime warranty on cartridge tube
  • Some Assembly Required
  • Sphyg Type: Mobile Merc
  • Gauge: NA
  • Gauge Warranty: Lifetime
  • Sphyg Accuracy: +/-3mmHg @ 50ºF(10ºC) – 104ºF(40ºC)
  • Sphyg Accuracy:
  • at extended temperature range +/-3mmHg or 2% whichever is greater @ <50ºF (10ºC) and >104ºF (40ºC)
  • Storage Temp: -4ºF (-20ºC) – 131ºF(55ºC)
  • Valve Type: ADFLOW
  • Number of tubes: 2 Tubes
  • Cuff type: ADCUFF
  • Cuff size: Adult
  • Cuff Range: 23-40 cm
  • Inflation Warranty: 3 Year
  • Cuff color: Black
  • Some Assembly Required

Note: Many states and municipalities have restricted or banned, in their entirety, the sale of products containing mercury, including mercury sphygmomanometers. The link below provides information about current ordinances. Please contact your local EPA branch for guidance on restrictions that might exist in your state.

Mercury Law Table (click to view)

Available 952B Series Color for all Sizes:  Hover the mouse over the color button below to view the color code to order.

ADC

Please Note: Colors will vary with individual monitor settings and capabilities.

Available Options Sold Separately:

  • Thigh Cuff 972-13TBK
  • Large Adult Cuff: 972-12XBK
  • Adult Cuff: 972-11ABK
  • Small Adult Cuff: 972-10SABK
  • Child Cuff: 972-9CBK
  • Infant Cuff: 972-7IBK
