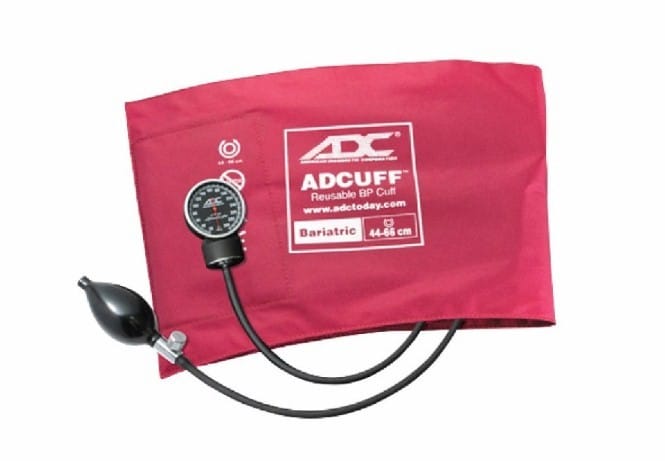

ADC Bariatric Diagnostix™ Bariatric Pocket Aneroid Sphyg: 720-12BXBD

Product Description:

ADC Bariatric Diagnostix™ Bariatric Pocket Aneroid Sphyg: 720-12BXBD.  The Best Design and the Finest Components.  ADC products are manufactured from the finest materials with an uncompromising commitment to craftsmanship and durability.

We offer proprietary features not found anywhere else! Features like gasket-sealed chestpieces, Adsoft Plus silicone ear tips, the Adcuff with Size Guide marking system, and our remarkable gauge movements.  Compare the quality and performance and, most importantly, the value – and you’ll discover the ADC difference.  Available in Burgundy only.  See tabs for more information.

  • Precision crafted 300 mm Hg Japanese engineered manometer with classic black baked enamel finish exceeds industry performance standards
  • Extended-scale plate graduation marks reduce parallax for easier viewing from virtually any angle

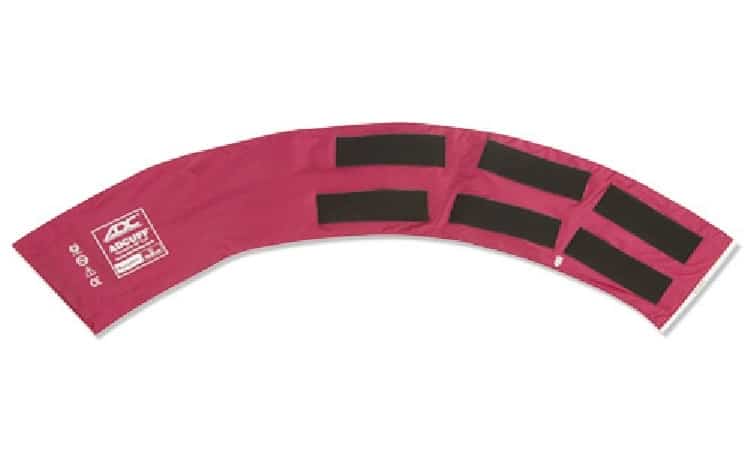

  • Bariatric Adcuff™ nylon cuff with ADC’s proprietary Size Guide™ marking system prevents miss-cuffing
  • Custom-sized inflation bladder with one 50 cm and one 25 cm tube

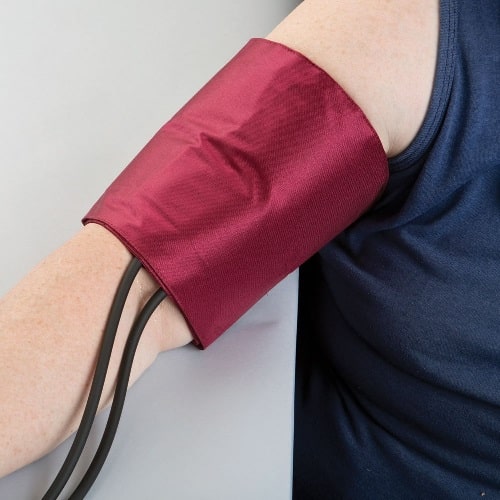

  • Curved design provides a better fit on conically shaped bariatric arms
  • Fits limbs with a circumference of 44 cm to 66 cm
  • Adflow™ over-sized bulb and valve (#872LN) with filter screen protection allows for faster inflation of the more oversized cuff
  • Adflow™ filter screen check and deflation valve reduce dust build-up
  • Adflow™ chrome-plated brass air release valve for precise deflation control
  • Over-sized leatherette carrying case with durable nylon zipper
  • Not made with natural rubber latex
  • Assembled, inspected, and packaged in the U.S.A. from foreign components
  • Meets or exceeds ANSI/AAMI/ISO 81060-1
  • Sphyg Type: Pocket
    Gauge: 802
  • Gauge Warranty: Lifetime
  • Accuracy: +/-3mmHg @ 50ºF(10ºC) – 104ºF(40ºC)
  • Accuracy @ Extended Temperature Range: +/-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC)
  • Operating Temp: 50ºF(10ºC) – 104ºF(40ºC)
  • Storage Temp: -4ºF (-20ºC) – 131ºF(55ºC)
  • Valve Type: ADFLOW
  • Number of Tubes: 2
  • Cuff Type: ADCUFF
  • Cuff Size: Bariatric
  • Cuff Range: 40-66 cm
  • Cuff Color: Burgundy
  • Infl System  Warranty: 3 Year
