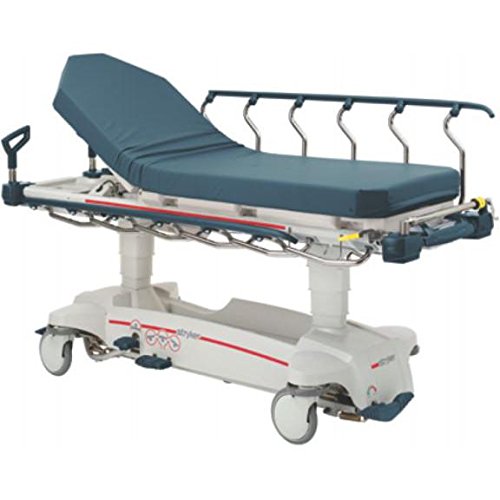

Stryker M-Series Stretcher | Stryker SM104 Stretcher

product ID VM-STKSM104STR-R

The Stryker 1005 / SM104  (M-Series) Stretcher is quickly becoming the leading choice of the industry.  The increased weight capacity and sleek design makes it an easy choice for your facility.

SKU: VM-STKSM104STR-R Category:

The Stryker 1005 / SM104  (M-Series) Stretcher is quickly becoming the leading choice of the industry.  The increased weight capacity and sleek design makes it an easy choice for your facility.

Product Description:

Across the country, the percentage of overweight adults continues to increase yearly. Stryker has taken the initiative to provide an innovative product line that safely accommodates those suffering from obesity. Stryker’s Stretchers offers many exclusive features to help caregivers safely and efficiently provide the best possible care for patients.

The Stryker SM104 Stretcher Features: Mobility, Simplicity, and Versatility. Fully equipped and completely adaptable, the M-Series allows you to choose the mobility solution that best suits your needs. Supremely mobile and user-friendly, these stretchers significantly reduce the physical strain on clinicians without sacrificing patient care and comfort. Power-washable design with a 700-pound Weight Capacity, the Litter-Mounted Oxygen Bottle Holder helps eliminate caregiver bending.

Additional Features:

  • Glideaway™ side rails create a Zero-Transfer Gap
  • Optional Integrated Scale System (sold separately) provides Accurate, Repeatable Weights.

The Stryker M-Series Stretcher model number SM104 features all standard features plus fifth-wheel steering, using a retractable fifth wheel to provide superior maneuverability and cornering.  See tabs for more information and a wide variety of options.

Are you wondering about our Refurbishing Process? Check out our blog, where we explain it all. ‘Doing it Right: Explaining the Refurbishing Process’

  • Fifth-wheel steering
  • Thermoformed ABS base with extra capacity storage tray
  • 700 lb weight capacity
  • 26″ wide patient surface with 3″ Enhanced Comfort Mattress
  • Less than 21″ low height
  • Integrated utility tray
  • Litter-mounted oxygen bottle holder
  • Integrated transfer board
  • Power-washable design
  • Four-wheel, steel-ring brake system with dual-end activators
  • Dual side-mounted foot control hydraulics with uni-lower pedal
  • Glideaway™ side rails with integrated push/pull handles
  • Four integrated IV receptacles
  • Trend./Reverse Trend.
  • 8″ Omni Surface™ Casters with integrated wheel covers
  • Pneumatic backrest/stationary foot
  • Constant descent hydraulics
  • Dual-end brake & steer controls
  • 26″ Litter
  • Overall length: 84″
  • Overall width, side rails up 33.5″
  • Overall width, side rails down 30.25″
  • Weight capacity: 700 lbs
  • High Height range: 34.5″
  • Low Height range: 20.75
  • Litter Positioning: Backrest 0º – 90º, Knee Gatch 40º, Trend./Reverse Trend.: ±16º
  • Maximum Angle: 87.5º
  • Patient Surface: 26″ x 75.25″
  • Side Rails: 14″ x 57.75″
  • Caster Diameter: 8″

Available Options Sold Separately:

  • Basic IV Pole
  • Available in 30″ Litter
  • 4″ Enhanced Comfort Mattress
  • 4″ Ultra Comfort Mattress
  • Four-sided brake & steer controls
  • Pop-up push handles
  • No-crank hydraulic knee gatch
  • Exclusive backrest lift-assist design with drop seat
  • Integrated scale system
  • 3-sided hydraulic controls
  • Defibrillator tray
  • defibrillator tray/foot extender/chart surface
  • Side rail pads
  • Upright oxygen bottle holder
  • Restraint straps
