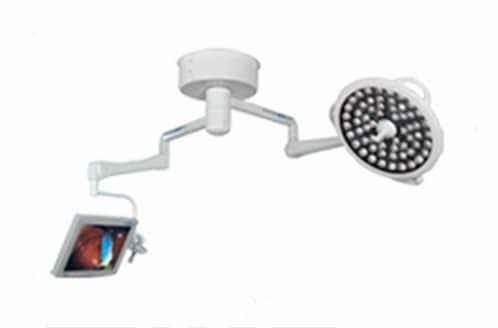

Medical Illumination System Two LED Duo w/ Monitor Arm: XLDS-S2MA

product ID d5f9519ebc98
Add to wishlist
Add to quote
SKU: d5f9519ebc98 Category:

Product Description:

Medical Illumination System Two LED Duo w/ Monitor Arm: XLDS-S2MA.  GREEN TECHNOLOGY: The energy-efficient System Two LED consumes half the electricity of its halogen counterpart. INCREASED EFFICIENCY: Long-life 50,000-hour rated LEDs alleviate the need to purchase and store replacement bulbs and eliminate procedure room downtime due to unexpected bulb burn-outs.

Additional Features: Output rated at 120,000 Lux, Kelvin color temperature of 4300°, superior shadow reduction, and designed with the unmatched MI arm system for optimal surgical site visibility and positioning. PROCEDURAL COMFORT: Using System Two LED cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights. COST SAVING: The System Two LED saves the medical facility thousands when compared to standard OR lights currently available. Please Note: The monitor is not included.  See tabs for more information.

Like to know more about Surgical Lights?  Visit Surgical Lights in our Knowledge Center to learn all about them.  Click to view Venture Medical’s Complete Catalog of Surgical Lights.

Have Questions?  Contact us today for questions or available options to fit your specific needs!

  • Green Technology
  • Consumes half the electricity of its halogen counterpart
  • Long-life 50,000-hour rated LEDs
  • Output rated at 120,000 Lux with a Kelvin color temperature of 4300°
  • Superior shadow reduction and designed
  • Unmatched MI arm system for optimal surgical site visibility and positioning (monitor not included)
  • Cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights
  • Saves the medical facility thousands when compared to standard OR lights currently available
  • Light Head Dimensions: 25.2″ Diameter x 4.75″ Deep
  • Arm (Articulated): 4.0″ Diameter (tapered) x 26.0″ Long
  • Ceiling Casting: 17.0″ Diameter x 4.7″ Deep
  • Ceiling Rod: 2.5″ Diameter x 9.0″-43.0″ Long (depending on ceiling height)
  • Duo Ceiling Mount: Approx. 104.5 lbs
  • Ceiling Mount / Extension Arm Interface Rotation: Continuous
  • Articulating / Extension Arm Interface Rotation: Continuous
  • Articulating Arm Vertical Movement: +15º – 65º
  • Articulating Arm /Yoke Interface Rotation: Continuous
  • Yoke / Lamp Head Interface Rotation: +/- 150º (300º Range)
  • Electrical Input Voltage: 100-120 VAC 50/60 Hz – Single Phase
  • LED Life: 50,000 Hours (Average)
  • Duo Light Power: 240 Watts

System Two LED Brochure  (click to view)

Available Options Sold Separately:

  • System Two LED Solo: XLDS-S2
  • System Two LED Trio: XLDS-S23
  • System Two LED Duo: XLDS-S22
  • System Two LED Trio with Monitor: XLDS-S23MA
  • System Two LED Duo with HD Video Camera: XLDS-S2VC
  • System Two LED Trio with HD Video Camera: XLDS-S23VC
