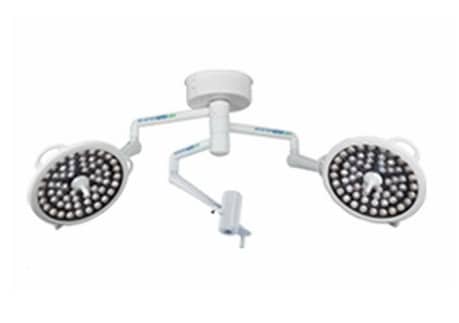

Medical Illumination System Two LED Trio w/HD Video Camera: XLDS-S23VC

product ID 8d6e7edd83a3
Add to wishlist
Add to quote
SKU: 8d6e7edd83a3 Category:

Product Description:

Medical Illumination System Two LED Trio w/HD Video Camera: XLDS-S23VC. GREEN TECHNOLOGY: The energy-efficient System Two LED consumes half the electricity of its halogen counterpart.  INCREASED EFFICIENCY: Long-life 50,000-rated LEDs alleviate the need to purchase and store replacement bulbs and eliminate procedure room downtime due to unexpected bulb burn-outs.

Additional Features:  EXCELLENCE: Output rated at 120,000 Lux with a Kelvin color temperature of 4300°, superior shadow reduction, and designed with the unmatched MI arm system for optimal surgical site visibility and positioning.  PROCEDURAL COMFORT: Using System Two LED cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights.  COST SAVING: The System Two LED saves the medical facility thousands when compared to standard OR lights currently available.  See tabs for more information.

Like to know more about Surgical Lights?  Visit Surgical Lights in our Knowledge Center to learn all about them.  Click to view Venture Medical’s Complete Catalog of Surgical Lights.

Have Questions?  Contact us today for questions or available options to fit your specific needs!

  • Green Technology
  • Consumes half the electricity of its halogen counterpart
  • Long-life 50,000-hour rated LEDs
  • Output rated at 120,000 Lux with a Kelvin color temperature of 4300°
  • Superior shadow reduction and designed
  • Unmatched MI arm system for optimal surgical site visibility and positioning
  • Cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights
  • Saves the medical facility thousands when compared to standard OR lights currently available.
  • Light Head Dimensions: 25.2″ Diameter x 4.75″ Deep
  • Arm (Articulated): 4.0″ Diameter (tapered) x 26.0″ Long
  • Ceiling Casting: 17.0″ Diameter x 4.7″ Deep
  • Ceiling Rod: 2.5″ Diameter x 9.0″-43.0″ Long (depending on ceiling height)
  • Trio Ceiling Mount Weight: Approx. 155.5 lbs
  • Ceiling Mount / Extension Arm Interface Rotation: Continuous
  • Articulating / Extension Arm Interface Rotation: Continuous
  • Articulating Arm Vertical Movement: +15º – 65º
  • Articulating Arm /Yoke Interface Rotation: Continuous
  • Yoke / Lamp Head Interface Rotation: +/- 150º (300º Range)
  • Electrical Input Voltage: 100-120VAC 50/60 Hz – Single Phase
  • LED Life: 50,000 Hours (Average)
  • Duo Light Power: 240 Watts

Medical Illumination System 2 Brochure (click to view)

Available Options Sold Separately:

  • System Two LED Solo: XLDS-S2
  • System Two LED Duo: XLDS-S22
  • System Two LED Trio: XLDS-S23
  • System Two LED Duo with Monitor: XLDS-S2MA
  • System Two LED Trio with Monitor: XLDS-S23MA
  • System Two LED Duo with HD Video Camera: XLDS-S2VC
