Product Description:

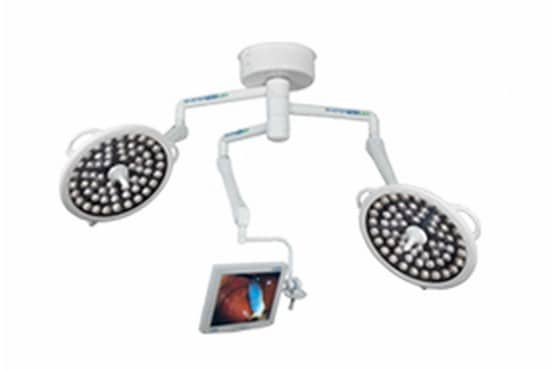

Medical Illumination System Two LED Trio w/Monitor Arm: XLDS-S23MA. GREEN TECHNOLOGY: The energy-efficient System Two LED consumes half the electricity of its halogen counterpart. INCREASED EFFICIENCY: Long-life 50,000- hour rated LEDs alleviate the need to purchase and store replacement bulbs and eliminates procedure room downtime due to unexpected bulb burn-outs.
Additional Features: Output rated at 120,000 Lux with a Kelvin color temperature of 4300°, superior shadow reduction, and designed with the unmatched MI arm system for optimal surgical site visibility and positioning. PROCEDURAL COMFORT: Using System Two LED cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights. COST SAVING: The System Two LED saves the medical facility thousands when compared to standard OR lights currently available. Please Note: The monitor is not included. See tabs for more information.
Like to know more about Surgical Lights? Visit Surgical Lights in our Knowledge Center to learn all about them.
- Green Technology
- Consumes half the electricity of its halogen counterpart
- Long-life 50,000-hour rated LED’s
- Output rated at 120,000 Lux with a Kelvin color temperature of 4300°
- Superior shadow reduction and designed
- Unmatched MI arm system for optimal surgical site visibility and positioning (monitor not included)
- Cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights
- Saves the medical facility thousands when compared to standard OR lights currently available
- Light Head Dimensions: 25.2″ Diameter x 4.75″ Deep
- Arm (Articulated): 4.0″ Diameter (tapered) x 26.0″ Long
- Ceiling Casting: 17.0″ Diameter x 4.7″ Deep
- Ceiling Rod: 2.5″ Diameter x 9.0″-43.0″ Long (depending on ceiling height)
- Trio Ceiling Mount: Approx. 155.5 lbs
- Ceiling Mount / Extension Arm Interface Rotation: Continuous
- Articulating / Extension Arm Interface Rotation: Continuous
- Articulating Arm Vertical Movement: +15º – 65º
- Articulating Arm /Yoke Interface Rotation: Continuous
- Yoke / Lamp Head Interface Rotation: +/- 150º (300º Range)
- Electrical Input Voltage: 100-120 VAC 50/60 Hz – Single Phase
- LED Life: 50,000 Hours (Average)
- Duo Light Power: 240 Watts
Medical Illumination System 2 Brochure (click to view)
Available Options Sold Separately:
- System Two LED Solo: XLDS-S2
- System Two LED Duo: XLDS-S22
- System Two LED Trio: XLDS-S23
- System Two LED Duo with Monitor: XLDS-S2MA
- System Two LED Duo with HD Video Camera: XLDS-S2VC
