Oakworks Vascular Table with Fowler

product ID VM-E08M57126

If you need the Oakworks Vascular Table with Fowler you don’t need to look any further. Give us a call or request a quote and let us help you.

Add to wishlist
Add to quote
SKU: VM-E08M57126 Categories: ,

If you need the Oakworks Vascular Table with Fowler you don’t need to look any further. Give us a call or request a quote and let us help you.

Product Description:

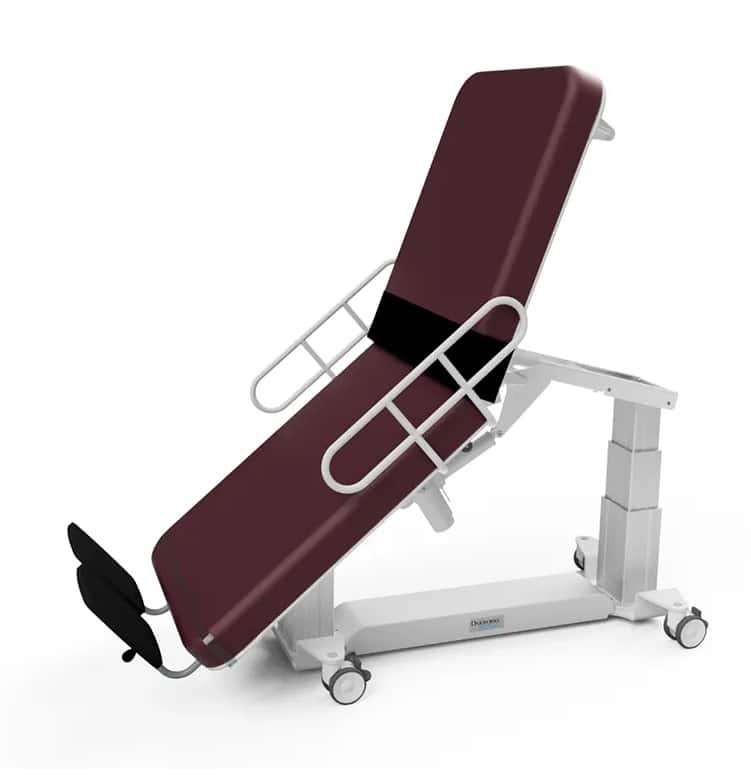

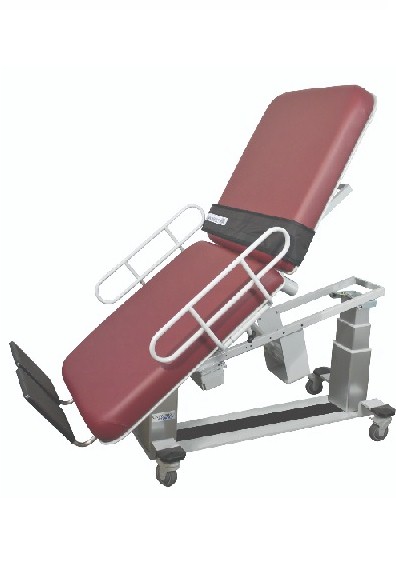

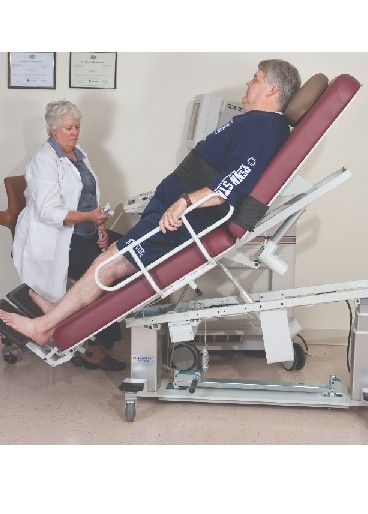

Oakworks Vascular Table with Fowler – with Feature Package.  Dual towers and electric Fowler make 70° reverse Trendelenburg a reality. Effectively standing and full weight-bearing. Furthermore, split drop footboard makes non-weight bearing scans safe and easy.  Oakwork’s Vascular Table has a bariatric patient weight capacity of 550 lbs.

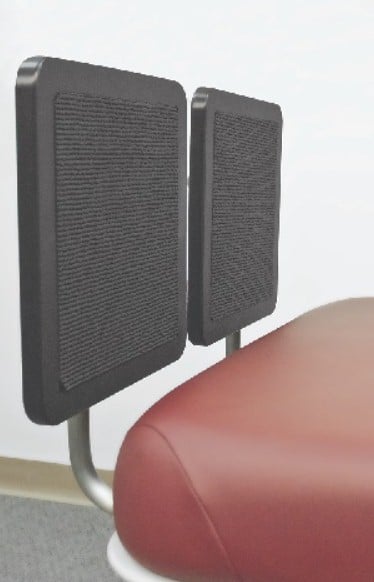

Vascular Table Features: Electric Height Range 19″ – 33″, Trendelenburg (Tilt): ±18º, and Reverse Trendelenburg (Tilt): 0-25º (40º total) + Electric Fowler = 70º.  Integrated footboard (split, drop away), Locking Casters, Side Rails (2), and 2 Patient Restraint Straps included. Additionally, elevate the upright table to reduce/prevent technologist bending to reach lower extremity veins. Headrests and pads for carotid studies provide comfort and access for patients and sonographers.  Your choice of TerraTouch upholstery colors.

Feature Package Includes Hand Control (All movements), 4 in. (10cm) locking casters, Integrated footboard (split, drop away), Paper roll holder, Patient safety strap, and Side Rails (2) 23.5 in. (60cm) long x 6 in. (15cm) tall (from the surface of the table). Additionally, comes with 3 years of parts, and a 1-year Labor Warranty. FDA Listed, cETL Approved, and CE Marked.

  • See tabs for more information.

Are you looking for a different model or feature? Click to view additional Vascular/Echocardiograph Tables.   Venture Medical also offers a wide variety of New and Completely Refurbished power tables, simply click the following link, Exam, Treatment, Procedure, Power Tables & Chairs.

At Venture Medical, we offer only the Best Quality New and Completely Refurbished Imaging, Pain Management, and C-Arm Tables – Priced to Fit Your Budget!

Are you wondering about our Refurbishing Process? Check out our blog, where we explain it all. ‘Doing it Right: Explaining the Refurbishing Process’.

  • Electric Height Range: 19” – 33”
  • Trendelenburg Tilt: ±18º
  • Reverse Trendelenburg Tilt: 40º + Electric Fowler = 70º
  • Electric Fowler
  • Locking Casters: 4″ diameter double wheel
  • Patient Weight Capacity: 550 lbs.
  • Integrated footboard (split, drop away)
  • Locking Casters
  • Patient Restraint Strap

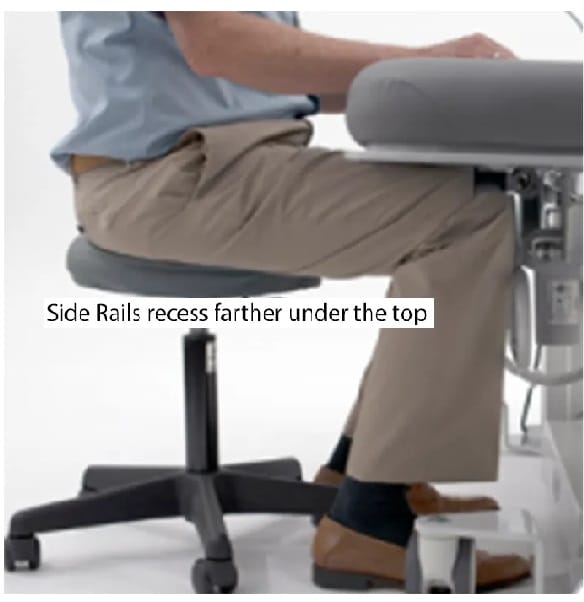

  • Side Rails (2)

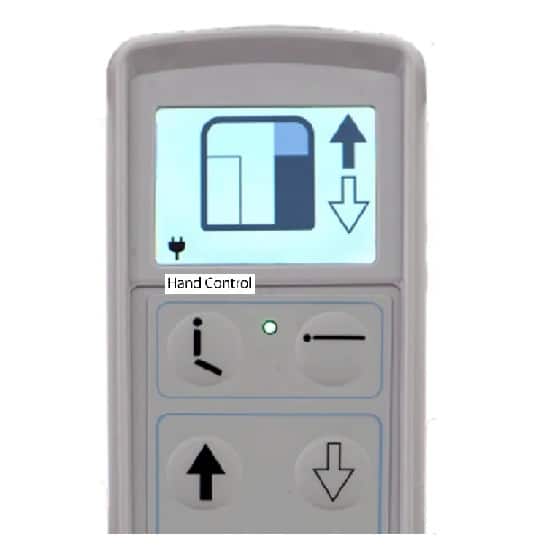

  • Hand Control (All movements)
  • Paper Roll Holder
  • Warranty: 3 Years Parts, 1 Year Labor
  • FDA Listed, ETL Approved, CE Marked
  • Terra Touch ™ Upholstery
  • Patient Weight Capacity: 550 lbs
  • Height Range: 19″- 33″
  • Width: 26″ or 30″
  • Length: 72″
  • Top: Fowler 34″, Seat 38″
  • Trendelenburg: ±18º
  • Reverse Trendelenburg: up to 70º

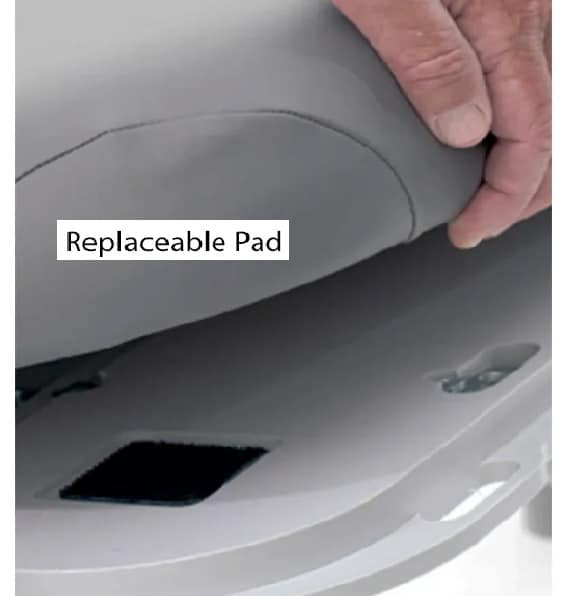

  • Padding: 3″ multi-layer
  • Upholstery: TerraTouchTM
  • Table Weight: 359 lbs
  • Warranty: 3 years parts, 1 year labor
  • Certifications: FDA listed, cETL approved, and CE marked
  • 27″w P/N: 66783
  • 30″w P/N: 64219

To View Oakwork’s Available Upholstery Colors with Names view the image in the Gallery above.

Please Note:  We strive to ensure that the colors displayed on our product imagery (online and in print) are as accurate as possible. However, due to the limitations of printers, scanners, computer monitors, and other equipment, the colors may not be accurate.

Oakworks Vascular Table with Fowler Brochure  (click to view)

Oakworks Vascular Table Video  (click to view)
