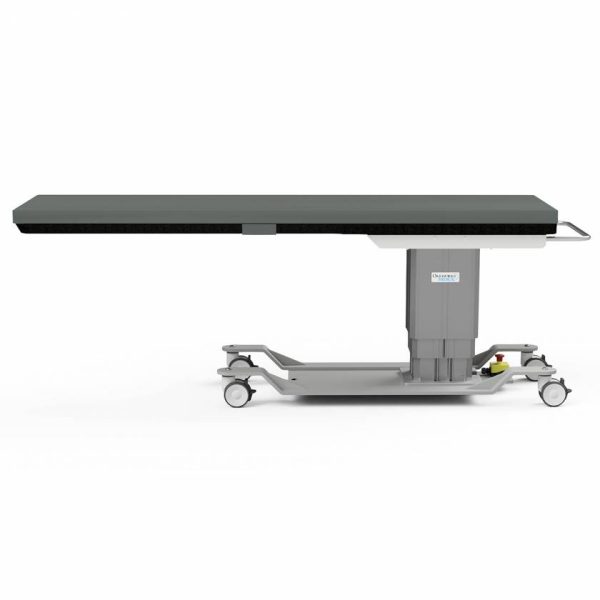

Oakworks CFPM100 Imaging Table w/Rectangular Top

product ID VM-OCFPM100R
Need Instant Advice? Talk to our experts 800-627-3215
SKU: VM-OCFPM100R Category:

Product Description:

OAKWORKS® CFPM100 Imaging Table. The CFPM100 is our newly released single-tower lift system that provides the imaging market with an exceptional value for a 500-patient weight capacity table. This table is ideal for pain management practices, surgical centers, and other multi-disciplinary medical facilities and is compatible with all mobile c-arm imaging systems.

CFPM100 Features: The 22″ – 40″ adjustable electric height range promotes safe and secure wheelchair transfer due to its super low range of 22″ while accommodating the higher ergonomic working requirements at 40″. Other technology advancements designed in this product include a new soft-touch table base material. This durable base material will protect and minimize C-Arm scrapes and damage. Built into the base is a state-of-the-art foot control that can either stay in the base for easy access for table height adjustment or the foot control can be removed from the base and placed on either side of the table to fit your needs.

Looking for a different model or feature? Click to view additional Vascular/Echocardiograph Tables.   Venture Medical also offers a wide variety of New & Completely Refurbished power tables, simply click the following link, Exam, Treatment, Procedure, Power Tables & Chairs.

At Venture Medical, we offer only the Best Quality New and Completely Refurbished Imaging, Pain Management, and C-Arm Tables – Priced to Fit Your Budget!

Are you wondering about our Refurbishing Process? Check out our blog, where we explain it all. ‘Doing it Right: Explaining the Refurbishing Process’.



  • Rectangular Top
  • A single-tower lift system
  • Electric Height Adjustment with a range of 22″ to 40″
  • Weight capacity: 500 lbs distributed evenly
  • Compatible with all mobile C-Arm imaging systems
  • Table Movement: Height Adjustment only

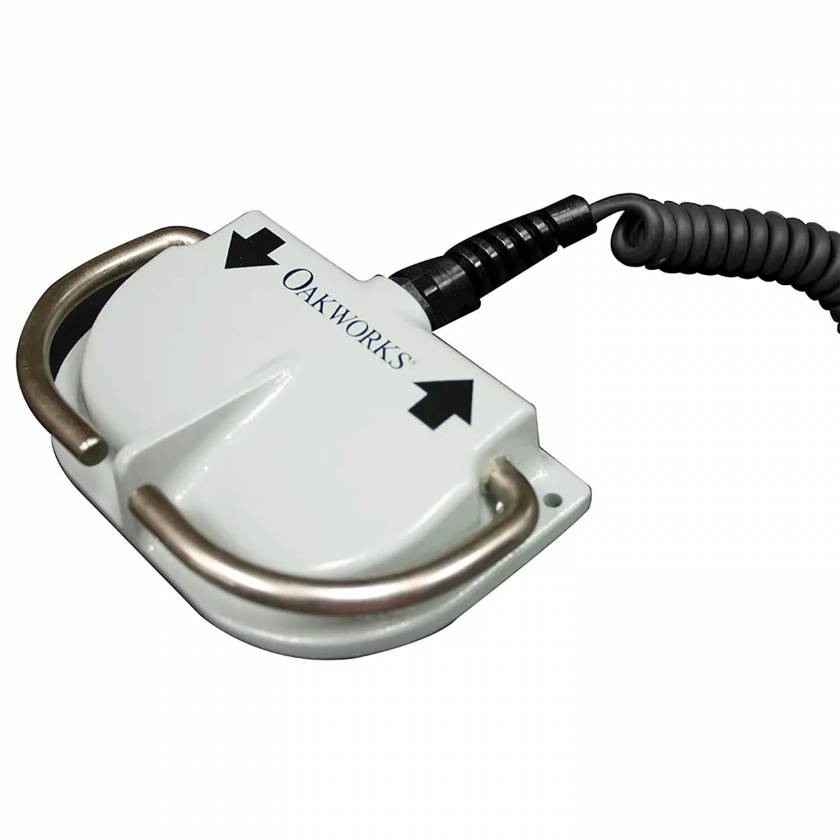

  • Foot Control
  • Superior Image Quality for Fluoroscopy Guided Procedures
  • Adjustable Electric Height Range
  • Soft-touch table base material
  • Durable base material Protects and Minimizes c-arm scrapes and damage
  • Comes standard with hand control
  • Warranty
  • Optional 2″ thick tabletop pad available
  • Included with Table: 22″ x 84″ tabletop pad along, with and Safety Strap
  • Carbon Fiber Rectangular Top Dimensions: 22″x 84″
  • Imaging Space: 56″ of Metal-Free Space
  • Patient Weight Capacity: 500 lbs distributed evenly
  • Electronics: 110 Volt Motor
  • 1 Foot control
  • 4″ Locking Casters: Locking / Unlocking casters for mobile or permanent positioning
  • Hand Rail
  • Table Weight: 343 lbs
  • Frame: Single Tower Steel Base
  • P/N: 60011-T01
  • Warranty: 3 years parts, 2 years labor

Oakworks CFPM100 Brochure (click to view)

Optional Accessories Sold Separately:
