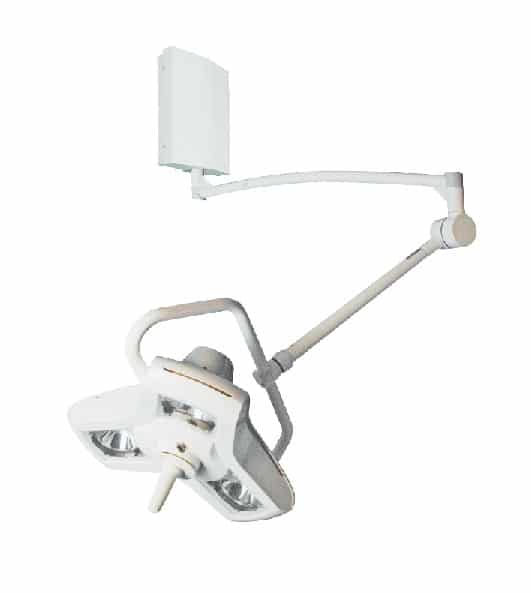

Burton AIM-100 Wall Model: A100W

Need Instant Advice? Talk to our experts 800-627-3215

Product Description:

Burton AIM-100 Wall Model: A100W. Providing both amazing value and unparalleled aesthetics, Burton’s Burton AIM-100™ Wall Model Burton A100W also boasts limitless rotation on ceiling mounts (a feature previously available only on OR-type lights). Highest intensity illumination, very smooth focus, and superior maneuverability.

Burton AIM-100W Features:  A longer arm system ensures that the light can be positioned in the widest range of positions possible, making the AIM-100® ideal for outpatient procedures in a variety of settings and practices, including trauma centers, ERs, ambulatory surgery centers, ICUs, physician offices, clinics, plastic surgery, dermatology, and ophthalmology.  See tabs for more information.

Like to know more about Surgical Lights?  Visit Surgical Lights in our Knowledge Center to learn all about them.  Click to view Venture Medical’s Complete Catalog of Surgical Lights.

Have Questions?  Contact us today for questions or available options to fit your specific needs!

  • High intensity of 14,800 fc (160,000 lux) at 24″ and 5800 fc (63,000 lux) at 1 meter
  • 3700° K color temperature offers natural and true coloring
  • Uses three 35-watt quartz halogen bulbs – each rated with a 2,000-hour bulb life. Bulbs wired in parallel for continuous operation
  • Compact 20″ (51 cm) diameter light head
  • Extremely smooth focus mechanism with center sterilizable handle.
  • 360° limitless arm and mounting system rotation around vertical axes (on single ceiling models)
  • The cool operation for long hours of use
  • High CRI (Color Rendering Index) of 97
  • 120-volt standard; 100/240-volt models available
  • 5-year limited warranty
  • UL 60601-1/ 60601-2-41 Certified
  • Illuminance:* 14,800 FC (160,000 Lux) at 24″ and 5800 fc (63,000 Lux) at 1 meter
  • Color temperature: 3700° K
  • The diameter of the light head: is 20″ (51 cm)
  • Light field diameter: 9.6″ – 12″ (25 cm – 31 cm)
  • The depth of Illumination: 47″ (1.2 m)
  • Focusing: Adjustable by rotating the center handle CRI 97
  • Rotation: 360° (limitless) on single-ceiling models
  • Sterilizable handle: Locks into position with one hand
  • Number of bulbs: 3
  • Light sources (halogen): 35 W IRC, 12 volts, hi-pin
  • Rated life of halogen lamp: 2,000
  • Swivel radius of lamp housing-ceiling mounted: 71″ max.*
  • * Height movement of lamp housing-ceiling mounted: 41″ vertical movement
  • Minimum ceiling height/maximum ceiling height: 7 ft./12 ft.
  • Power: 116 Watts Electrical system standards: UL 60601
  • Total weight: 35 lbs. (floor version), 34 lbs. (single ceiling version)

Burton AIM-100 Brochure  (click to view)

Available Options Sold Separately:
