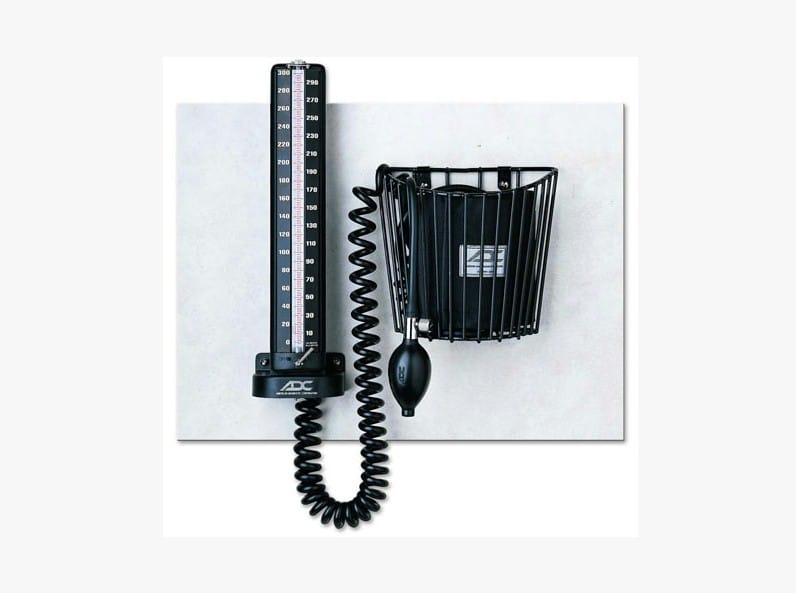

ADC Diagnostix™ 952B Series Swivel-Mount Mercurial Sphygmomanometer

Category: Blood Pressure Units - Mercury Sphygmomanometers

Description

Product Description:

ADC Diagnostix™ 952B Series Swivel-Mount Mercurial Sphygmomanometer 952B Series. A contemporary swivel-mount wall mercurial sphygmomanometer that meets the quality and safety needs of the institutional user. The 952B features rugged housing constructed of virtually indestructible ABS and die-cast aluminum. The graduated unbreakable plastic cartridge tube features a massive 5.00 mm inside bore for unrestricted, friction-free mercury flow.

The 952B has oversized white numerals on a contrasting black scale combined with high-visibility red graduations for easy reading. The EZ-Tube™ System allows safe, simplified maintenance of the cartridge tube or top cap filters and additional safety provided by the locking reservoir. The Wall bracket swivels through a 110° arc for enhanced visibility. Adcuff™ black nylon cuff with ADC’s proprietary Size Guide™ marking system prevents miss-cuffing. Dip molded latex inflation bladder, bulb, and Adflow™ chrome-plated brass air release and end valve with filter screen protection. Complete with vinyl-coated wire cuff basket, 8-foot length (when extended) of coiled latex tubing, all mounting hardware, and comprehensive owner’s manual. Assembled, inspected, and packaged in the U.S.A. from foreign components. See tabs for more information.

Note: This product has been Discontinued; call for availability.

Rugged housing constructed of a combination of virtually indestructible ABS and die-cast aluminum
Graduated unbreakable plastic cartridge tube
Massive 5.00 mm inside bore for unrestricted, friction-free mercury flow
White oversized numerals on a contrasting black scale
High visibility red graduations for easy reading
EZ-Tube™ system allows safe, simplified maintenance of the cartridge tube or top cap filters
Additional safety is provided by the locking reservoir
Wall bracket swivels through 110° arc Adcuff™ black nylon cuff with ADC’s proprietary Size Guide™ marking system prevents mis-cuffing
Dip molded latex inflation bladder and bulb
Adflow™ chrome-plated brass air release and end valve with filter screen protection
Complete with vinyl-coated wire cuff basket
8-foot length (when extended) of coiled latex tubing
Mounting hardware
Comprehensive owner’s manual
Assembled, inspected, and packaged in the U.S.A. from foreign components
Lifetime warranty on cartridge tube

Sphyg Type: Wall Merc
Gauge: NA
Gauge Warranty: Lifetime
Sphyg Accuracy: +/-3 mmHg @ 50ºF (10ºC) – 104ºF (40ºC)
Sphyg Accuracy: at extended temperature range +/-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC)
Storage Temp: -4ºF (-20ºC) – 131ºF(55ºC)
Valve Type: ADFLOW
Number of tubes: 2 Tubes
Cuff type: ADCUFF
Cuff sizes: Thigh, Large Adult, Adult, Small Adult, Child, & Infant
Cuff Range: 23-40 cm
Inflation Warranty: 3 Year

Many states and municipalities have restricted or banned, in their entirety, the sale of products containing mercury, including mercury sphygmomanometers. The link below provides information about current ordinances. Please contact your local EPA branch for guidance on restrictions that may exist in your state.

Mercury Law Table (click to view)

Available Color for the 952B Series for all Sizes: Hover the mouse over the color button shown below to view the color code to order.
